Step: 1
Range: -10000 - +10000
Default: 0
7.5.10 Reg CMP Off [-]
Limit to open the LBO SpeedSwitch.
Step: 1
Range: -10000 - +10000
Default: 0

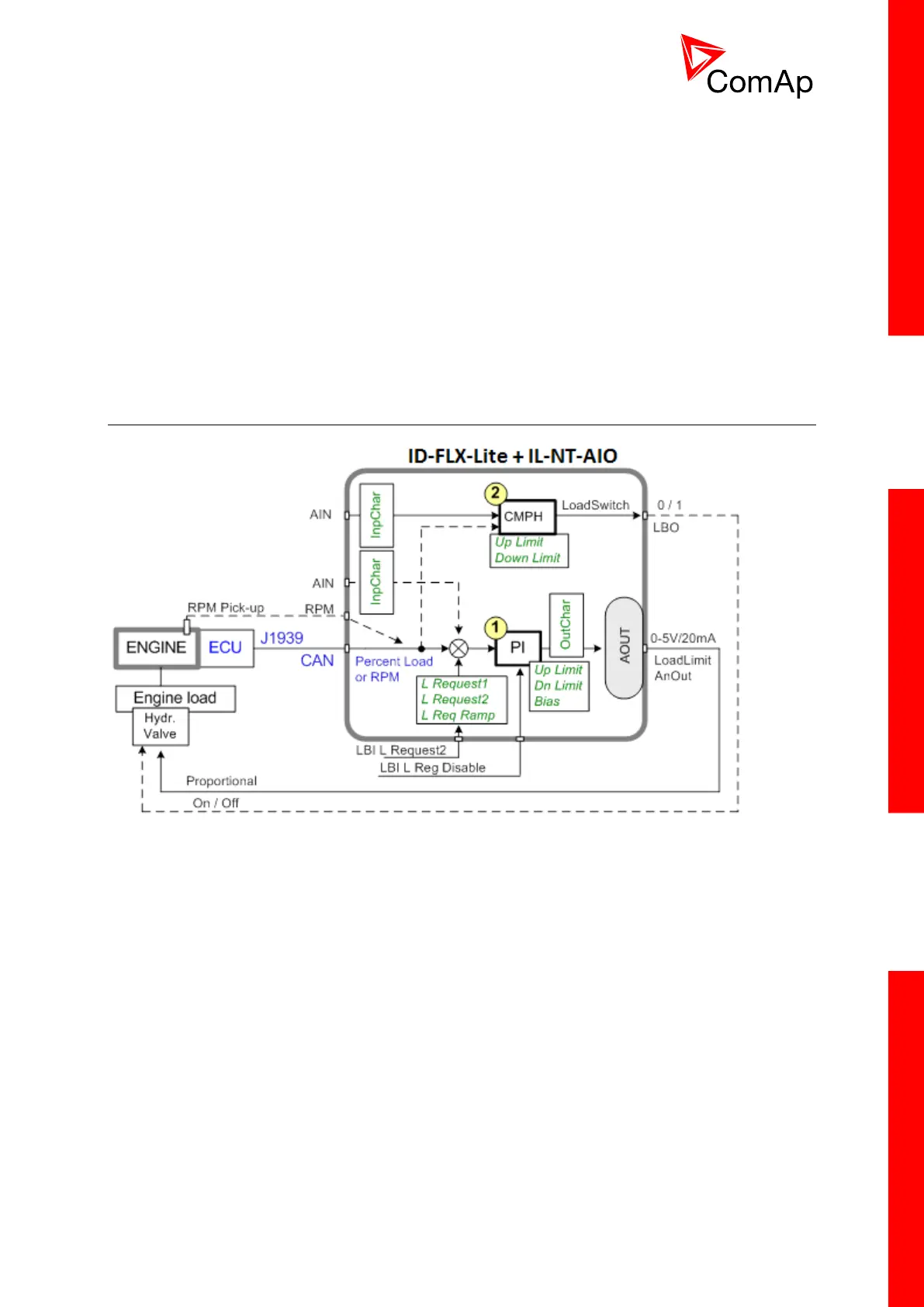

7.6 Load limit
7.6.1 Load input [ RPM, ECU:Load, CU:AI1, CU:AI2, CU:AI3,
CU:AI4, CU:AI5, CU:AI6, CU:AI7, CU:AI8,
CU:AI9, AIO:IA1, AIO:AI2, AIO:AI3, AIO:AI4
This setpoint is for Load limit PI loop analog input selection. Source can be adjusted from controller
RPM pick-up, ECU, analog inputs or from extension module inputs.
Default state: RPM
7.6.2 Load Bias [-]
Constant Load limit PI regulator output. Load Bias is activated when
 Engine Sd protection is activated
 LBI LoadRegDisable = closed
 Load input value is invalid (Sensor Fail)
