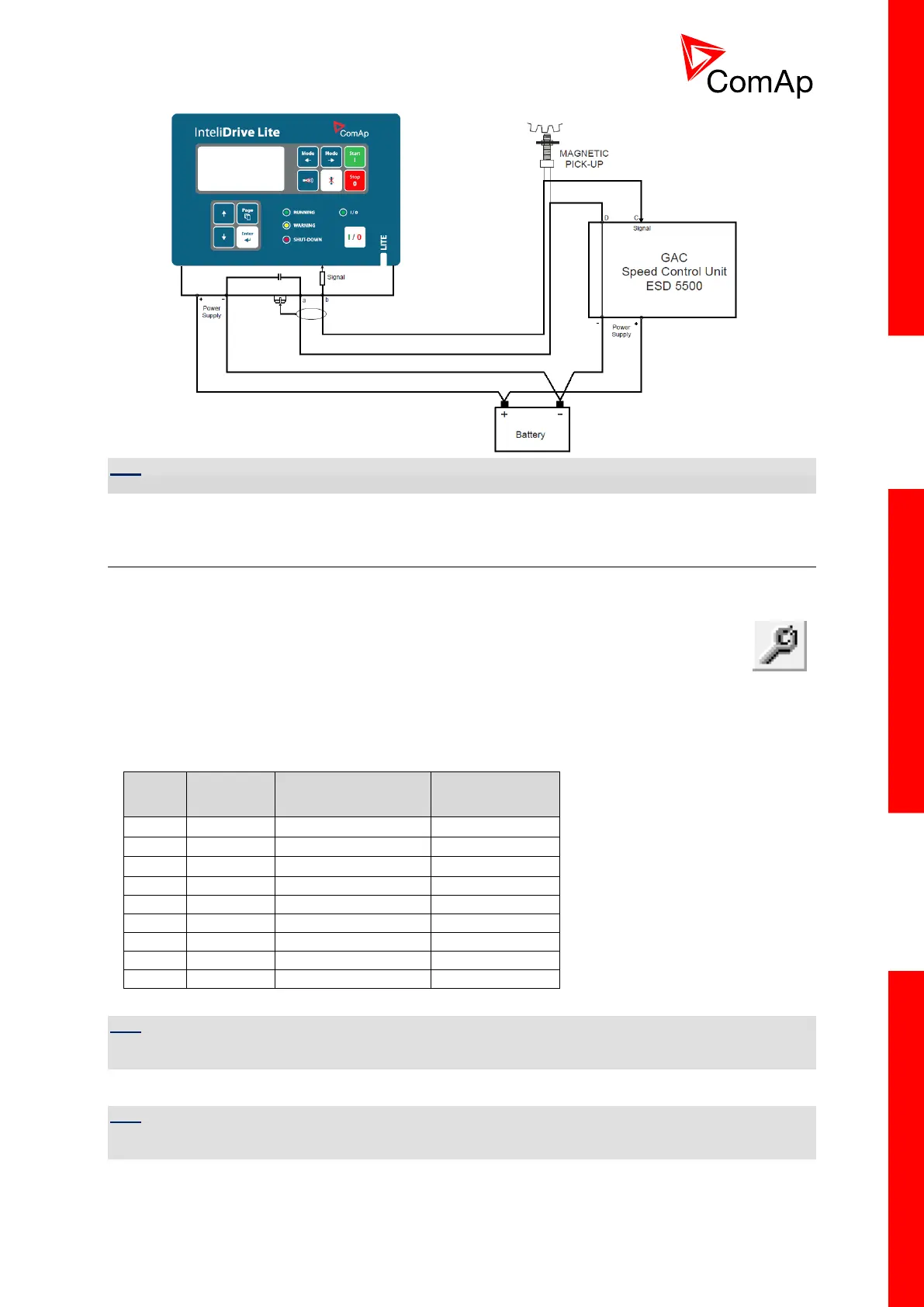

ComAp InteliDrive Lite Reference Guide

InteliDrive Lite, SW version 1.9
ID-FLX-Lite-1.9r1 Reference Guide.pdf, ©ComAp – August 2015
37
HINT
If RPM > 2 then the controller is in the state Not ready and the engine will not be allowed to start.
4.2 Analog inputs
On the InteliDrive Lite controller nine analog inputs are available. See the two tables here bellow with
specific characteristics.
All here mentioned properties can be modified by LiteEdit PC tool only, in the window Modify
4.2.1 Table of controller analog inputs
Input
Range
Default use
Configurability
of default use
AIN1
0 - 2,4k
Oil pressure
NO
AIN2
0 - 2,4k
Engine temperature
YES
AIN3
0 - 2,4k
Fuel level
YES
AIN4
0 - 40V
Not used - free
YES
AIN5
0 - 40V
Not used - free
YES
AIN6
0 - 10V
Not used - free
YES
AIN7
0 - 10V
Not used - free
YES
AIN8
0 - 10V
Not used - free
YES
AIN9
0 - 10V
Not used - free
YES
HINT
The nominal range of Analog inputs measuring resistivity is 0- 2,4 kOhm, nevertheless the input is
able to measure up to 15 kOhm, but with lower precision.
HINT
When Engine Control Unit is connected, it is possible to read InteliDrive Lite Analog inputs values
AIN1, 2, 3 from CAN bus (J1939).
