Troubles with connection:
There are few reasons why remote display can not connect with master controller:
1. Not supported type of controller connected (Eg. IGS-NT, ID-DCU, IC-NT, IGS-CU, etc.)
2. Not supported firmware in master controller
3. Configuration table error in master controller
4. Wrong settings of setpoint COMx Mode in master controller
5. Wrong connection, wiring, communication fail
Communication lines:
It is connected with the controller via IL-NT-RS232 communication modules using RS232 line (up to
10m). Longer distances (up to 1200m) are possible using IL-NT-RS232-485 communication module or
when RS232/RS485 converters are used.
It is possible to make a RS232 direct connection with IL-NT-RS232 module on one side and IL-NT-
RS232-485 module on the other side.
3.6.2 IGL-RA15

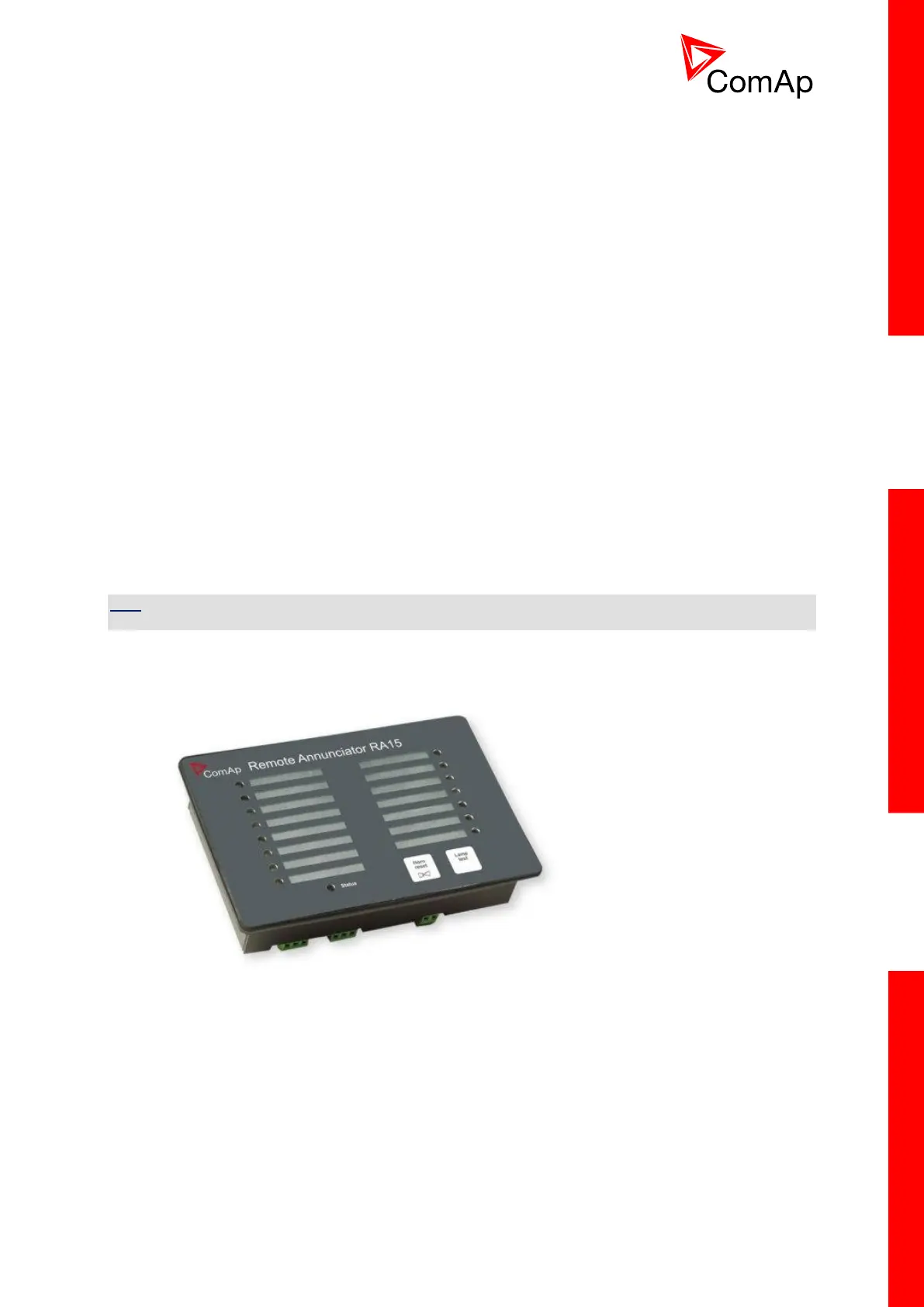

The remote announciator IGL-RA15 can be connected to the InteliDrive unit via CAN bus. Any of the
binary outputs can be configured (using LiteEdit) to each LED diode on the RA15. The module can be
also enabled or disabled using LiteEdit.
If IGL-RA15 remote announciator is not communicating with a controller via CAN bus, it activates a
warning.
HINT
See the documentation of IGL-RA15 for the technical description.
