ComAp InteliDrive Lite Reference Guide

InteliDrive Lite, SW version 1.9
ID-FLX-Lite-1.9r1 Reference Guide.pdf, ©ComAp – August 2015
105
Default: 0.0RPM
BI3
RPM IN
Basic settings:
Gear BoxRatio
0
0,1 to 5,0
Engine protect:
RPM diff Sd
RPM diff Wrn
RPM diff Del
GearBoxRatio=0
GearBoxRatio=0,1 to 5,0
RPM-BI3 Underspeed
GearBox check
Basic settings:
Gear Teeth3
Basic settings:
Gear Teeth
RPM
RPM-BI3
Engine protect:
RPM diff Sd
RPM diff Wrn
RPM diff Del

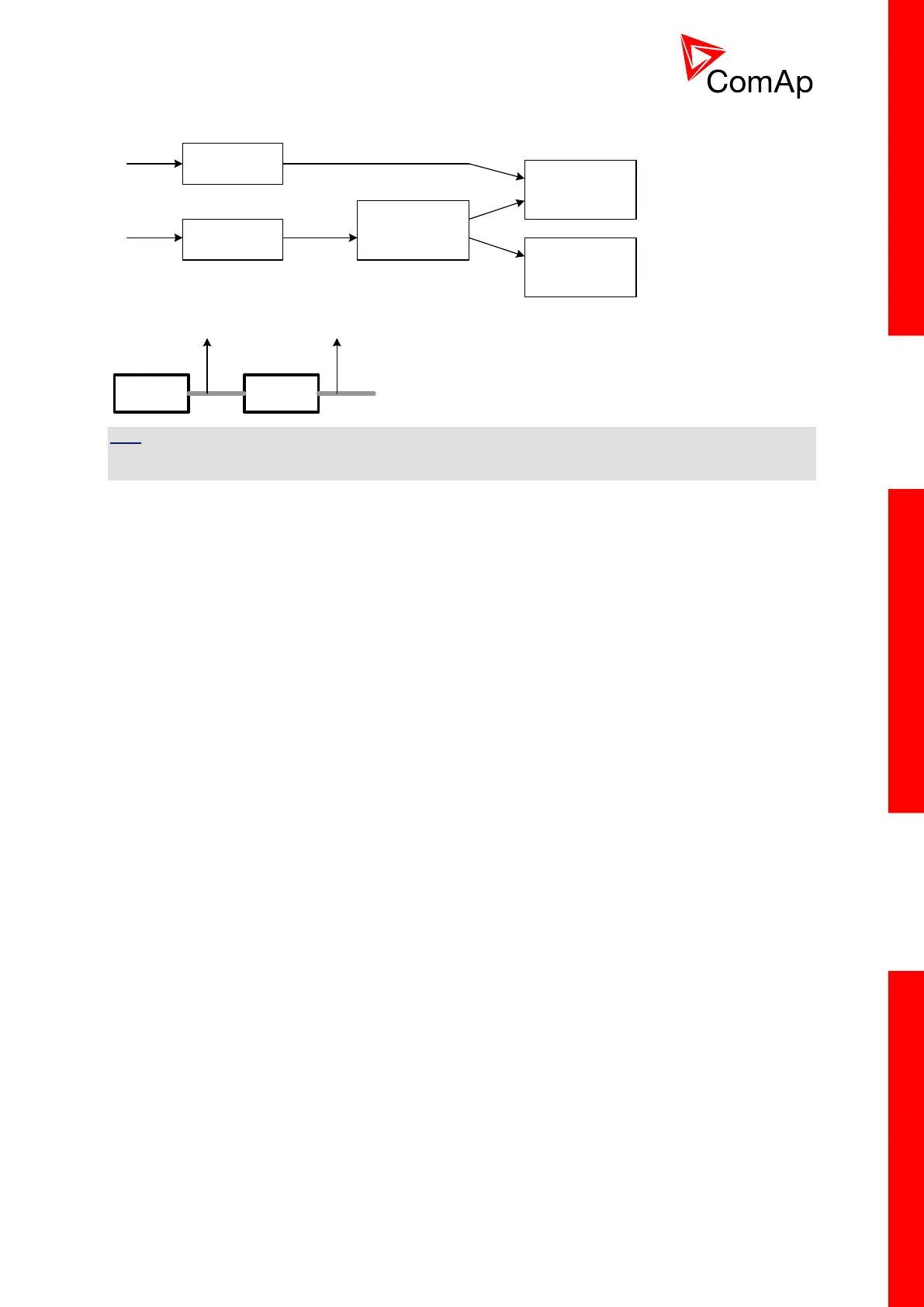

Engine Gear box
RPM RPM-BI3
HINT
The RPM-BI3 measuring and corresponding protections are switched off when Basic setting:
GearTeethBI3 = 0. In this case BI3 operates as standard Binary input.
7.7.69 RPMdiff Sd [RPM]
RPM-BI3 Sd underspeed protection limit or Sd difference limit between RPM-BI3 and RPM transferred
via GearBoxRatio. See description in GearBoxRatio setpoint. In alarm list appears text Sd RPMdiff.
Step: 1RPM
Range: 1 - 1000RPM
Default: 1000RPM
7.7.70 RPMdiff Wrn [RPM]
RPM-BI3 Wrn underspeed protection limit or Wrn difference limit between RPM-BI3 and RPM
transferred via GearBoxRatio. See description in GearBoxRatio setpoint. In alarm list appears text
Wrn RPMdiff
Message: Wrn RPMdiff
Step: 1RPM
Range: 1 – 1000RPM
Default: 1000RPM
7.7.71 RPMdiff delay [s]
Delay for RPMdiff protections above. See description in GearBoxRatio setpoint.
Step: 1s
Range: 0 - 600s
Default: 5s
7.7.72 BIN1 Prot Del…BIN7 Prot Del [s]
Seven setpoints are dedicated for separately adjustment of the delay for each of binary inputs
according to the Class B protection standard.
