ComAp InteliDrive Lite Reference Guide

InteliDrive Lite, SW version 1.9
ID-FLX-Lite-1.9r1 Reference Guide.pdf, ©ComAp – August 2015
64
6.9.2 Functions 1 and 2 setpoints
Load limit
Values
Load Input
ECU: RPM, Load,
CU: AI1-AI9,
AIO: AI1-AI4
Load Bias
0 - 10000 [ - ]
LoadRequest 1
± 10000 [ - ]
LoadRequest 2
± 10000 [ - ]
LoadReq Ramp
1 - 10000 [ - ]
LoadUpLimit
0 - 10000 [ - ]
LoadDnLimit
0 - 10000 [ - ]
Load Gain
0,0 ± 200,0%
Load Integral
0,0% - 100,0%
Load CMP Input
ECU: RPM, Load,
CU: AI1-AI9,
AIO: AI1-AI4
Load CMP Off
± 10000 [ - ]
Load CMP On
± 10000 [ - ]
NOTE:
For more information see chapter Setpoints.
6.9.3 Functions 1 and 2 examples
 General PI control loop
 Engine Load limitation with analog output
 General comparator
 Engine Load limitation with On/Off output
 Speed switch

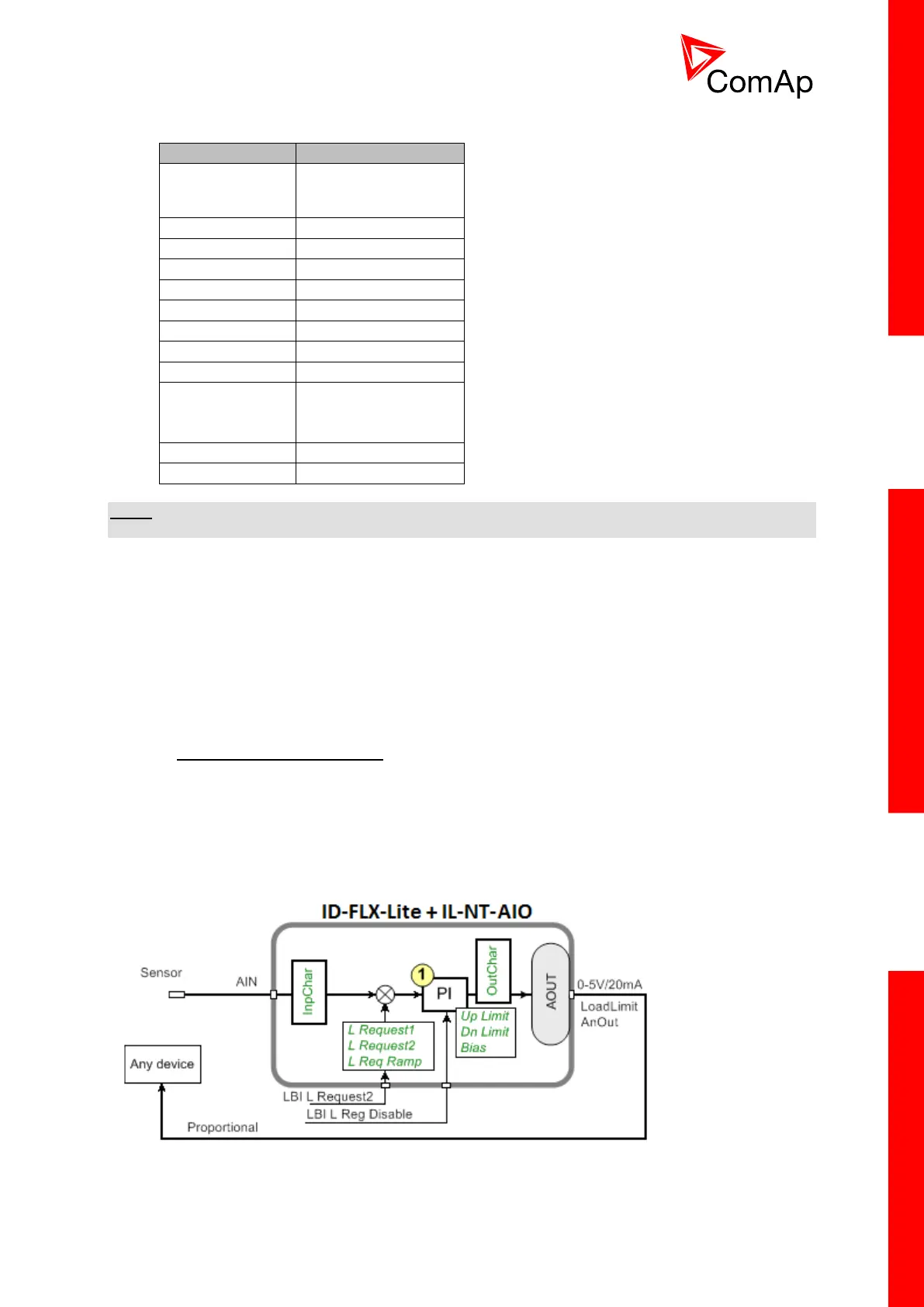

6.9.3.1 General PI control loop
Purpose: PI control of any value.
Description: PI detects the difference between actual and requested value and changes the output to
keep the controlled value on the limit. Can be used PI in function 1 or 3
Function requires plug-in module with Analog output.
