ComAp InteliDrive Lite Reference Guide

InteliDrive Lite, SW version 1.9
ID-FLX-Lite-1.9r1 Reference Guide.pdf, ©ComAp – August 2015
44

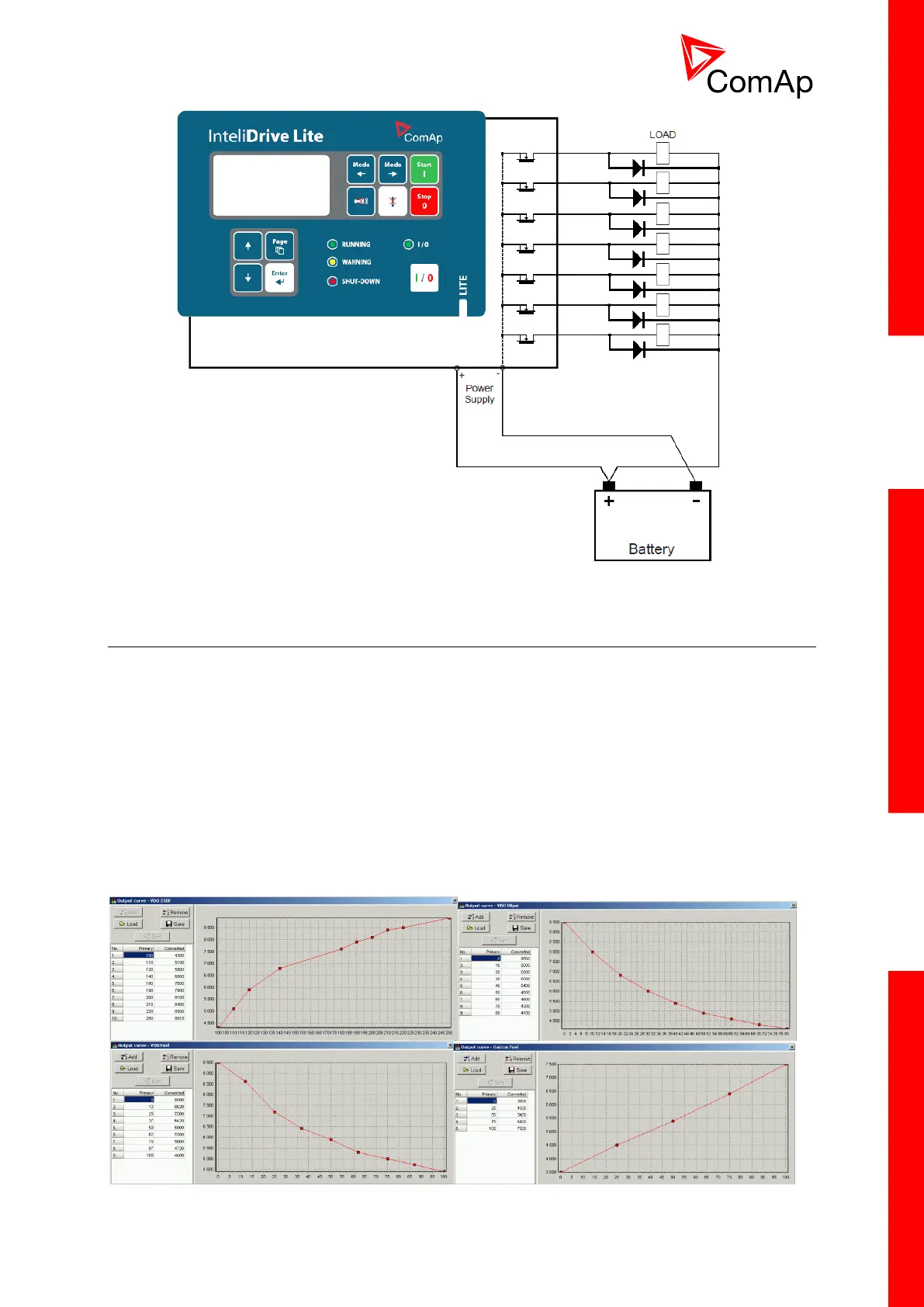

4.4 Analog outputs
First option is extension plug-in card IL-NT AOUT8. This card provides eight Pulse-With-Modulation
(PWM) outputs. These are intended to drive VDO style analog gauges. This is to provide visual
indication of typically ECU values without installing additional sensors on the engine. PWM signal
emulates sensor which would be typically mounted on the engine.
Second option is extension plug-in card IL-NT-AIO. This card provides one current or voltage or PWM
output.
Any value from controller may be configured to the outputs. Use LiteEdit PC tool to configure
corresponding sensor/gauge curve and value selection.
4.4.1 Default analog output curves
