Reg Input
CU: AI1-AI9
AIO: AI1-AI4
RPM-BI3
Reg Bias
0 - 10000
Request1
±10000
Request2
±10000
Reg Gain
± 0,0 - 200,0%
Reg Integral
+ 0,0% - 100,0%
Reg CMP Input
CU: AI1-AI9
AIO: AI1-AI4
RPM-BI3
Reg CMP Off
± 10000 [ - ]
Reg CMP On
± 10000 [ - ]
NOTE:
For more information see chapter Setpoints.
6.10.3 Functions 3 and 4 examples
 Pressure by RPM control via J1939
 Pressure by RPM control via analog output

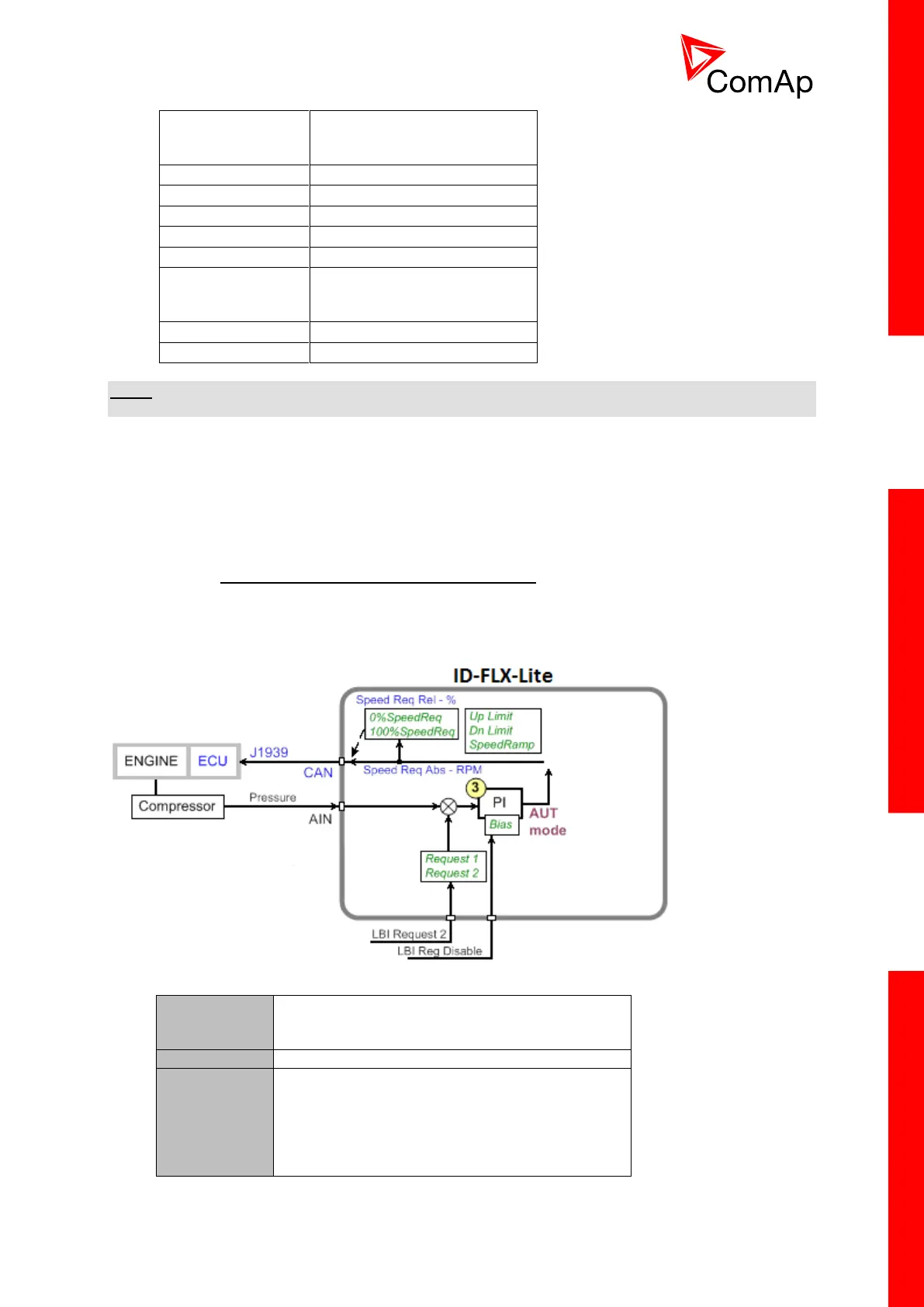

6.10.3.1 Pressure by RPM control via J1939
Actual pressure is measured via Analog input, compared with Requested value and the PI (function 3)
output controls the engine RPM via J1939.
Input
Analog input
Binary input: Request 2 (optional)
Binary input: R Reg Disable (optional)
Output
Analog output: Speed Request
Setpoints
Regulator: Reg Input
Reg Bias
Request
Request 2
Reg Gain
Reg Integral
