Engine params: MinSpeedLim
MaxSpeedLim
Speed Ramp
HINT
Take care if the Speed request in AUT mode is not limited by Engine params: Speed ramp.

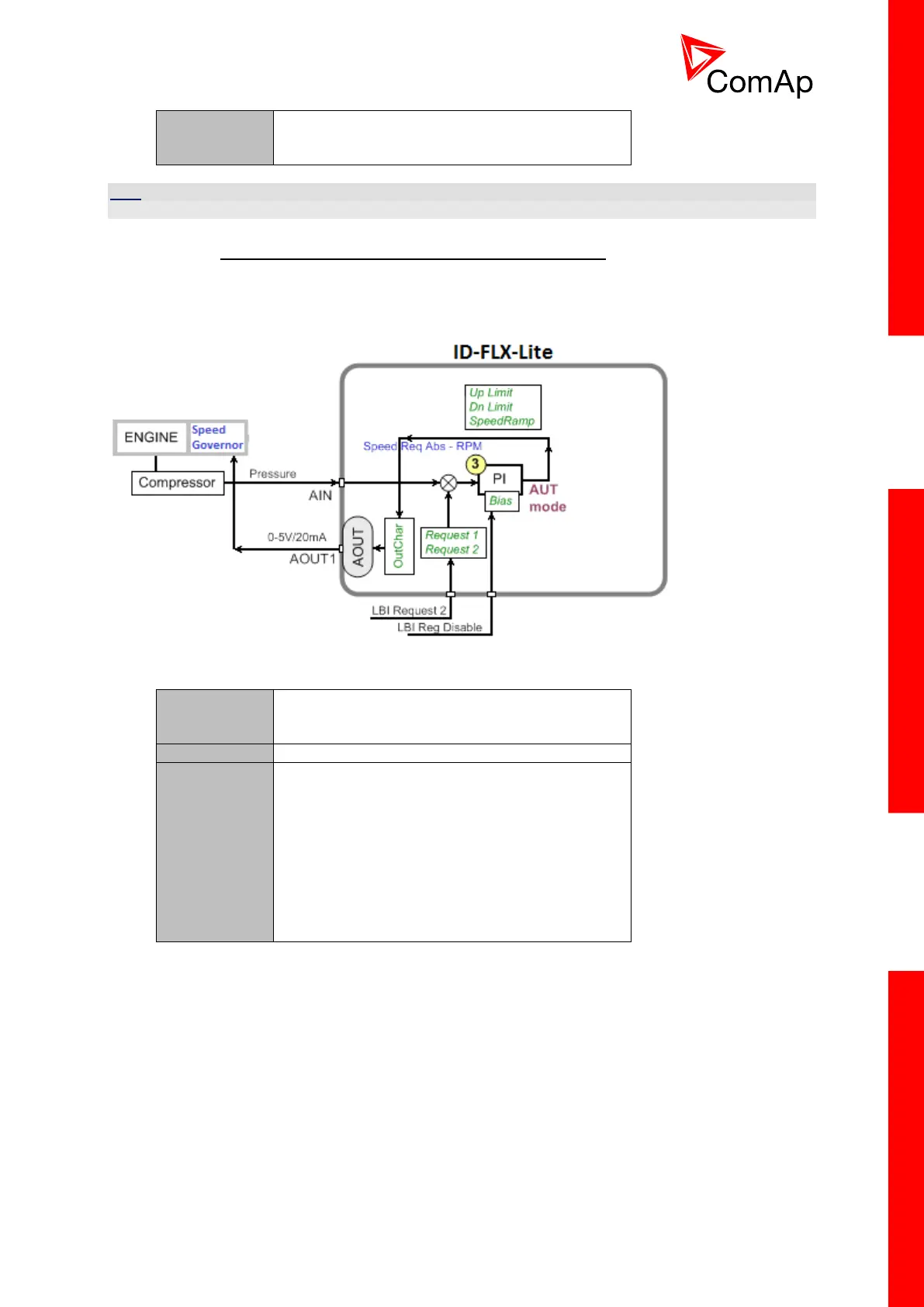

6.10.3.2 Pressure by RPM control via Analog output
Actual pressure is measured via Analog input, compared with Requested value and the PI (function 3)
output controls the engine RPM via Analog output.
Input
J1939 – Actual Load in %
Binary input: L Request 2 (optional)
Binary input: Reg Disable (optional)
Output
Analog output: Speed request
Setpoints
Load limit: Load Input = Load
Load Bias = 5000
Load Request = 80
Load Request 2 = 100
Load ReqRamp = 80
Load UpLimit = 9000
Load DnLimit = 1000
Load Gain = 50
Load Integral = 80
Load Ramp = 5000
