ComAp InteliDrive Lite Reference Guide

InteliDrive Lite, SW version 1.9
ID-FLX-Lite-1.9r1 Reference Guide.pdf, ©ComAp – August 2015
25

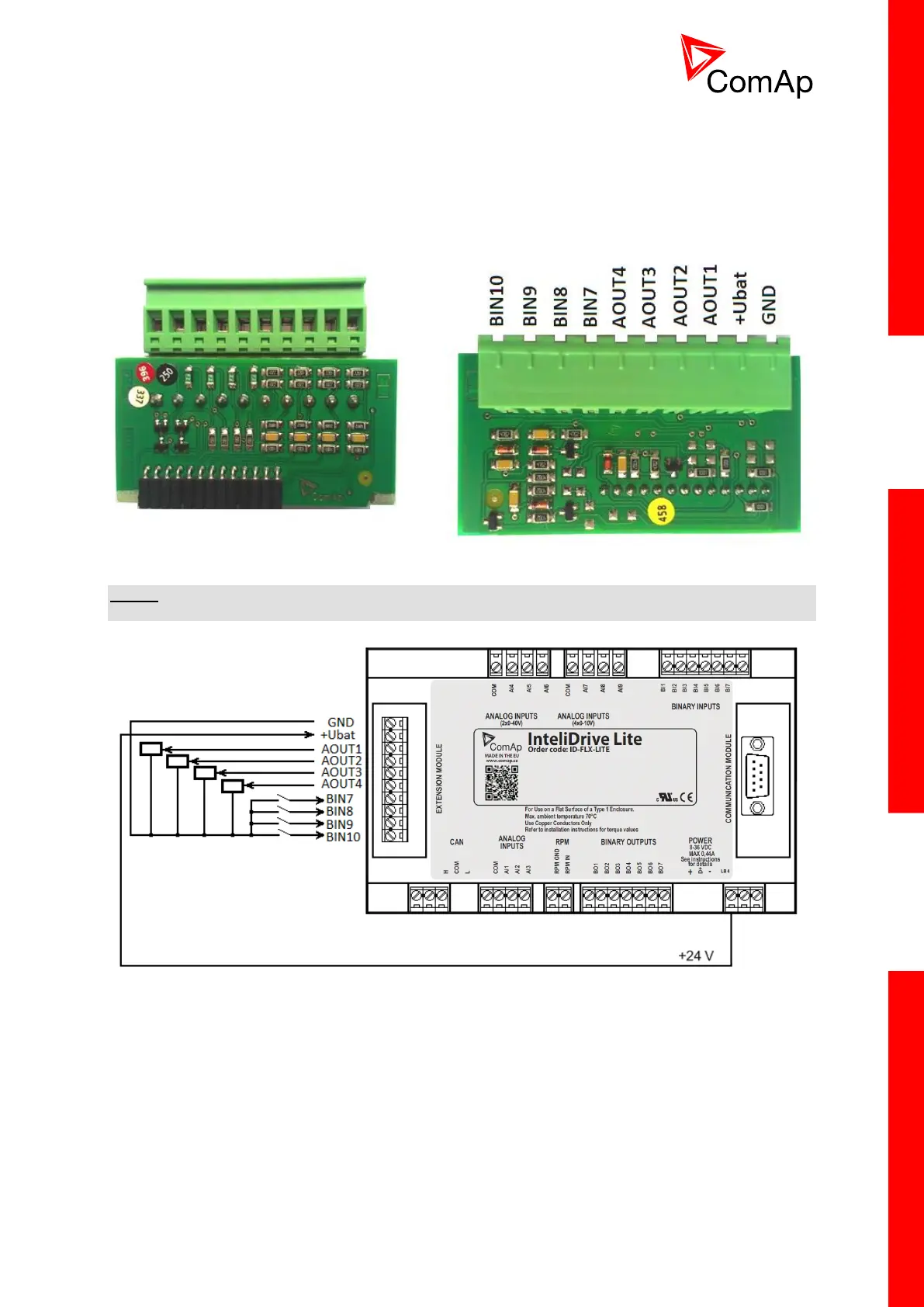

3.4.4 IL-NT IO1
IL-NT IO1 is optional plug-in card. Through this card controller can drive up to 4 propotional valves
and to use 4 additional binary inputs. The 0V (GND) terminal is internally wired with battery minus
internally, the 12-24V (+Ubat) terminal is wired to battery plus power supply of InteliDrive Lite
controller.
There should be, not more than 1V, lower voltage compare to adjusted % of +Ubat voltage.
NOTE:
Analog output shorted to ground more than one second can damage the output circuit.
3.4.5 IL-NT BIO8
IL-NT BIO8 is optional plug-in card. Through this card controller can use up to 8 additional binary
inputs or outputs. At least one Batt- terminal has to be connected to battery minus power supply of
InteliDrive controller, if at least one binary output is configured. In case more than 4 binary outputs are
configured is necessary to connect both Batt- terminals.
