CDM-840 Remote Router MN-CDM840
Ethernet-based Remote Product Management Revision 3
6–69
Interface / Router / Management Counters
For each section, click [Refresh] to update the section with its latest available statistics.
6.3.4.1.3 Status | Statistics | Compression
The Tx Header and Payload Compression statistics are functional only when Tx
Header and/or Payload Compression are enabled. Use the Configuration | WAN |
Compression page (Sect.
6.3.3.2.5) to enable or disable Compression operation.
Use this page to view read-only cumulative WAN, Payload Compression, and Header
Compression statistics.

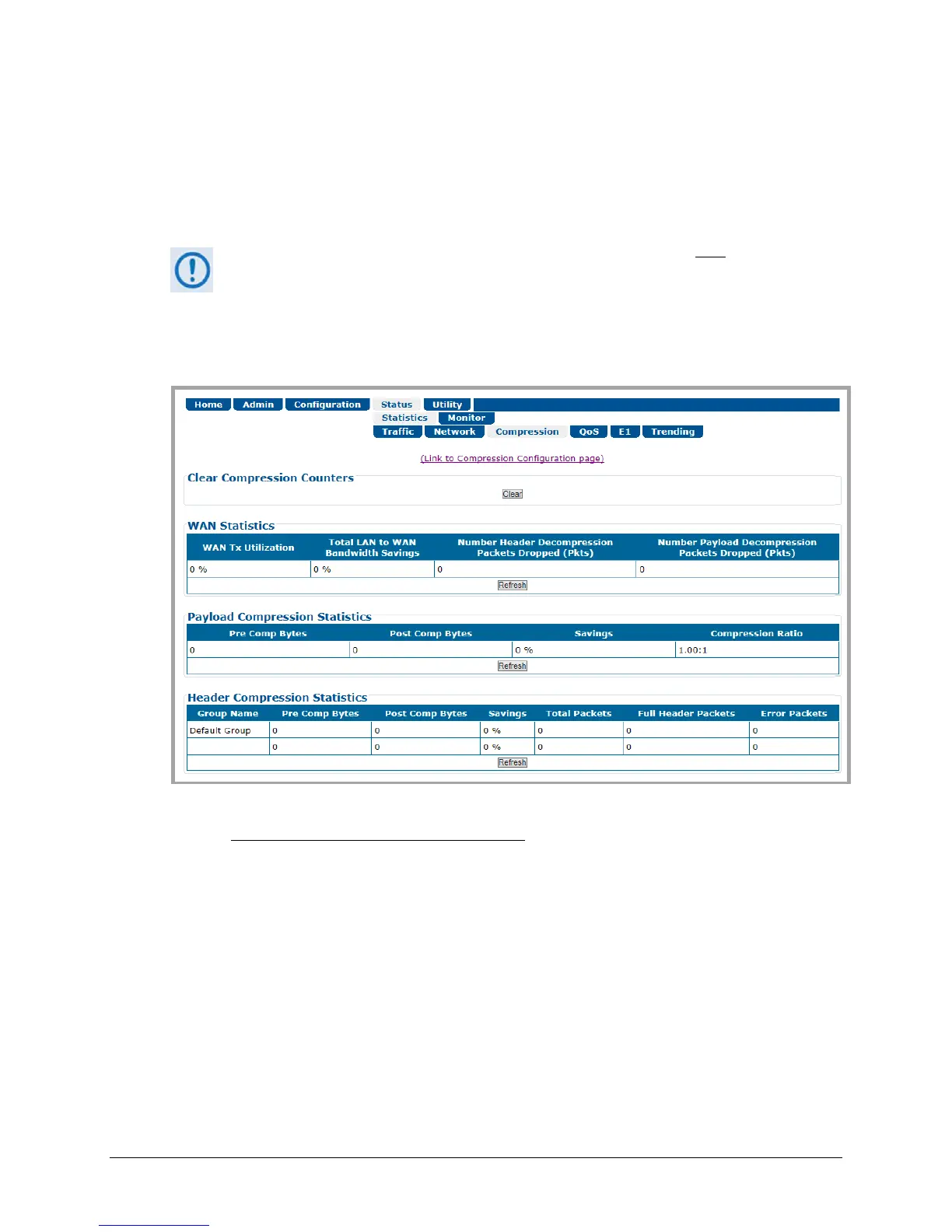

Figure 6-36. Status | Statistics | Compression Page
Click the (Link to Compression Configuration page) hyperlink to access the Configuration |
WAN | Compression page (Sect.
6.3.3.2.5).
Clear Compression Counters
Click [Clear] to clear all compression statistics from the buffer.
WAN / Payload Compression / Header Compression Statistics
Click [Refresh] to update each page section with its latest available statistics.
