CDM-840 Remote Router MN-CDM840
Rear Panel Connections Revision 3
3–7

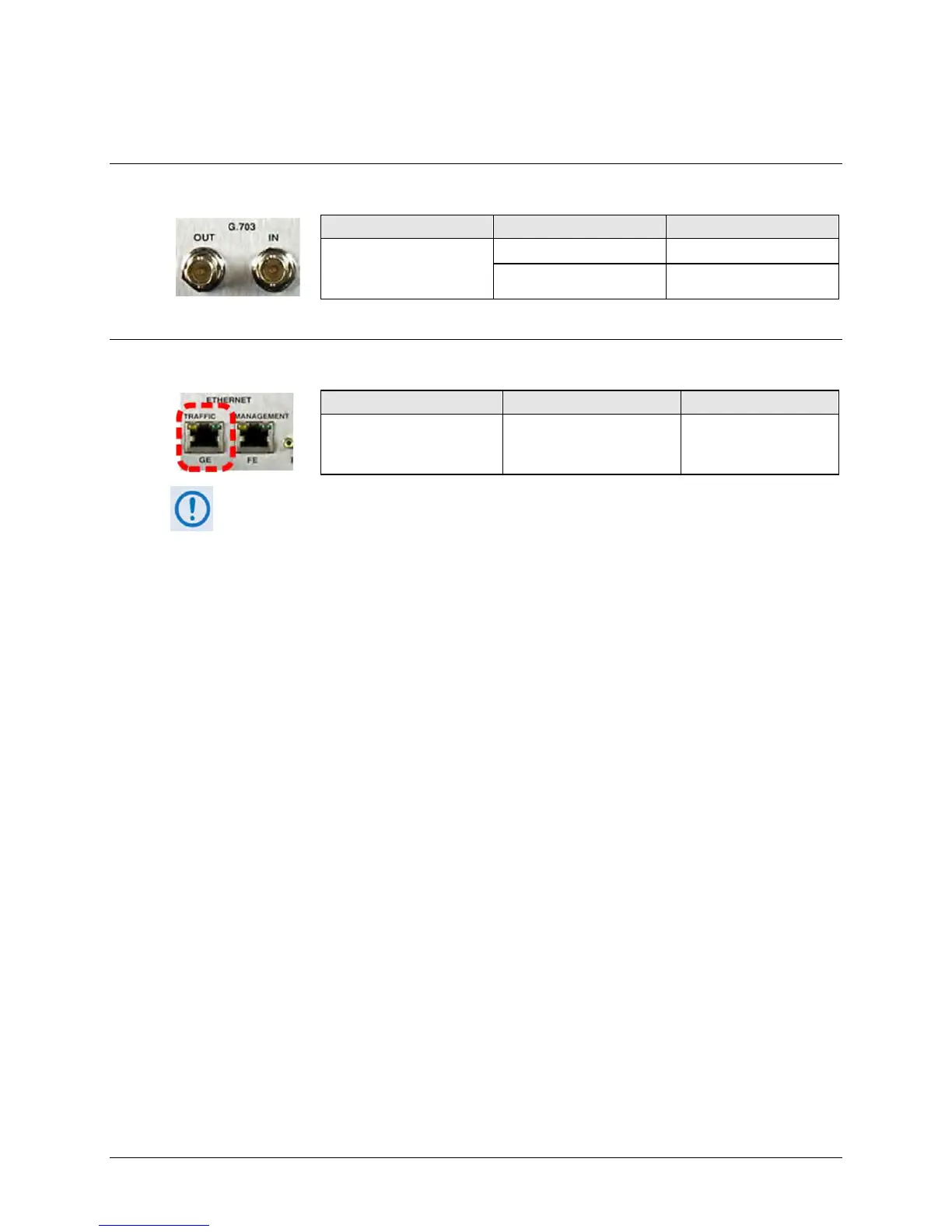

3.2.2 Terrestrial Data Connector Group
3.2.2.1 ‘G.703 | OUT / IN’ Connectors
3.2.2.2 ‘ETHERNET | TRAFFIC | GE’ (Gigabit Ethernet) Connector (RJ-45F)
• This interface operates at 10/100/1000 Mbps, half and full duplex, auto-negotiating.
• The maximum Ethernet packet size is 1522 bytes (including Ethernet headers and
CRC).
Connector Type
Name
Description
BNC female
G.703 | OUT Out
G.703 | IN In
Connector Type
Name
Description
RJ-45 female modular jack
ETHERNET | TRAFFIC | GE
In/Out
