6.3.4.1.4 Status | Statistics | QoS
Appendix J. RETURN GROUP QoS (QUALITY OF SERVICE)
The appearance of this page changes depending on the active QoS Control Mode. The top
portion of this page provides common functionality for all QoS modes. The bottom portion of
this page changes depending on the active QoS Control Mode. All commonality / differences in
page appearance between QoS Modes is noted accordingly.

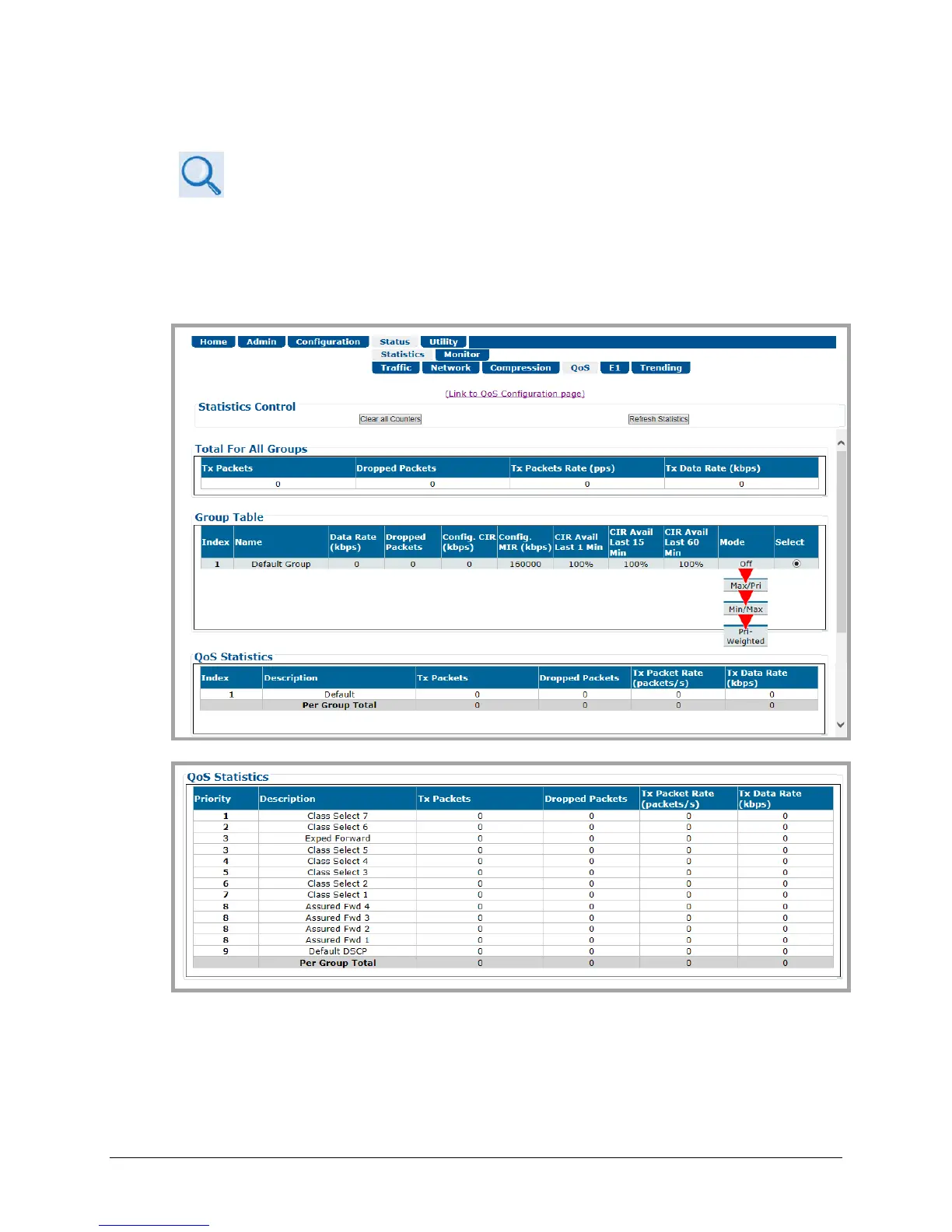

(TOP) Page with QoS Control Mode = OFF, Max/Pri, Min/Max, or Pri-Weighted
(BOTTOM) Page QoS Statistics Section with QoS Control Mode = DiffServ
Figure 6-37. Status | Statistics | QoS Page
