CDM-840 Remote Router MN-CDM840
Ethernet-based Remote Product Management Revision 3
6–66
6.3.4 Status Pages
The Status pages provide status, event logging, and operational statistics windows.
Click the Statistics or Monitor tab to continue.
6.3.4.1 Status | Statistics Pages
Click the Traffic, Network, Compression, QoS, E1, or Trending tab to continue.
6.3.4.1.1 Status | Statistics | Traffic
Use this page to view read-only, abridged status windows pertaining to the basic operational
statistics for the Ethernet, Modulator, and Demodulator traffic.

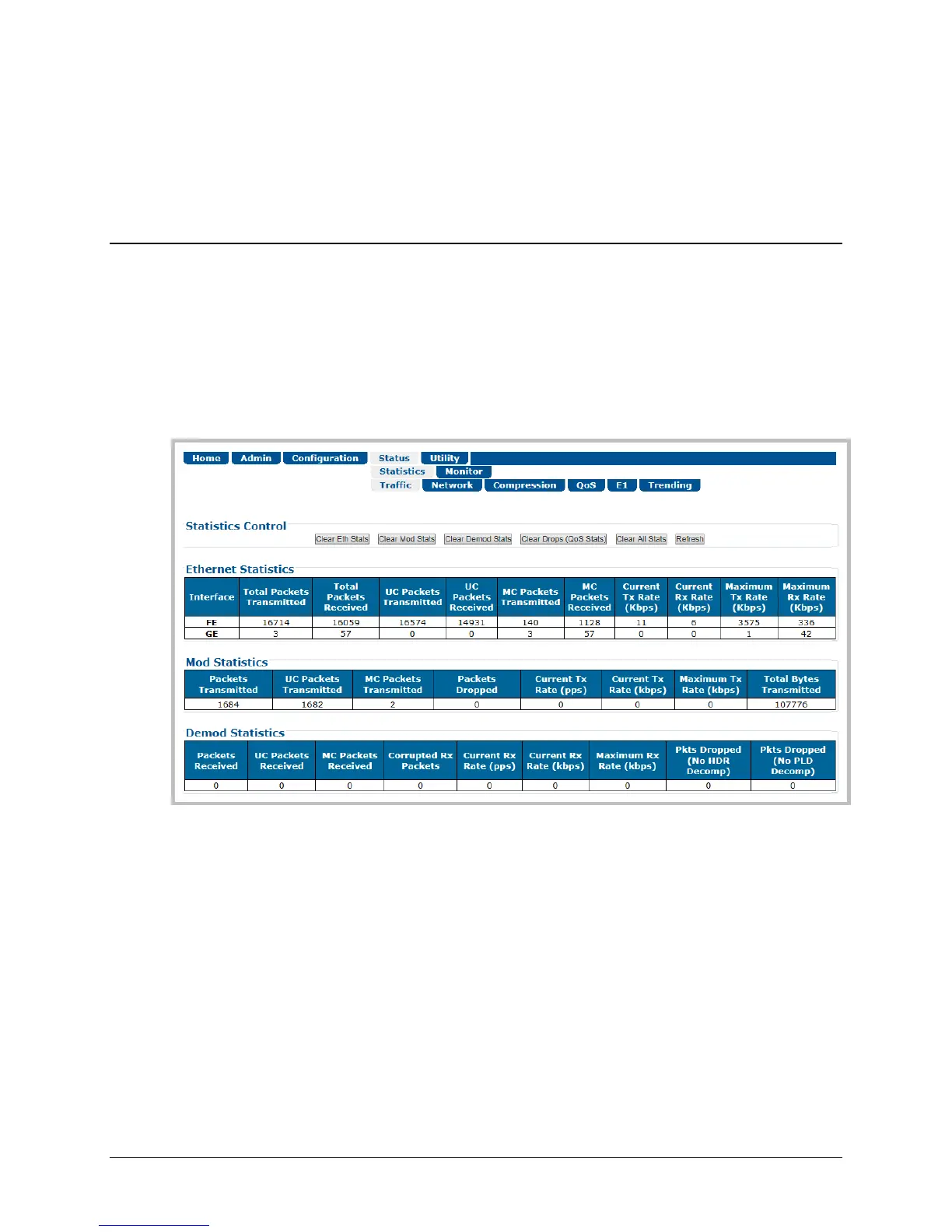

Figure 6-34. Status | Statistics | Traffic Page
