CDM-840 Remote Router MN-CDM840
Installation Revision 3
2–4
Feature Description
1 Back of Unit
2 Rack Enclosure Threaded Rear Mounting Rail (typical)
KT-0000XXX Primary Rear Support Brackets Kit
Item
Quantity
CEFD Part Number Description
KT-0000168 KT-0000195
1
2 2 FP-0000913 Plate, Adapter
2
4 4 HW/10-32X3/8FLT Screw, #10 Flat Head
3
1 – KT/6228-2 4” Rear Support Bracket Kit
– 1 KT/6228-3 10” Rear Support Bracket Kit
KT/6228-X Rear Support Bracket Kit
Item
Quantity
CEFD Part Number Description
KT/6228-2 KT/6228-3
A 2 2 HW/10-32SHLDR Screw, #10 Shoulder
B 4 4 HW/10-32FLT Washer, #10 Flat
C 2 2 HW/10-32SPLIT Washer, #10 Split
D 2 2 HW/10-32HEXNUT Nut, #10 Hex
E 4 4 HW/10-32x1/2RK Bolt, #10 Rack Bracket
F
2 – FP/6138-2 Bracket, Rear Support – 4”
– 2 FP/6138-3 Bracket, Rear Support – 10”

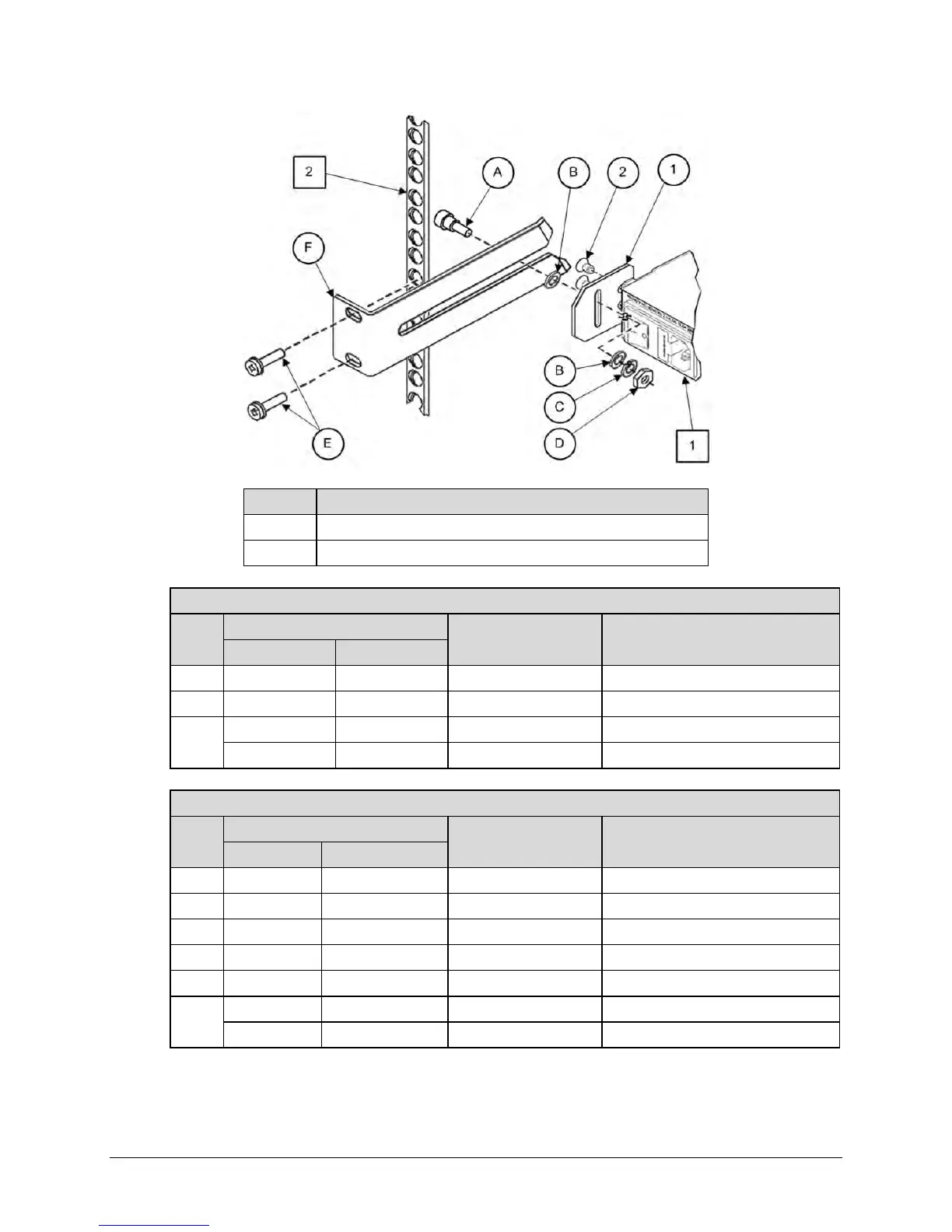

Figure 2-3. Install the Optional Rear Support Brackets Kit
Tools needed to install the optional KT-0000168 (4”) or KT-0000195 (10”) Brackets Kit:
