CDM-840 Remote Router MN-CDM840

Appendix J Revision 3

J–25

J.5 QoS Statistics Reporting

The system collects extensive statistics that you can use to monitor performance in real time, or

store for historical analysis. Use the CDM-840 HTTP Interface ‘Status | Statistics | QoS’ page

(Figure J-7) to view this information.

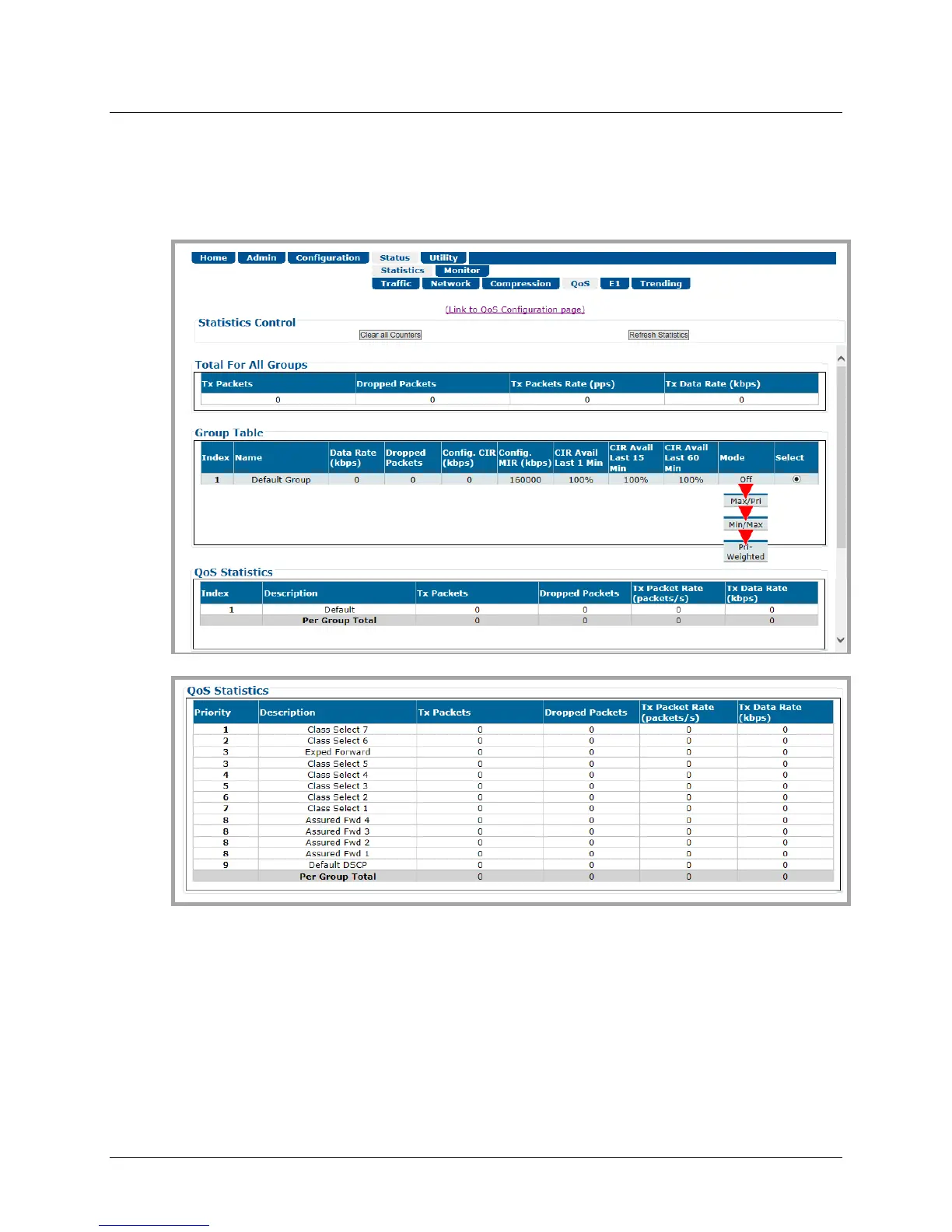

(TOP) Page with QoS Control Mode = OFF, Max/Pri, Min/Max, or Pri-Weighted

(BOTTOM) QoS Statistics Section with QoS Control Mode = DiffServ

Figure J-7. CDM-840 HTTP Interface – Status | Statistics | QoS Page Examples
