CDM-840 Remote Router MN-CDM840
Ethernet-based Remote Product Management Revision 3
6–73
6.3.4.1.5 Status | Statistics | E1 Pages (CDM-840 only)
Use these read-only pages to view cumulative CDM-840 E1 traffic information. Click the
Transmit or Receive tab to continue.
6.3.4.1.5.1 Status | Statistics | E1 | Transmit

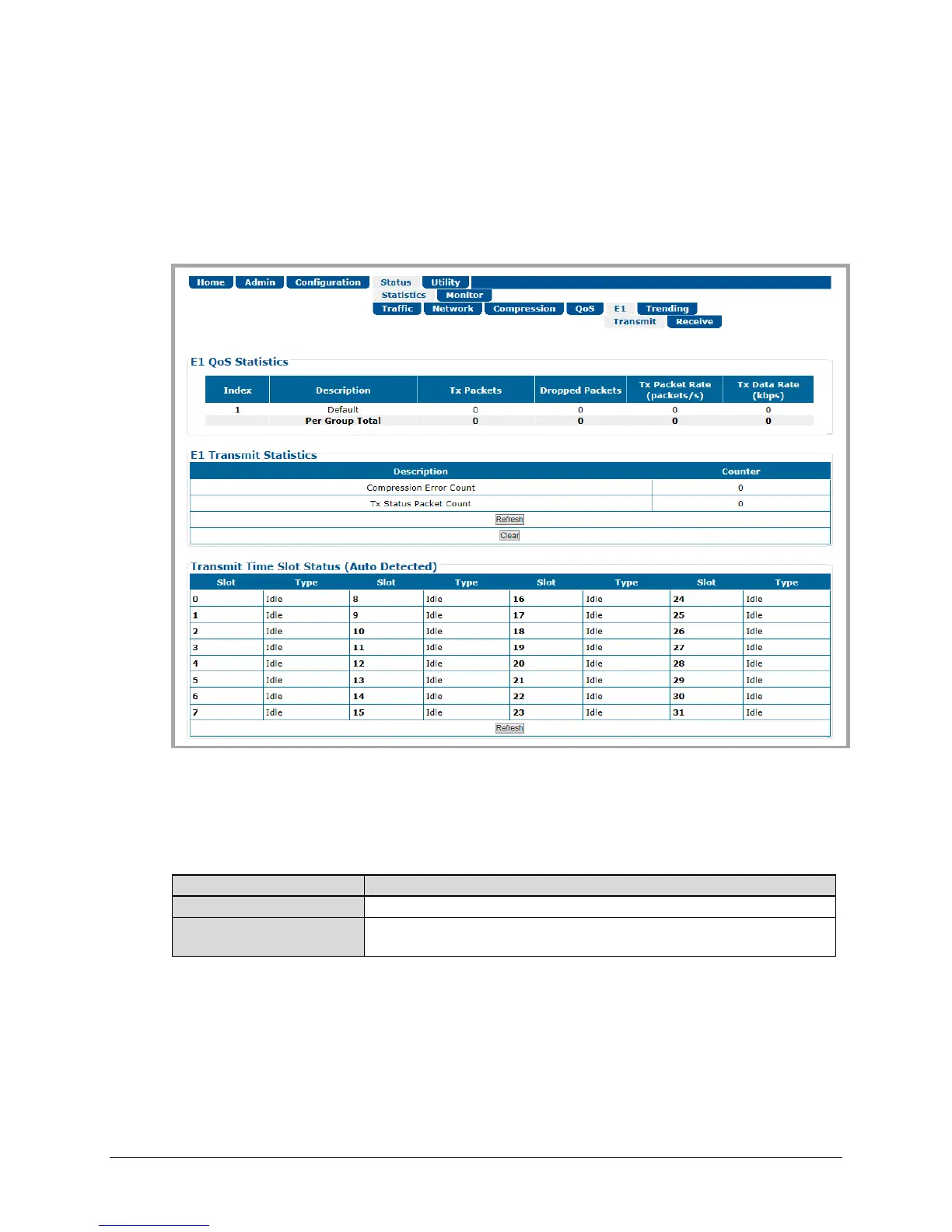

Figure 6-38. Status | Statistics | E1 | Transmit Page
E1 Transmit Statistics
From left to right:
“Description”
Counter
Compression Error Count
Tallies the number of compression errors detected.
Tx Status Packet Count
Tallies the number of status packets transmitted (status packets are transmitted
every 500ms).
Click [Refresh] to update this table with its latest available statistics.
Click [Clear] to clear all E1 Transmit Statistics from the buffer.
Transmit Time Slot Status (Auto Detected)
• Slot – Numbered 0 through 31.
