CDM-840 Remote Router MN-CDM840
Rear Panel Connections Revision 3
3–9

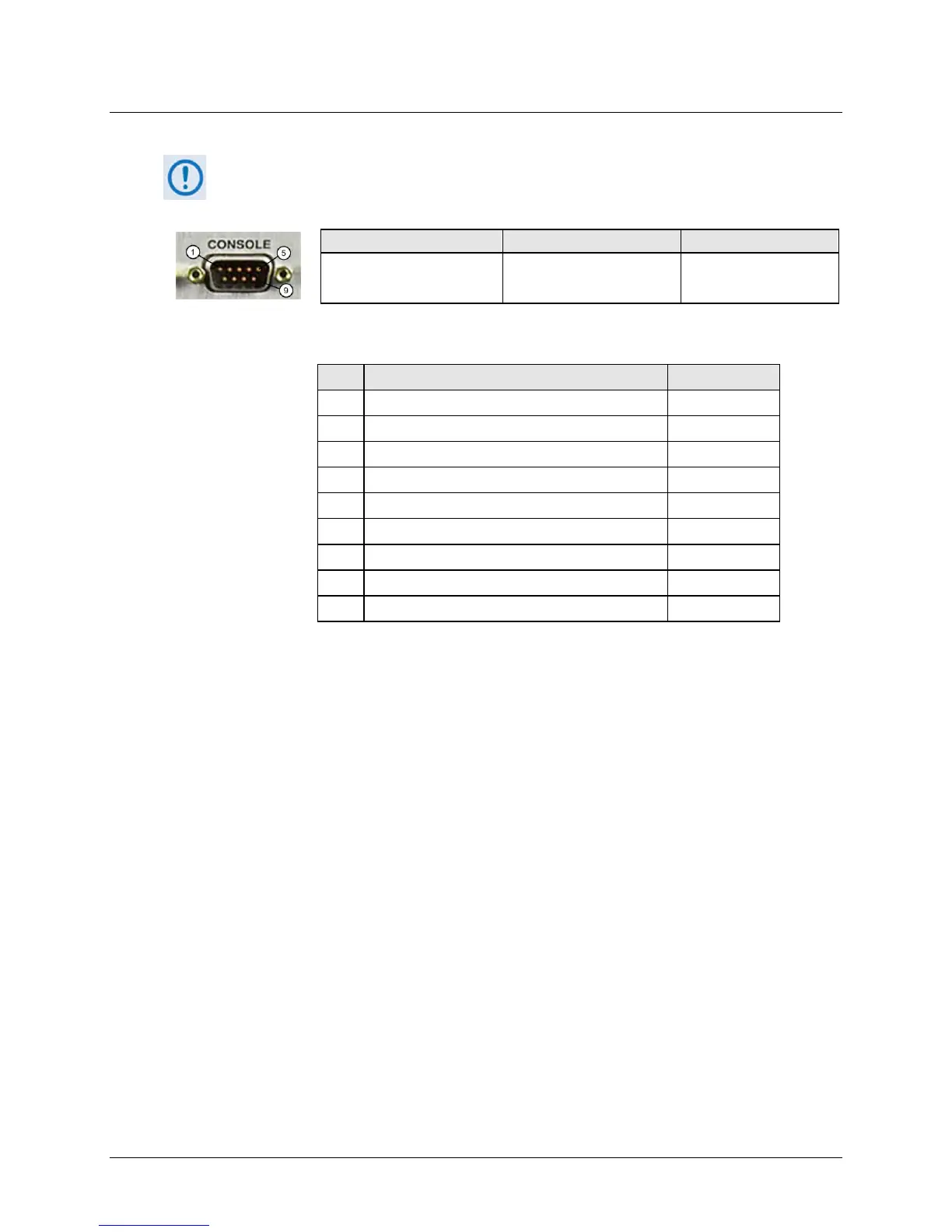

3.2.3.3 ‘CONSOLE’ Interface Connector (DB-9M)
Use this interface for EIA-232 communications. It is intended for connection to an
M&C computer or VT (Video Terminal) device.
Table 3-3. ‘CONSOLE’ Connector Pinouts
Pin # Description Direction
1
Ground
–
6
Reserved - do not connect to this pin –
2
EIA-232 Transmit Data Out
7
Reserved - do not connect to this pin –
3
EIA-232 Receive Data In
8
Reserved - do not connect to this pin –
4
Reserved - do not connect to this pin –
9
Reserved - do not connect to this pin –
5
Ground –
Connector Type
Name
Description
Type ‘D’ 9-pin male
CONSOLE In/Out
