3.3.2 115V/230V Alternating Current (AC) Power Interface (Standard)
Feature
Description
1
On / Off Switch
2
Press-fit Fuse Holder
3
IEC Three-prong Connector
AC Power Specifications
Input Power
40W maximum, 20W typical (without BUC)
245W maximum (with BUC)
Input Voltage
100V to 240V AC, +6%/-10%, autosensing
(total absolute max. range is 90 to 254V AC)
Connector Type
IEC-60320 Type C13/C14
Fuse Protection
Line and neutral fusing
(2X) 5mm x 20mm Slow-blow type fuses:
• T2.5A (2.5A)(115V or 230V AC operation
without BUC)
• T4A (4.0A)(115V or 230V AC operation
with BUC)

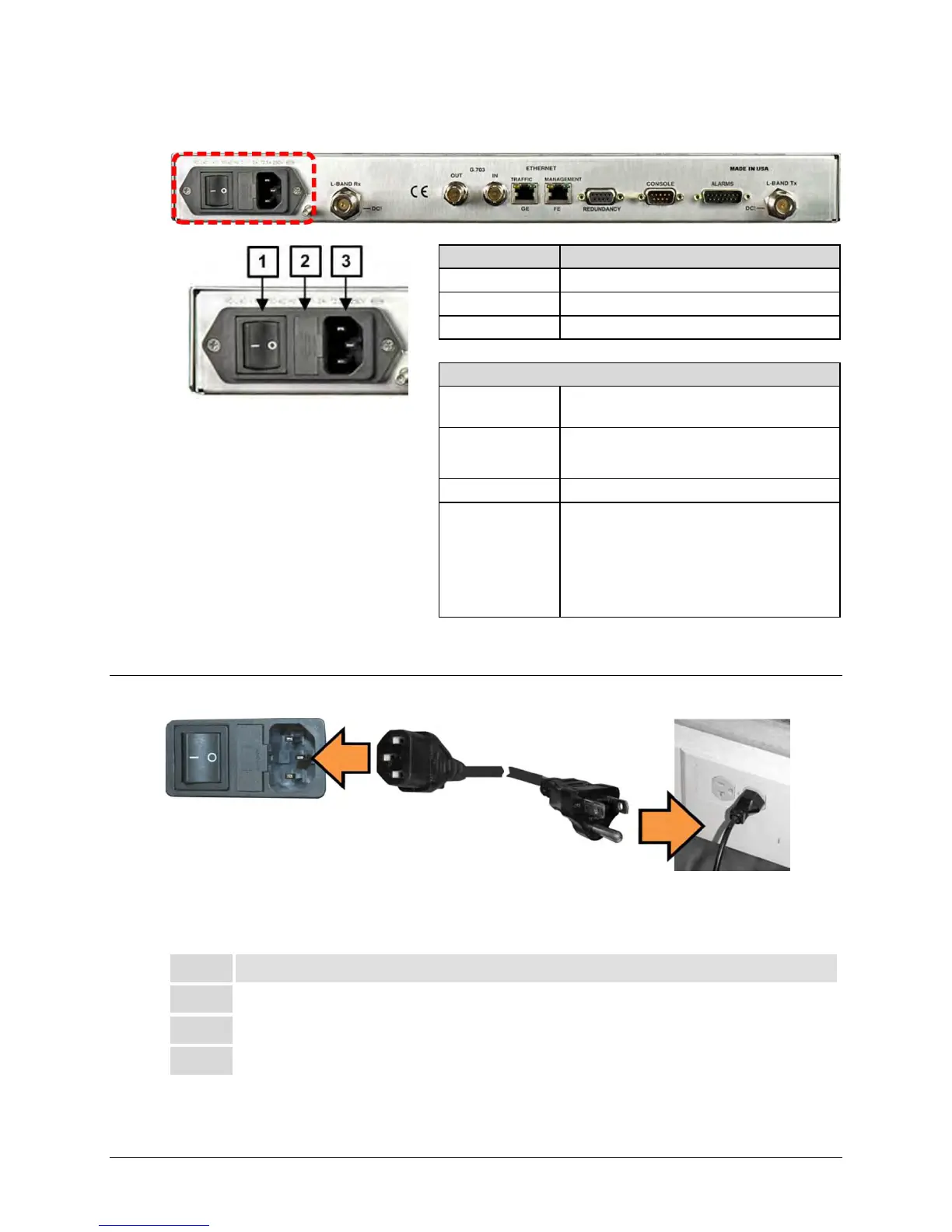

Figure 3-5. AC Power Interface
3.3.2.1 AC Operation – Apply Power
Figure 3-6. Apply AC Power to the Unit
Do these steps to apply AC power to the unit (Figure 3-6):
Step Task
1
Plug the provided AC power cord female end into the unit.
2
Plug the AC power cord male end into the user-supplied power source.
3
Switch the unit ON.
