Comtec CDM-840 - Figure 3-1. Coaxial Connector Examples

CDM-840 Remote Router MN-CDM840
Rear Panel Connections Revision 3
3–2
3.1.1 Coaxial Cable Connections
Coupling Type
Connector Type
Plug Jack
Bayonet
(Type ‘BNC’ shown)
Threaded
(Type ‘N’ shown)

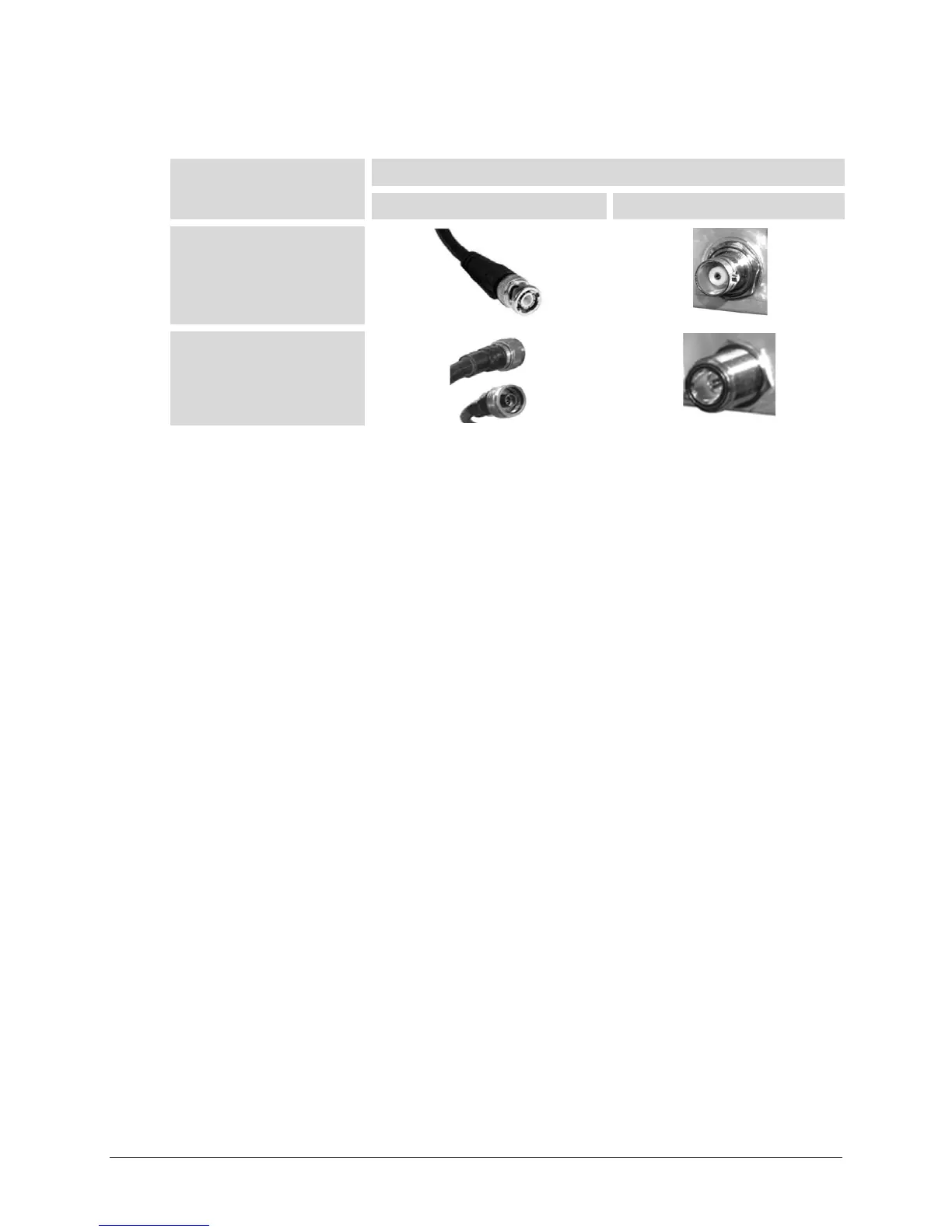

Figure 3-1. Coaxial Connector Examples
The types of coaxial cables used by Comtech EF Data are ‘BNC’, ‘TNC’, ‘N’, ‘F’, and ‘SMA’. Coaxial
cables (plugs) and their mating connectors (jacks/sockets) are available in two coupling styles:
Bayonet or Threaded:
• Bayonet Coupling Style: The jack has a pair of guide posts that accommodate the plug’s
lockdown slots. This lockdown design provides secure assembly without over-tightening the
connection.
• Threaded Coupling Style: The jack features external threads. The plug shell features internal
threads, and has either a knurled outer surface to permit hand-tightening of the connection,
or hex flats to accommodate torqued installation.
Connection Instructions:
• Bayonet Coupling Connections: Use the plug slots to guide, then slide the plug onto the jack
posts. Then, turn the plug clockwise until the jack posts are fully seated within the plug slot.
• Threaded Coupling Connections: Engage the plug onto the jack threads, and then turn the
plug clockwise until it is fully threaded onto the jack. Do not over-tighten the connection.
