CDM-840 Remote Router MN-CDM840
Serial-based Remote Product Management Revision 3
7–2
2) YOU MAY PROCEED WITH SERIAL-BASED REMOTE PRODUCT MANAGEMENT, ASSUMING THAT:
• YOU ARE OPERATING THE CDM-840 WITH THE LATEST VERSION FIRMWARE FILES.
• YOU HAVE CONNECTED THE CDM-840 TO A USER-SUPPLIED, WINDOWS-BASED PC AS FOLLOWS:
O THE PC SERIAL PORT IS CONNECTED TO THE CDM-840 REAR PANEL ‘CONSOLE’ PORT WITH A USER-SUPPLIED
SERIAL CABLE.
O THE PC ETHERNET PORT IS CONNECTED TO THE CDM-840 REAR PANEL ‘ETHERNET | MANAGEMENT | FE’ 10/100
FAST ETHERNET PORT WITH A USER-SUPPLIED HUB, SWITCH, OR DIRECT ETHERNET CABLE CONNECTION.
O THE PC IS RUNNING A TERMINAL EMULATION PROGRAM (FOR USE OF THE CDM-840 SERIAL INTERFACE) AND A
COMPATIBLE WEB BROWSER (FOR USE OF THE CDM-840 HTTP INTERFACE).
• YOU HAVE NOTED THE CDM-840 MANAGEMENT IP ADDRESS USING THE CDM-840 SERIAL INTERFACE (FIGURE 7-1).
(THE FIRMWARE INFORMATION (I.E., REVISION LETTERS, VERSION NUMBERS, ETC.) AS SHOWN MAY DIFFER FROM
YOUR SETUP.)

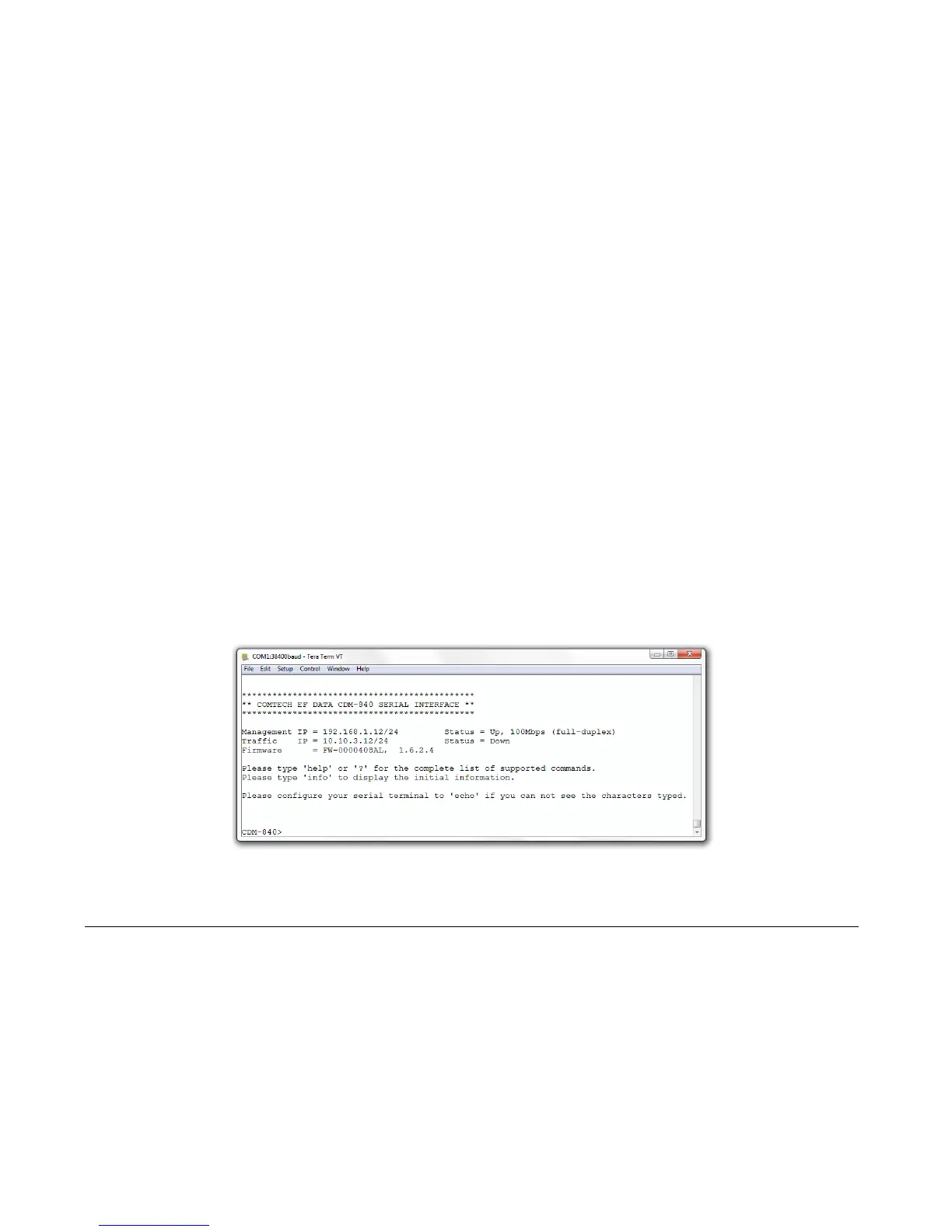

Figure 7-1. CDM-840 Serial Interface Example
