For the standalone CTOG-250 approach, there are no restrictions on the Hub network beyond
requiring that you connect the traffic ports for all of the CDD-880s and the CTOG-250 to the
same Ethernet Switch.

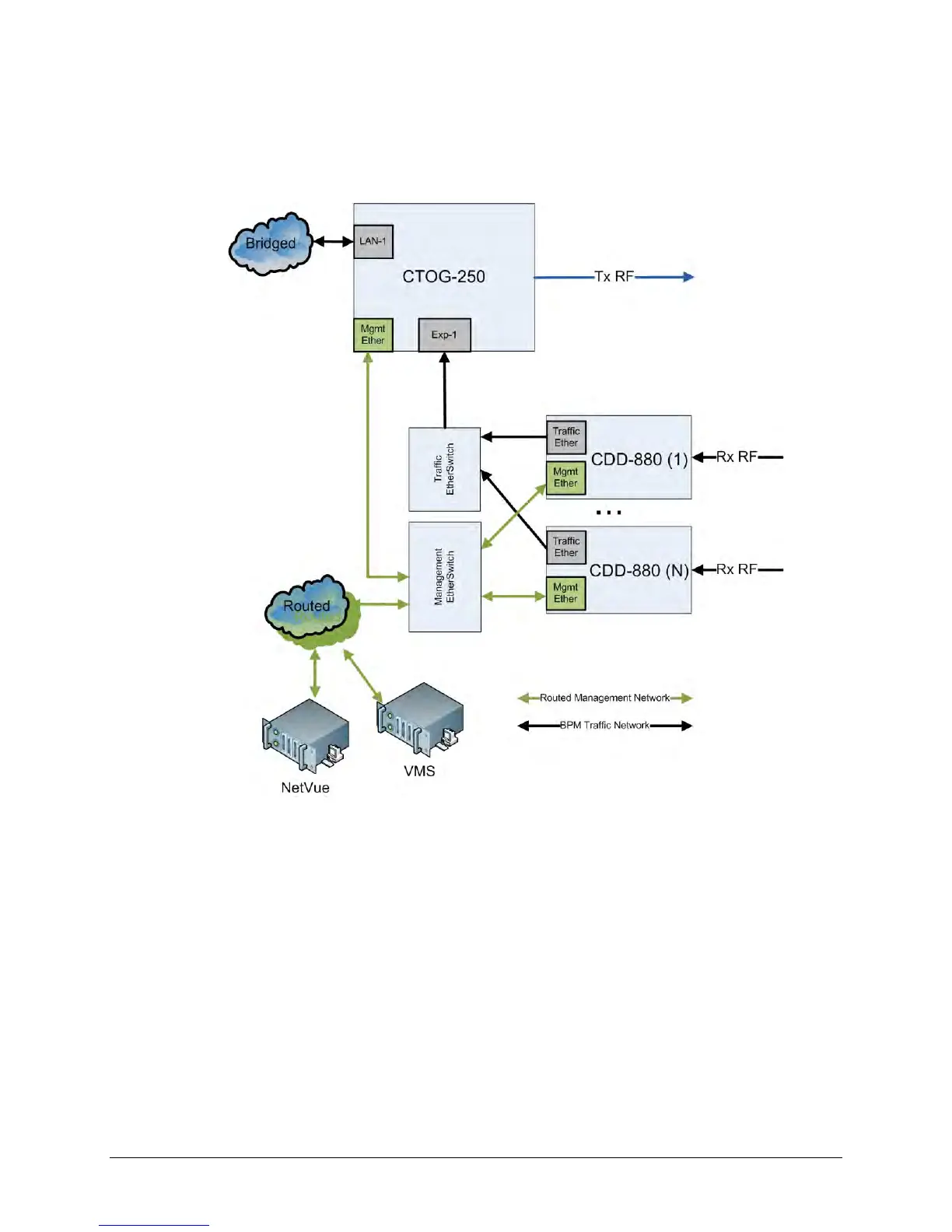

Figure E-8. Hub Configuration – Standalone CTOG-250, No Redundancy
While the Figure E-8 diagram suggests inclusion of the management network portion, it is not
strictly required. However, what is strictly required is that the following holds true for all
Advanced VSAT deployments:
• The Management IP Addresses for all units have IP connectivity to the NetVue and VMS
server’s IP Address.
• CDD-880 management ports must have a packet path to the Management IP Address of the
CDM-840s.
• CDM-840s have a packet path to the Management IP Address of the CTOG-250.
