CDM-840 Remote Router MN-CDM840

Appendix E Revision 3

E–12

allows the packets coming from the CDD-880s to be associated with the correct CTOG-250, as

long as you enable MAC learning on the attached Ethernet Switch.

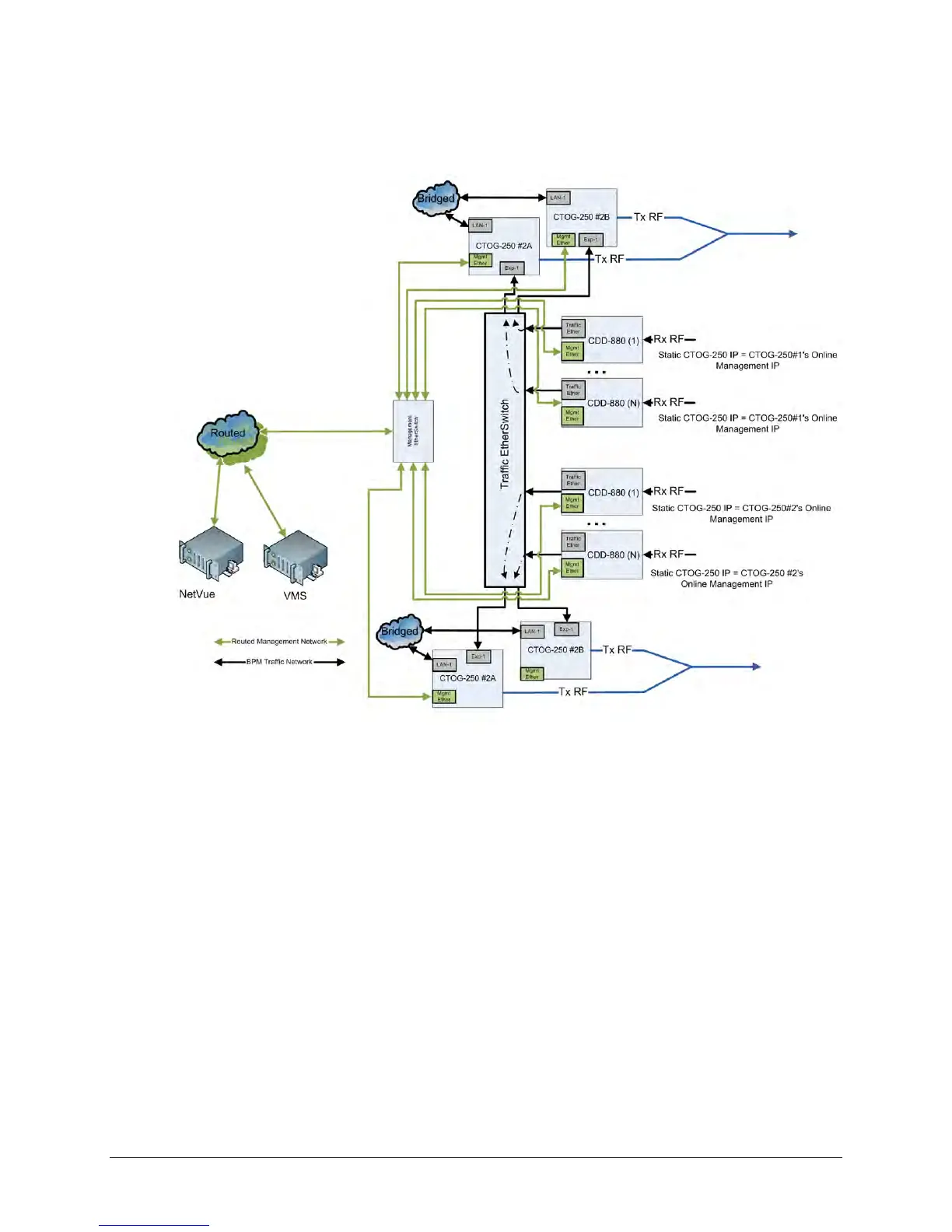

Figure E-10. Multiple CTOG-250 Outbounds in Redundant Mode
