O THE PC SERIAL PORT IS CONNECTED TO THE CDM-840 REAR PANEL
‘CONSOLE’ PORT WITH A USER-SUPPLIED SERIAL CABLE.
O THE PC ETHERNET PORT IS CONNECTED TO THE CDM-840 REAR PANEL
‘ETHERNET | MANAGEMENT | FE’ ETHERNET PORT WITH A USER-SUPPLIED
HUB, SWITCH, OR DIRECT ETHERNET CABLE CONNECTION.
O THE PC IS RUNNING A TERMINAL EMULATION PROGRAM (FOR OPERATION
OF THE CDM-840 SERIAL INTERFACE) AND A COMPATIBLE WEB BROWSER
(FOR OPERATION OF THE HTTP INTERFACE).
• YOU HAVE NOTED THE CDM-840 MANAGEMENT IP ADDRESS USING THE
CDM-840 SERIAL INTERFACE.
• COMTECH EF DATA RECOMMENDS USE OF THE SERIAL-BASED REMOTE
CONTROL INTERFACE AND THE ETHERNET-BASED SNMP INTERFACE ONLY FOR
ADVANCED USERS. COMTECH EF DATA STRONGLY ENCOURAGES USE OF THE
CDM-840 HTTP INTERFACE FOR MONITOR AND CONTROL (M&C) OF THE
CDM-840.

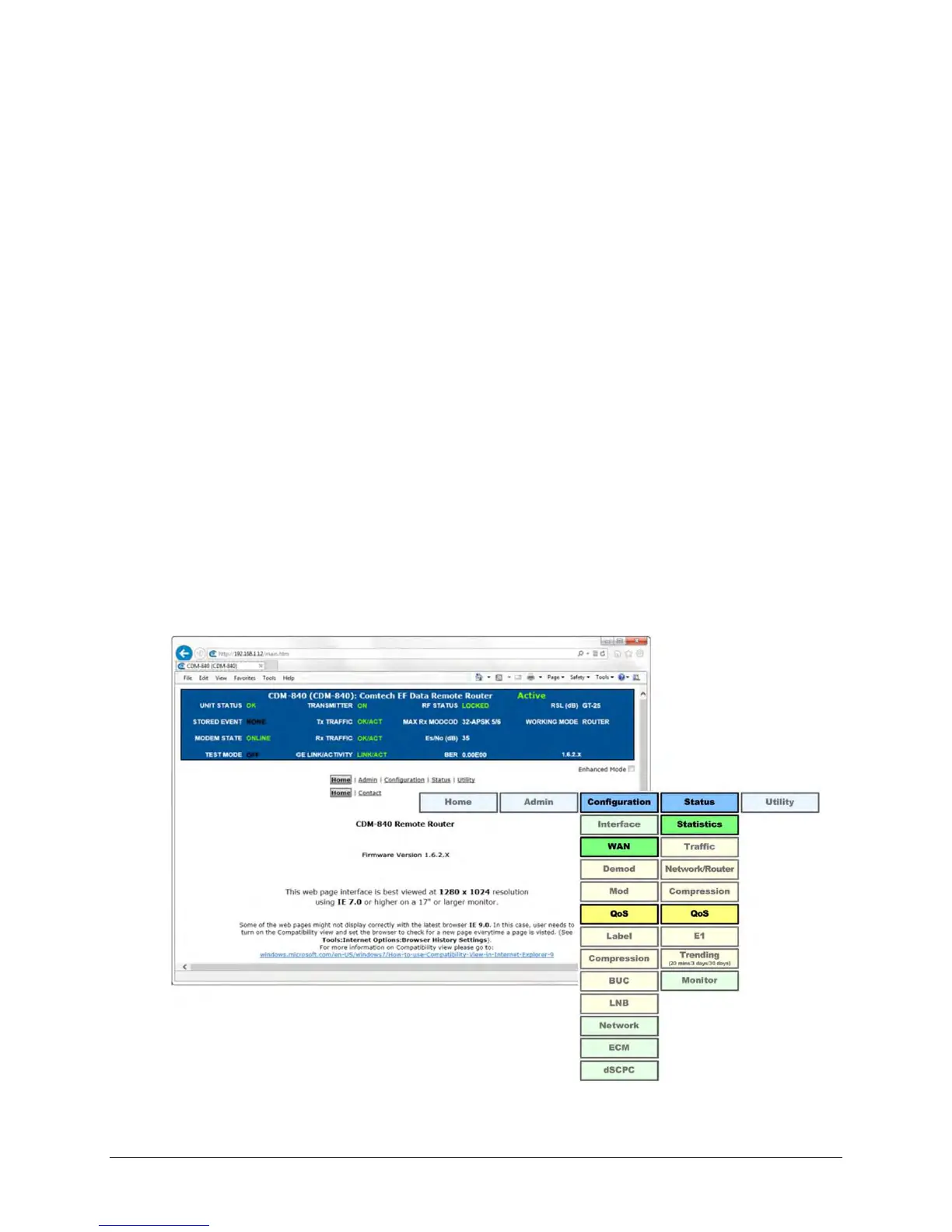

Figure J-3 shows the CDM-840 HTTP Interface “splash” page, and the menu tree for accessing the
operations specified in this appendix. Page functionality that is not specific to QoS operation
appears dimmed.
Figure J-3. CDM-840 HTTP Interface and Menu Tree (FW Ver. 1.6.2.X)
