CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–43 MN-CDM570A

7.4.3.3.6.1 Configuration | WAN | QoS Pages

Appendix N. QUALITY of SERVICE (QoS)

The appearance of this page, and its availability of features, is dependent on the

selected QoS Mode.

(TOP) QoS Feature = Disable

(BOTTOM) QoS Control Mode = Rule – Max/Priority Mode (Banner, Menu Bar not shown)

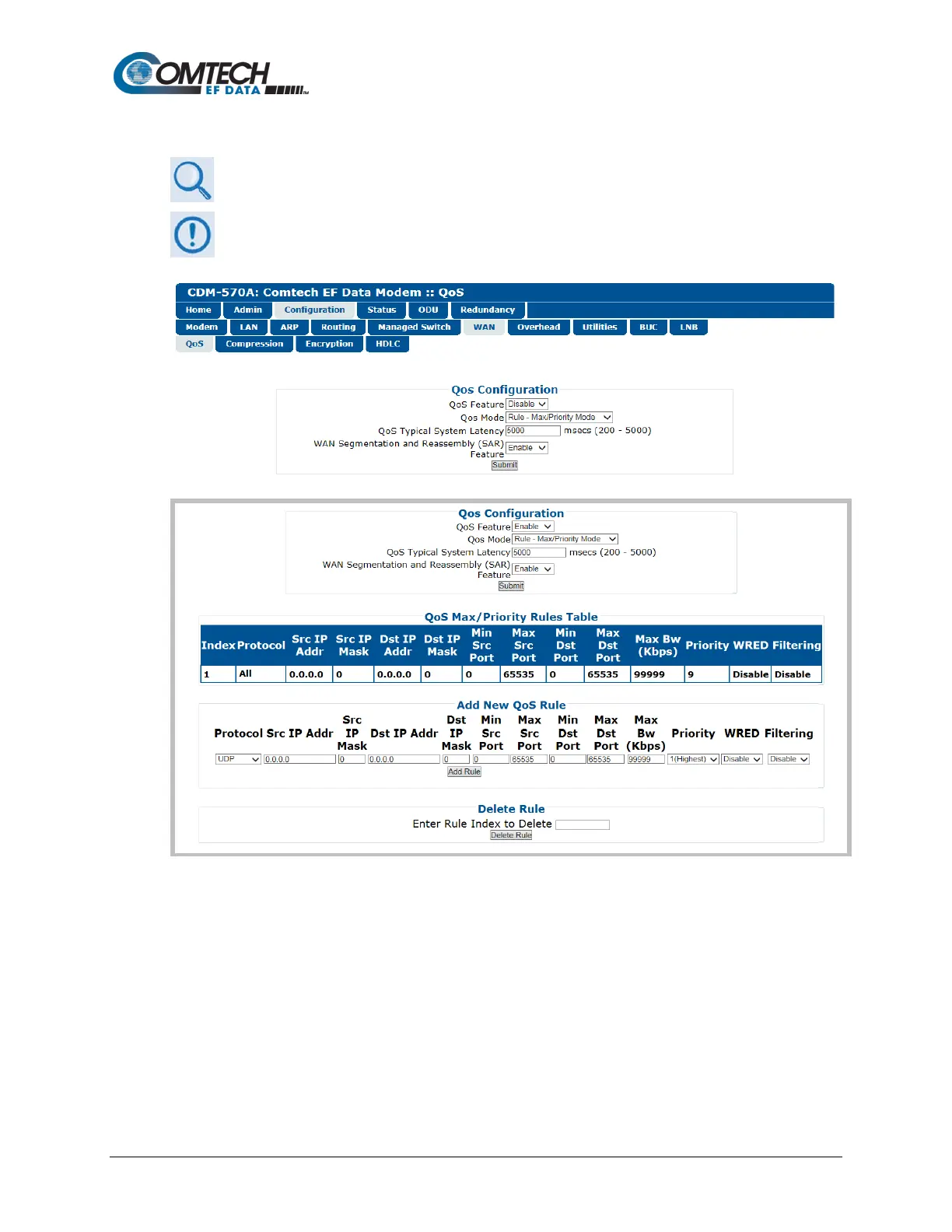

Figure 7-24. Configuration | WAN | QoS Pages
