CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Optional Packet Processor - Serial/Telnet CLI Operation 9–20 MN-CDM570A

9.3.3.1.1 Interface Configuration > Ethernet Interface (Managed Switch

Mode)

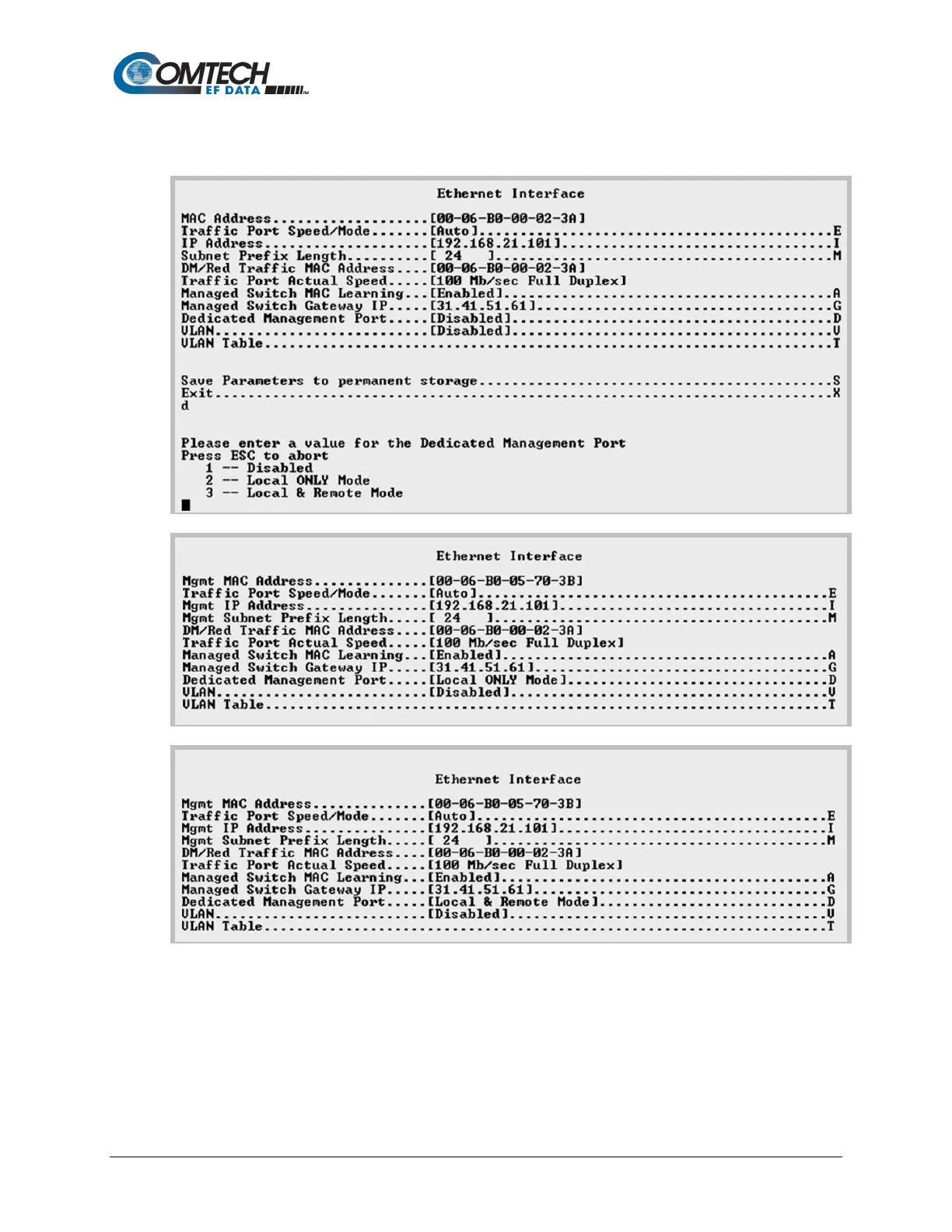

(TOP) Dedicated Management Port = DISABLED, Hot Key ‘D’ selected

(CENTER) Dedicated Management Port = Local ONLY Mode

(BOTTOM) Dedicated Management Port = Local & Remote Mode

Figure 9-11. Ethernet Interface in Managed Switch Mode
