CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–76 MN-CDM570A

7.4.3.5 ODU Pages Summary (CDM-570A Only)

After enabling ODU Comms operations, you may use the ‘ODU’ pages to control

and monitor the CSAT-5060 or KST-2000A/B Outdoor Unit that is connected via

FSK to the CDM-570A (70/140 MHz) Satellite Modem.

See Chapter 10. CDM-570A/570AL ODU (TRANSCEIVER, BUC, LNB) M&C

Operation for complete details on using the HTTP Interface for ODU operations.

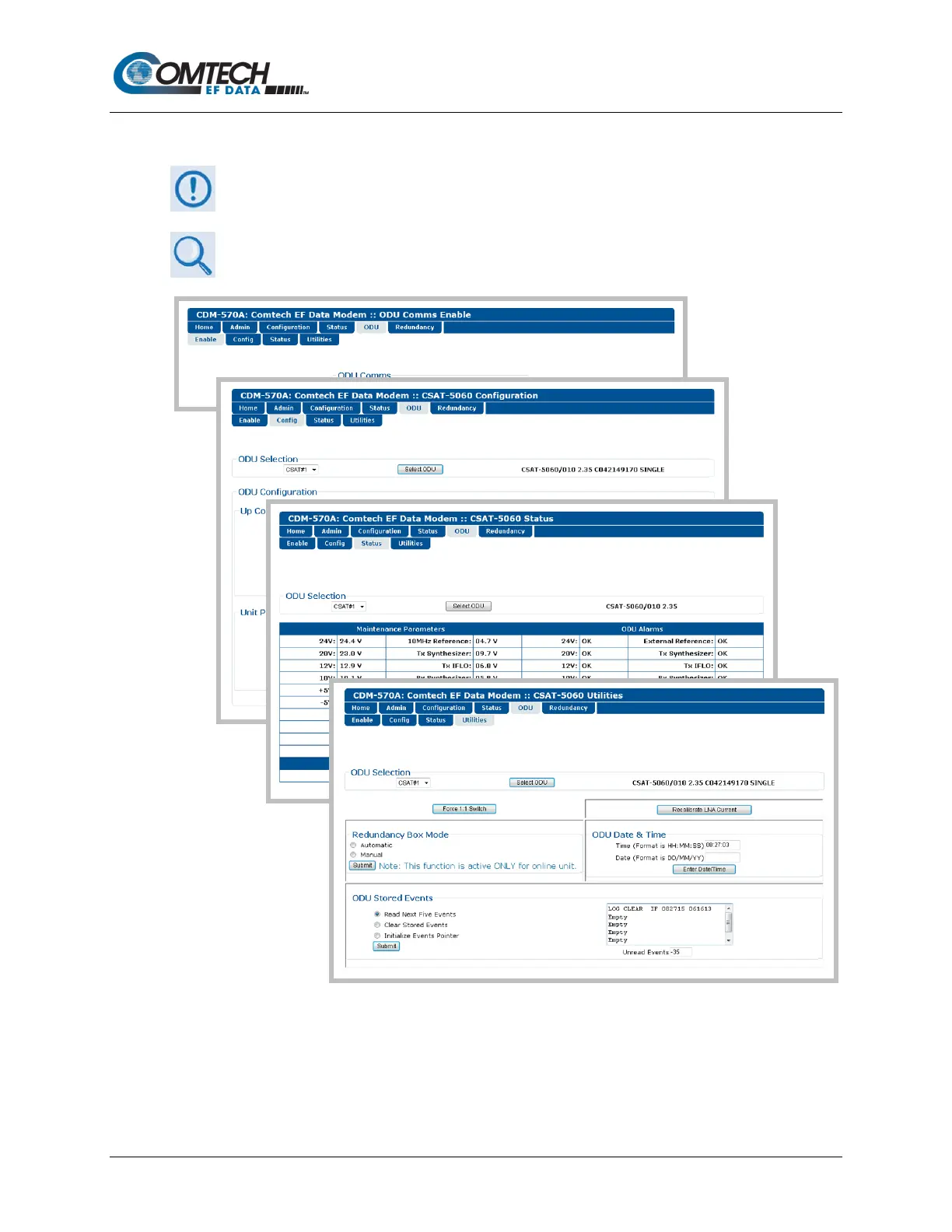

Figure 7-49. ODU Page Examples (Enable, Config, Status, and Utilities)
