CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–72 MN-CDM570A

7.4.3.4.4.5 Status | Traffic Statistics | QoS

The appearance of this page depends on whether you enable or disable the QoS Feature

operation using the ‘Configuration | WAN | QoS’ page (Sect. 7.4.3.3.6.1).

(TOP) QoS Feature = Disable

(BOTTOM) QoS Feature = Enable

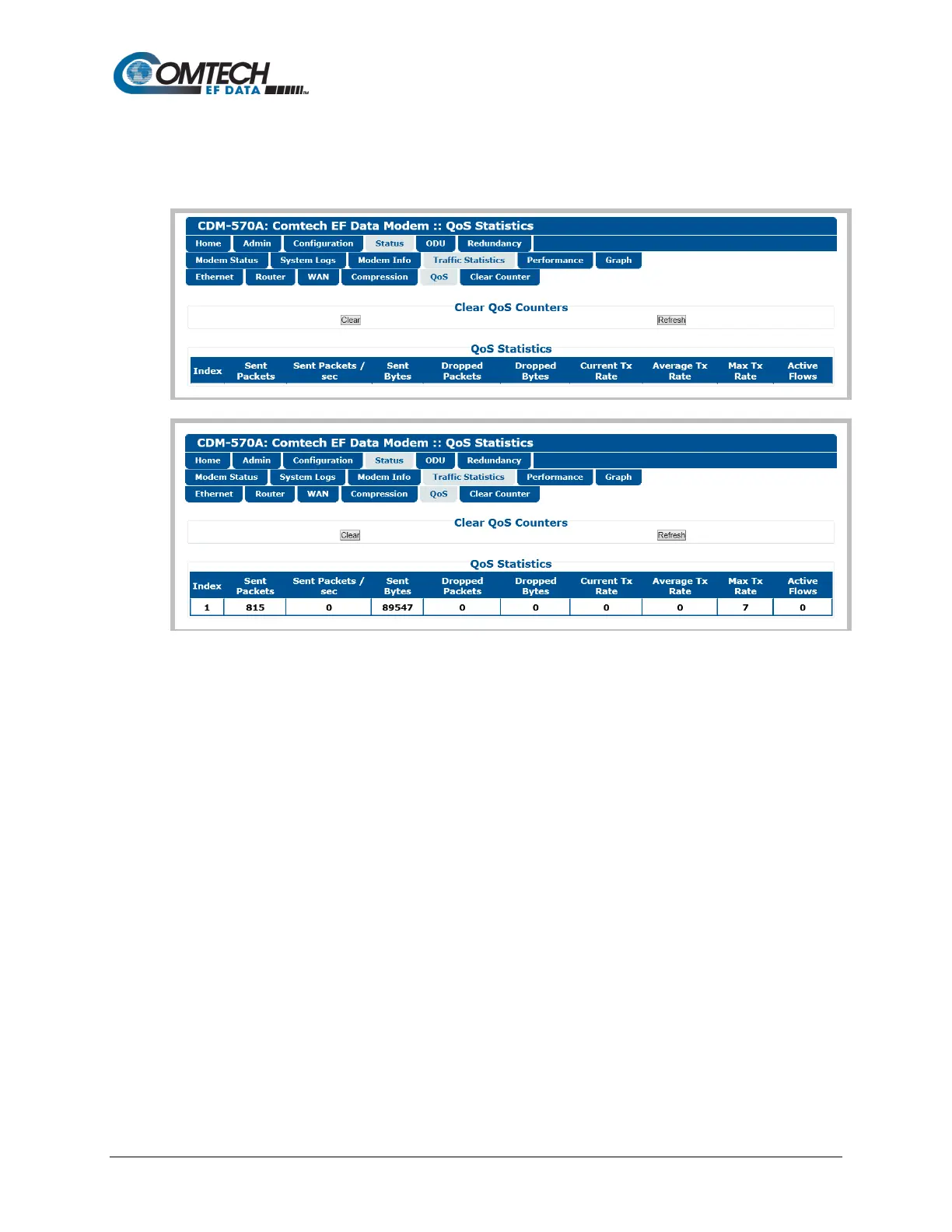

Figure 7-44. Status | Traffic Statistics | QoS Page

Clear QoS Counters

Click [Clear] to erase all existing information and reset the statistics counters. Otherwise, click

[Refresh] to update the page with the latest polled data.
