CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
Installation and Startup 2–4 MN-CDM570A
2.2.1 Install the Optional Rear Support Brackets Kit
Detail
Description
1
Back of Modem
2
Rack Enclosure Threaded Rear Mounting Rail (typical)
Item
Kit / Quantity
Part Number Description
KT/6228-2
KT/6228-3
1
2
2
HW/10-32SHLDR
Shoulder Screw, #10
2
4
4
HW/10-32FLT
Flat Washer, #10
3
2
2
HW/10-32SPLIT
Lock Washer, #10
4
2
2
HW/10-32HEXNUT
Hex Nut, #10
5
4
4
HW/10-32x1/2RK
Bolt, #10, Rear Support Bracket
6
2
–
FP/6138-2
Bracket, Rear Support – 4”
–
2
FP/6138-3
Bracket, Rear Support – 10”

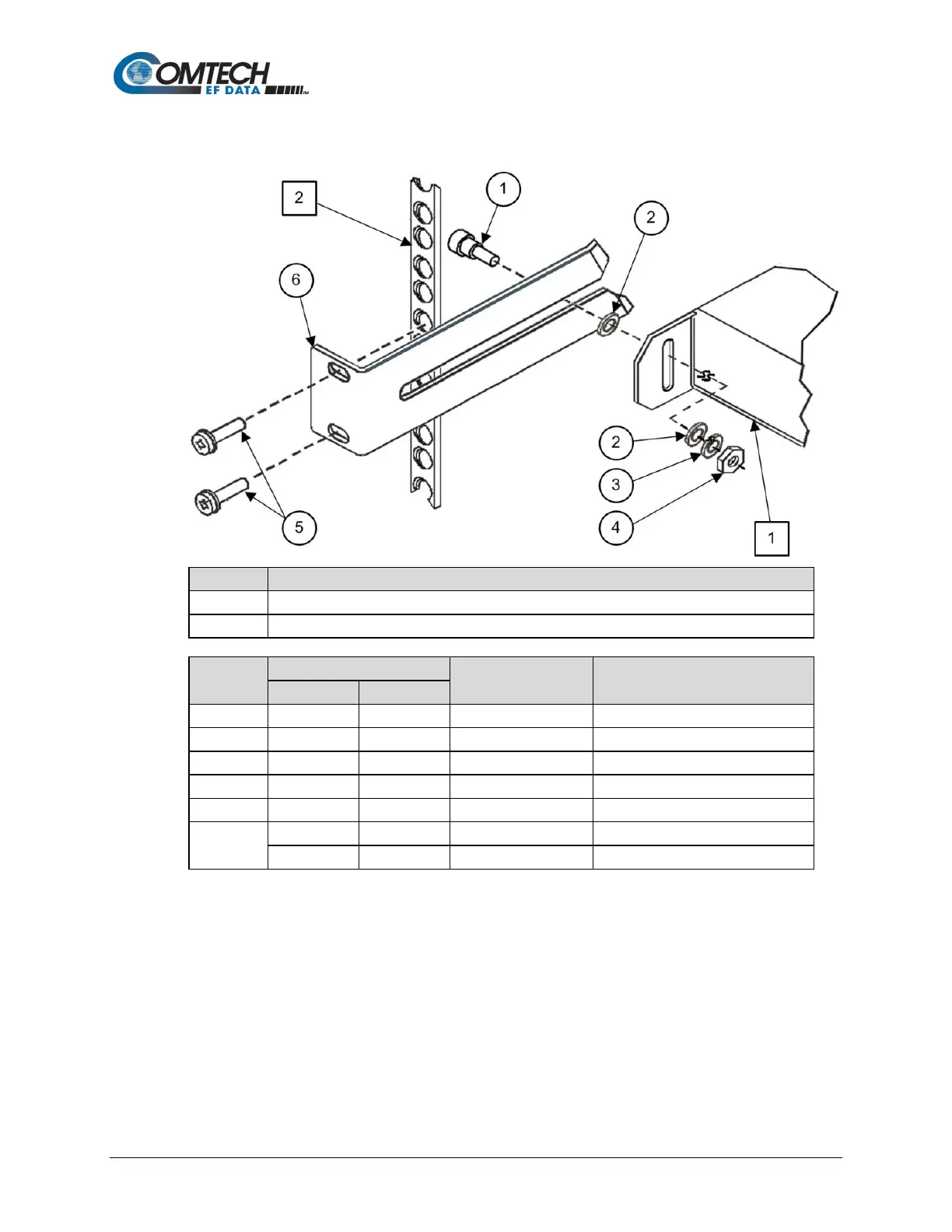

Figure 2-3. Install the Optional Rear Support Brackets Kit
The following tools are required to install the optional KT/6228-2 (4”) or KT/6228-3 (10”) Rear
Support Brackets Kit:
• A medium Phillips screwdriver
• A 5/32-inch SAE Allen Wrench
• An adjustable Crescent wrench
