CDM-570A/570A Satellite Modem with Optional Packet Processor
Revision 5
Dedicated Management Port Feature Q–10 MN-CDM570A
Q.5 Dedicated Management Port and 1:1 Redundancy Operation

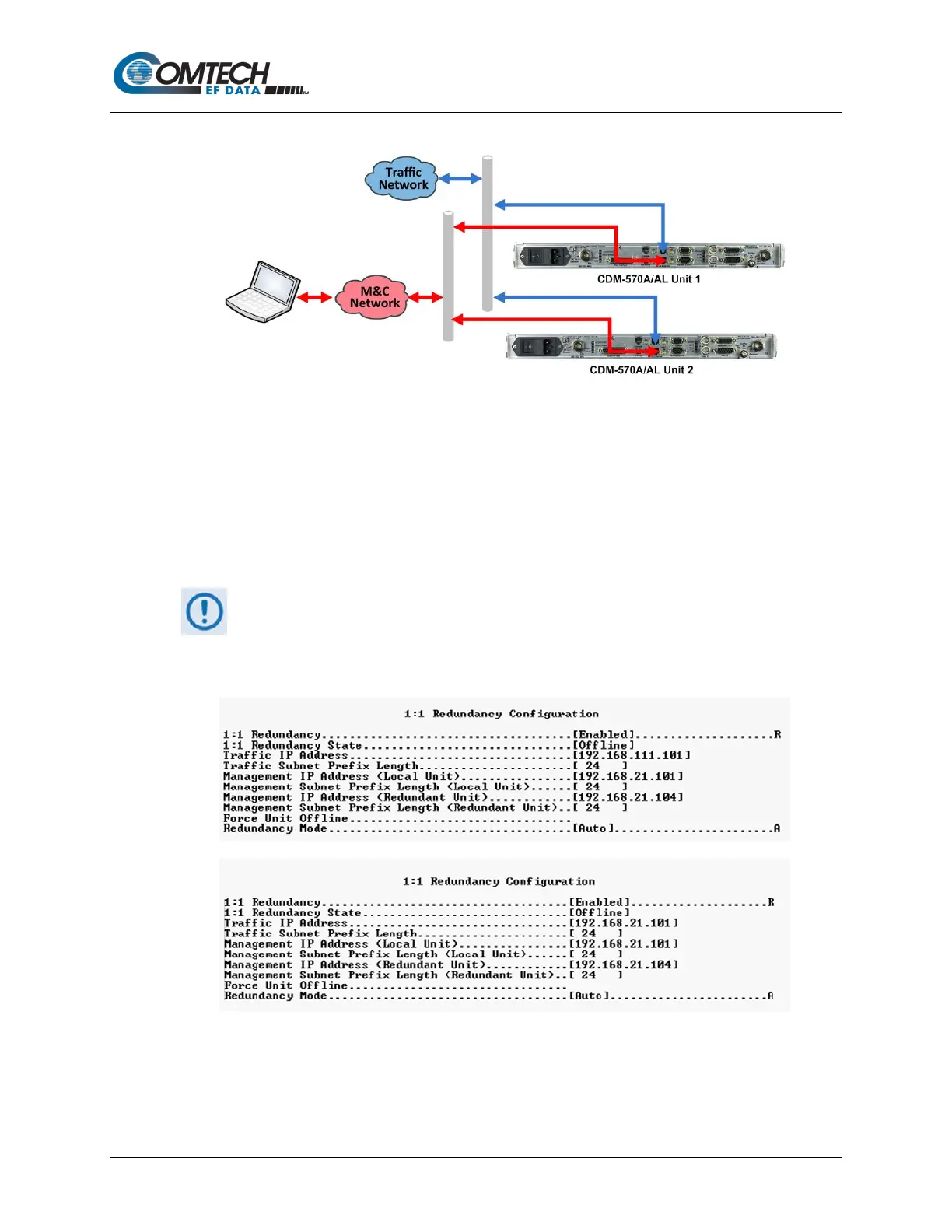

Figure Q-10. CDM-570A/570AL 1:1 Redundancy Operation
For 1:1 Redundancy with Dedicated Management Port disabled, you must connect the online and
standby modem ‘10/100 Ethernet | Traffic 100’ ports to the same external switch. However, for
1:1 Redundancy with Dedicated Management Port enabled, you must use separate external
switches for the Ethernet data ‘10/100 Ethernet | Traffic 100’ ports (blue) and the ‘10/100
Ethernet | M&C 100’ ports (red). These switches can be either separate physical or logical
switches.
Q.5.1 1:1 Redundancy in Managed Switch Mode
In Managed Switch Mode, no special configuration is required for:
• Enabling 1:1 Redundancy when Dedicated Management Port is enabled;
• Enabling Dedicated Management Port when 1:1 Redundancy is enabled.
(TOP) Dedicated Management Port = DISABLED
(BOTTOM) Dedicated Management Port = ENABLED
Figure Q-11. 1:1 Redundancy Configuration in Managed Switch Mode
