Optional Packet Processor - Serial/Telnet CLI Operation 9–63 MN-CDM570A
9.3.9 Redundancy Configuration
Appendix N. IP REDUNDANCY
Open the Redundancy Configuration page from the Main Menu.

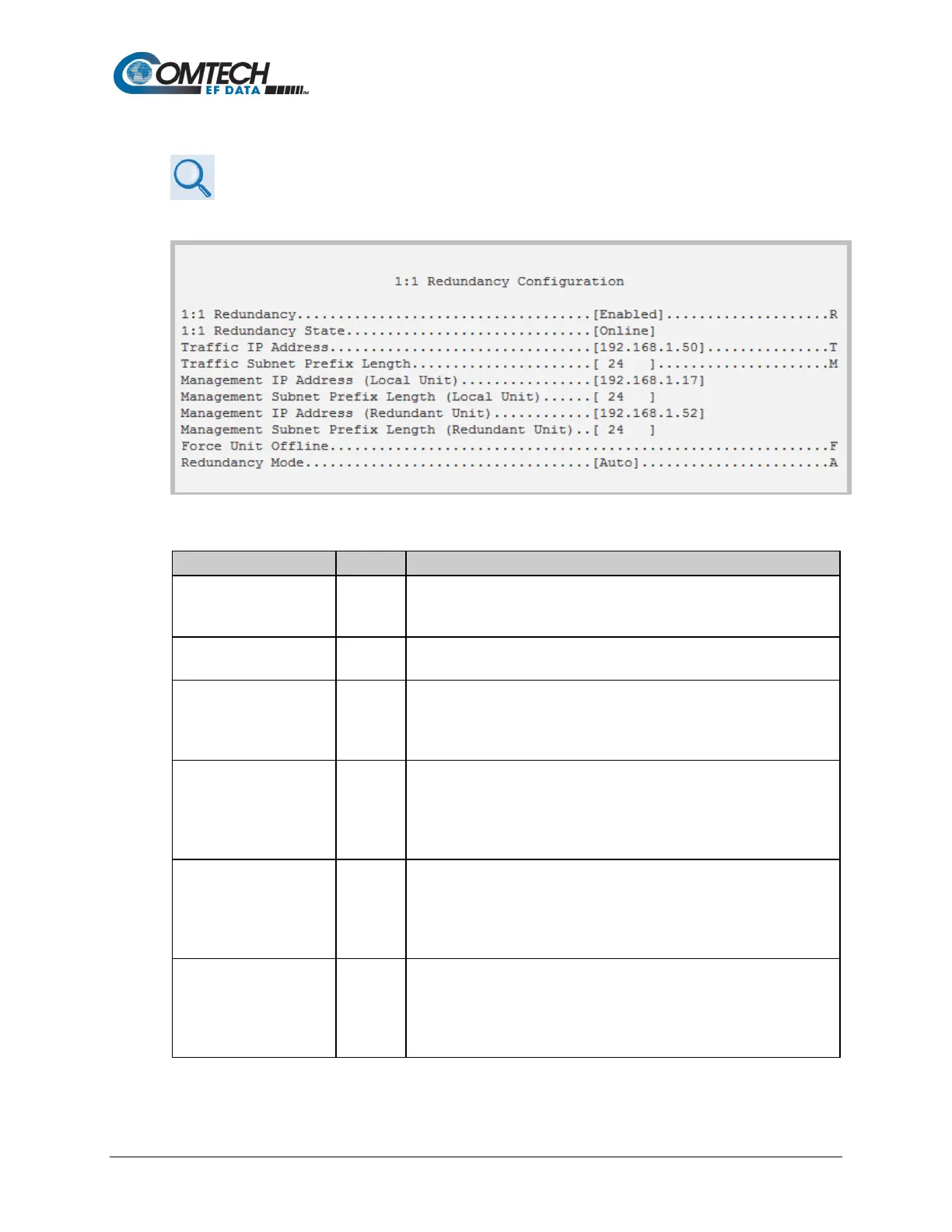

Figure 9-49. 1:1 Redundancy Configuration
Selection
Hot Key
Description
1:1 Redundancy
R
Toggle [Enabled] or [Disabled].
NOTE: Only enable Redundancy when connected with another
CDM-570A/570AL via a CRS-180 or CRS-170A redundancy switch.
1:1 Redundancy State
[RO]
• If standalone CDM-570A/570AL – displays state as Online.
• If Redundant CDM-570A/570AL – displays state as Online or Offline
Traffic IP Address
[RO]
• If standalone CDM-570A/570AL – not used.
• If Online Redundant CDM-570A/570AL – sets Traffic IP (read/write).
• If Offline Redundant CDM-570A/570AL – displays Traffic IP (read-
only).
Traffic Subnet Prefix
Length
[RW]
[RO]
• If standalone CDM-570A/570AL – not used.
• If Online Redundant CDM-570A/570AL – sets Traffic Subnet
(read/write).
• If Offline Redundant CDM-570A/570AL – displays Traffic Subnet
(read-only).
Management IP Address
(Local Unit)
[RO]
• If standalone CDM-570A/570AL – not used.
• If Online Redundant CDM-570A/570AL – displays Local Management
IP
• If Offline Redundant CDM-570A/570AL – displays Local Management
IP
Management Subnet
Prefix Length (Local Unit)
[RO]
• If standalone CDM-570A/570AL – not used.
• If Online Redundant CDM-570A/570AL – displays Local Management
Subnet
• If Offline Redundant CDM-570A/570AL – displays Local Management
Subnet
