10.3.2.1.2 Configuration | LNB
Use this page to configure LNB parameters, and to display the LNB status for L-Band operation.

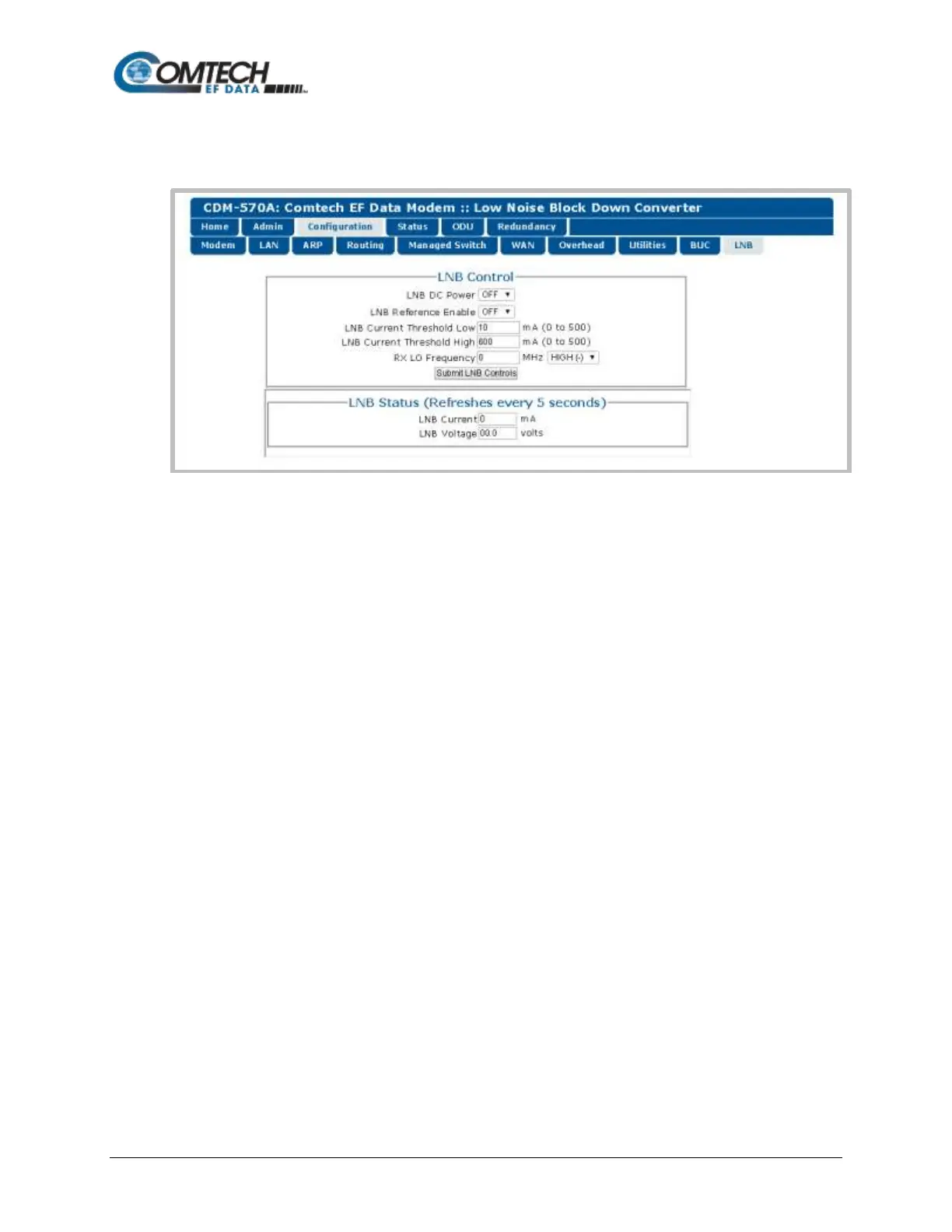

Figure 10-16. Configuration | LNB Page
LNB Control
Use the drop-down lists to set BUC LNB DC Power and LNB Reference Enable operations as ON
or OFF.
Assign the LNB Low Current Threshold and High Current Threshold values ranging from
0 to 500 mA.
Assign the Rx Lockout Frequency and designate the value as a HIGH (+) or LOW (–) limit.
Click [Submit LNB Controls] to save any changes made to this section.
LNB Status
The values displayed in this section are read-only and cannot be changed. This information
automatically updates every 5 seconds.
