CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
Optional Packet Processor - Serial/Telnet CLI Operation 9–30 MN-CDM570A
9.3.4.2 QoS Configuration > DiffServ Rules Configuration
Open the nested DiffServ Rules Configuration page from the QoS Configuration page.

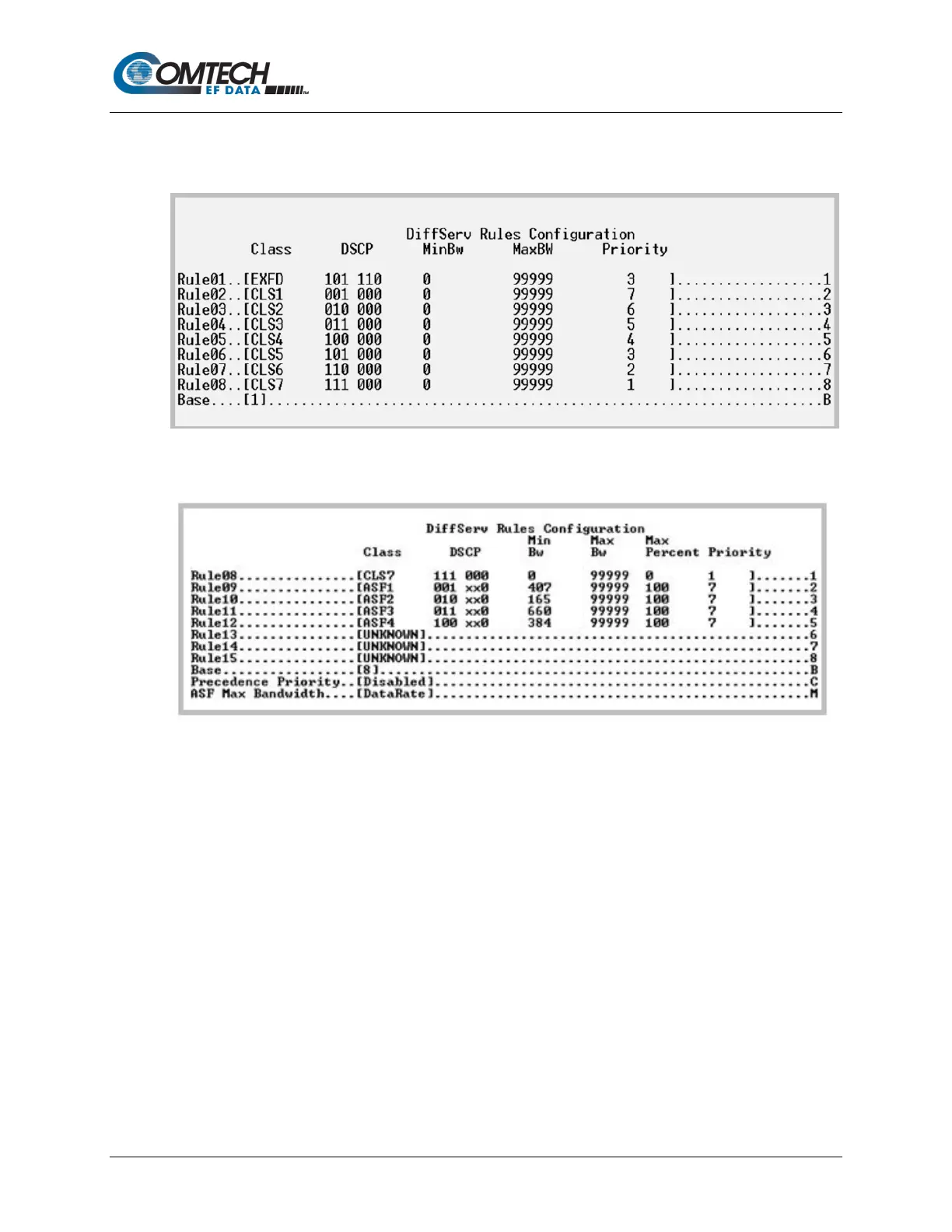

Figure 9-19. DiffServ Rules Configuration
Figure 9-20. Assured Forwarding Rules
In DiffServ Mode, the Packet Processor prioritizes all traffic by the DSCP value contained within
the IP header of each packet. All packets that do not have a DSCP value are placed in the
Default Queue and have a Priority of 9 (Figure 9-19).
Configuration of DiffServ Rules is allowed only for Assured Forwarding Classes 1-4 (Rule 9-12),
where a Minimum and Maximum Bandwidth can be assigned. Use Base 8 to modify the Assured
Forwarding Rules (AFD)(Figure 9-20).
