7.4.3.4.6 Status | Graph Pages
The Graph pages provide you with real-time visual monitoring of modem signal operation. Click
the Constellation or Spectrum tab to continue.
7.4.3.4.6.1 Status | Graph | Constellation
(TOP) Constellation Graph “PICK A COLOR” = (RED)
(BOTTOM) Constellation Graph “PICK A COLOR” = (GREEN)
(Banner, Menu Bar not shown)

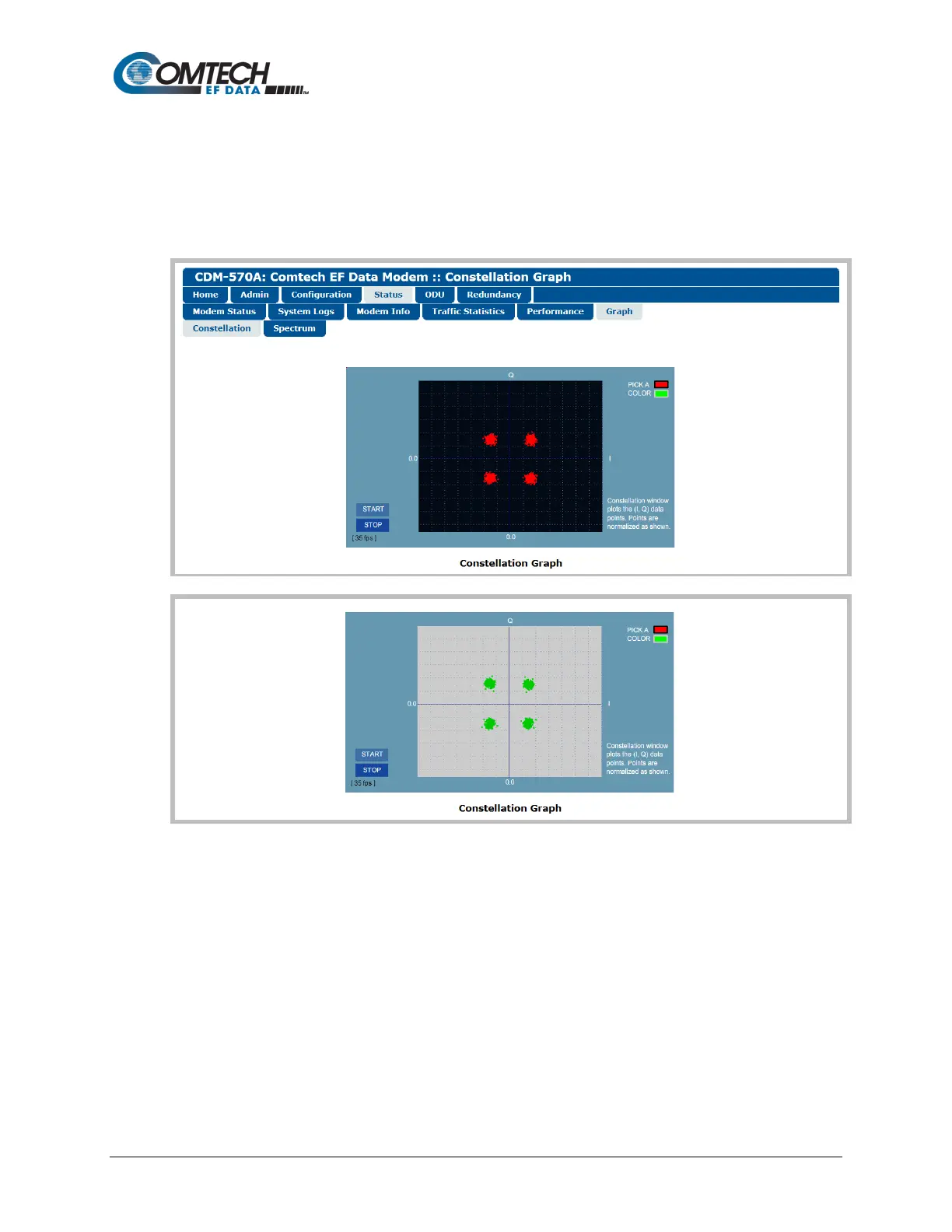

Figure 7-47. Status | Graph | Constellation Page
Use this page to display the real-time Ethernet Rx IQ constellation monitor:
• First, configure the graph appearance in the upper right-hand side (“PICK A COLOR”).
Click the red box to display a red constellation pattern on a black/gray grid. Click the
green box to display a green constellation pattern on a gray/blue grid.
• Then, click [START] to activate or [STOP] to pause the Constellation monitoring
function.
