CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Introduction 1–5 MN-CDM570A

1.2.2 Dimensional Envelope

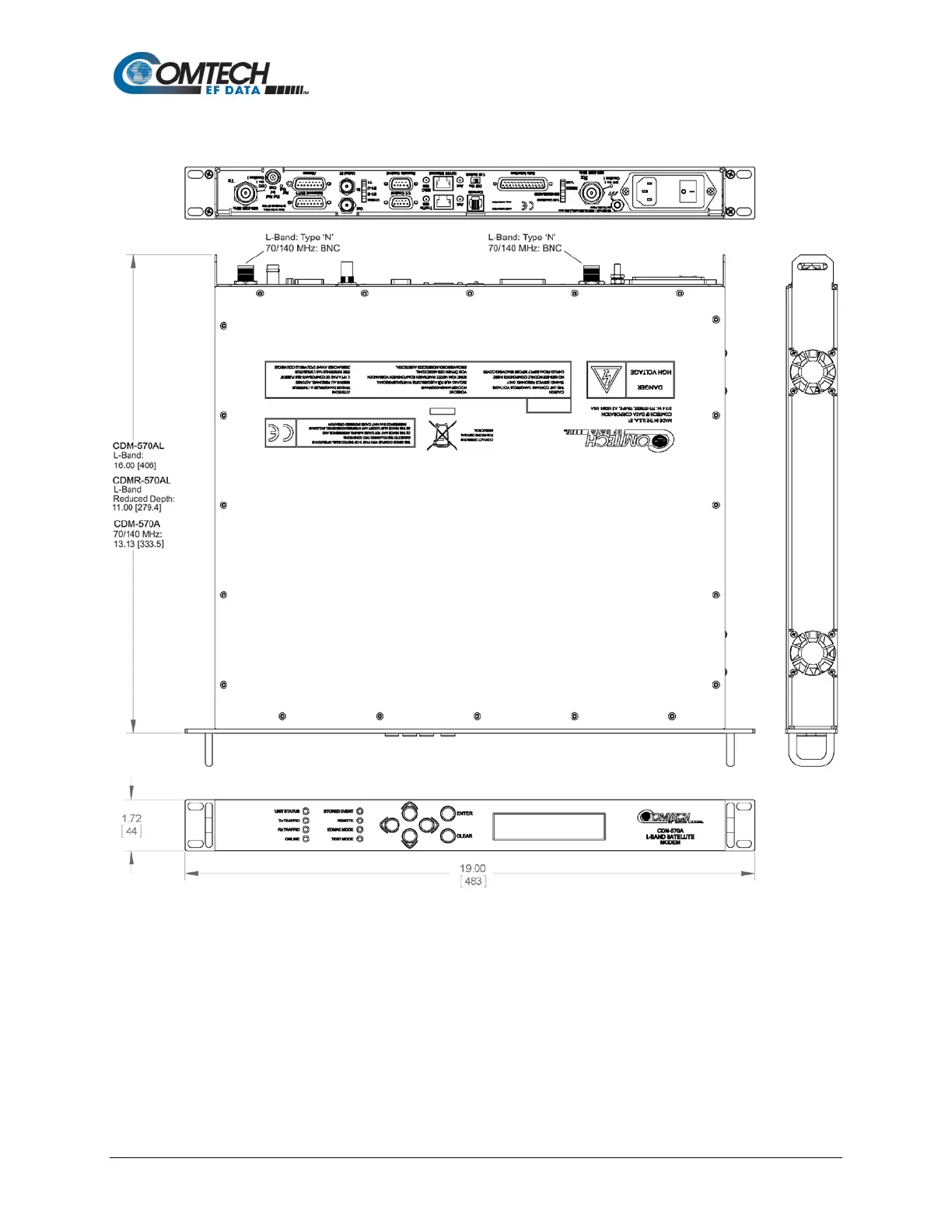

Figure 1-2. Modem Dimensional Envelope (Shown w/Optional Packet Processor)
