CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–65 MN-CDM570A

7.4.3.4.3 Status | Modem Info

This page displays read-only information about the currently configured modem:

• General Information

• Equipment ID

• Scrollable windows listing Options – Installed and the available Options – Not

Installed.

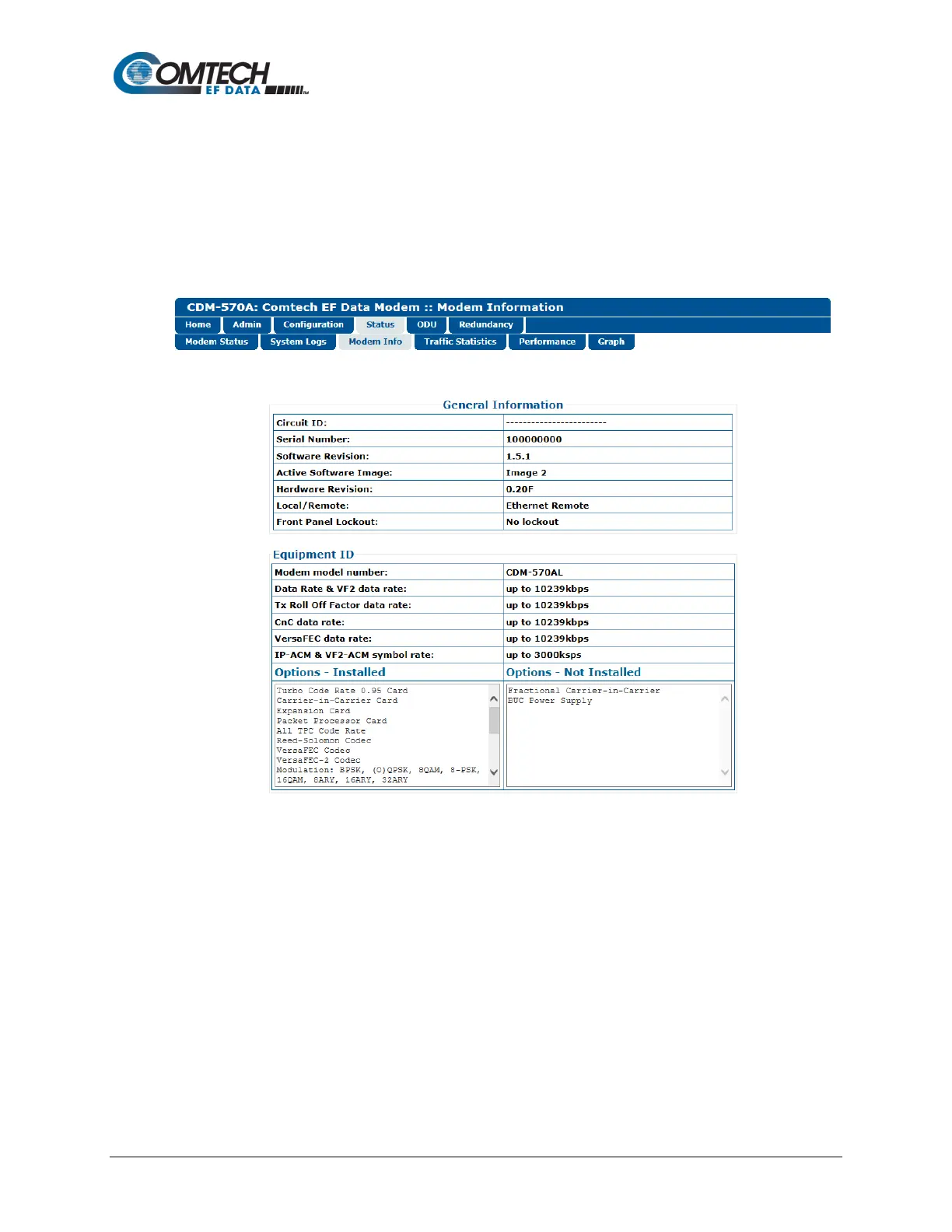

Figure 7-37. Status | Modem Info Page
