7.4.3.4.4 Status | Traffic Statistics Pages

These pages are available only when the optional Packet Processor is INSTALLED. Click the

Ethernet, Router, WAN, Compression, QoS, or Clear Counter tab to continue.

7.4.3.4.4.1 Status | Traffic Statistics | Ethernet

Use this page to review the cumulative Transmit/Receive Statistics, Performance, and Errors for

the active Ethernet ports.

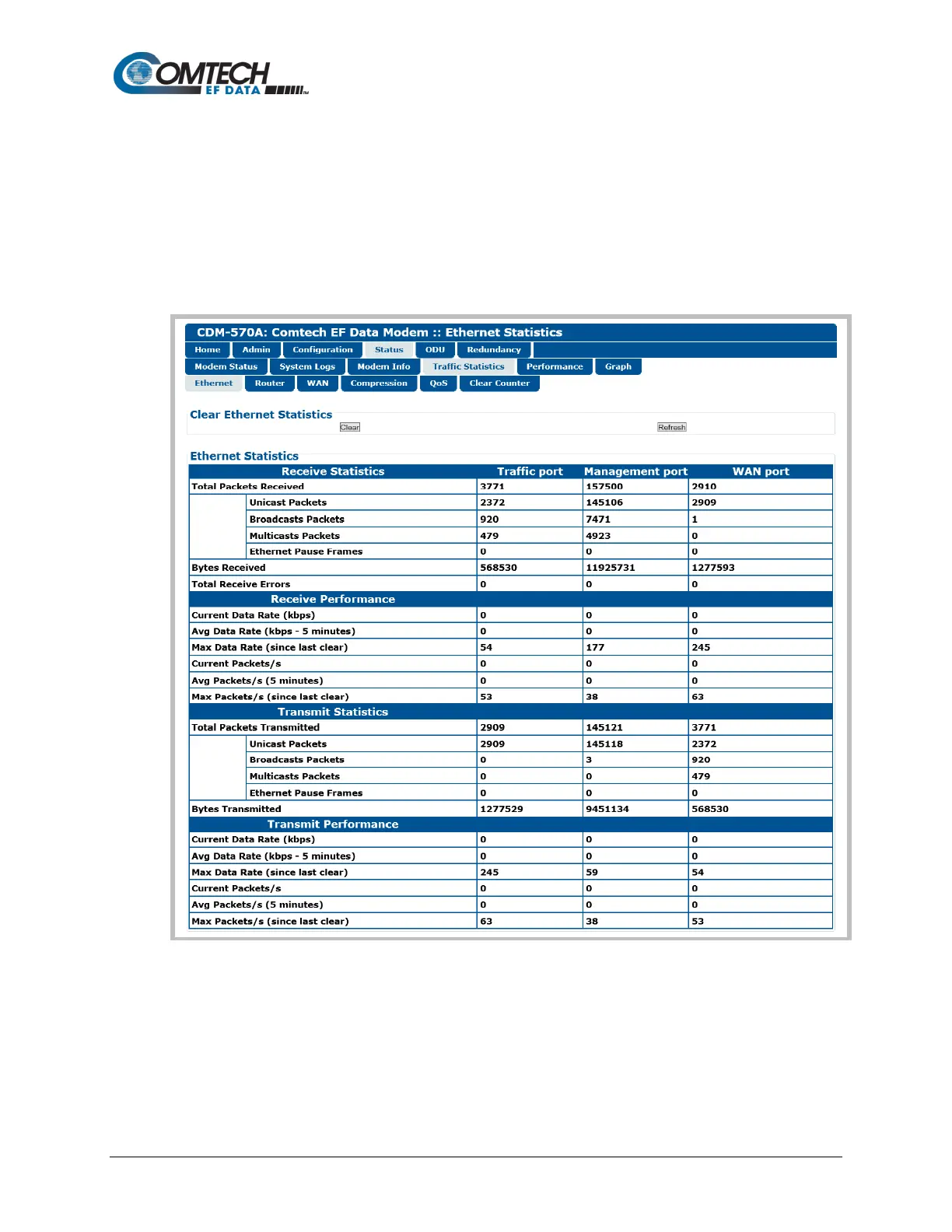

Figure 7-38. Status | Traffic Statistics | Ethernet Page (upper section)
