CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

Ethernet-based Remote Product Management 7–67 MN-CDM570A

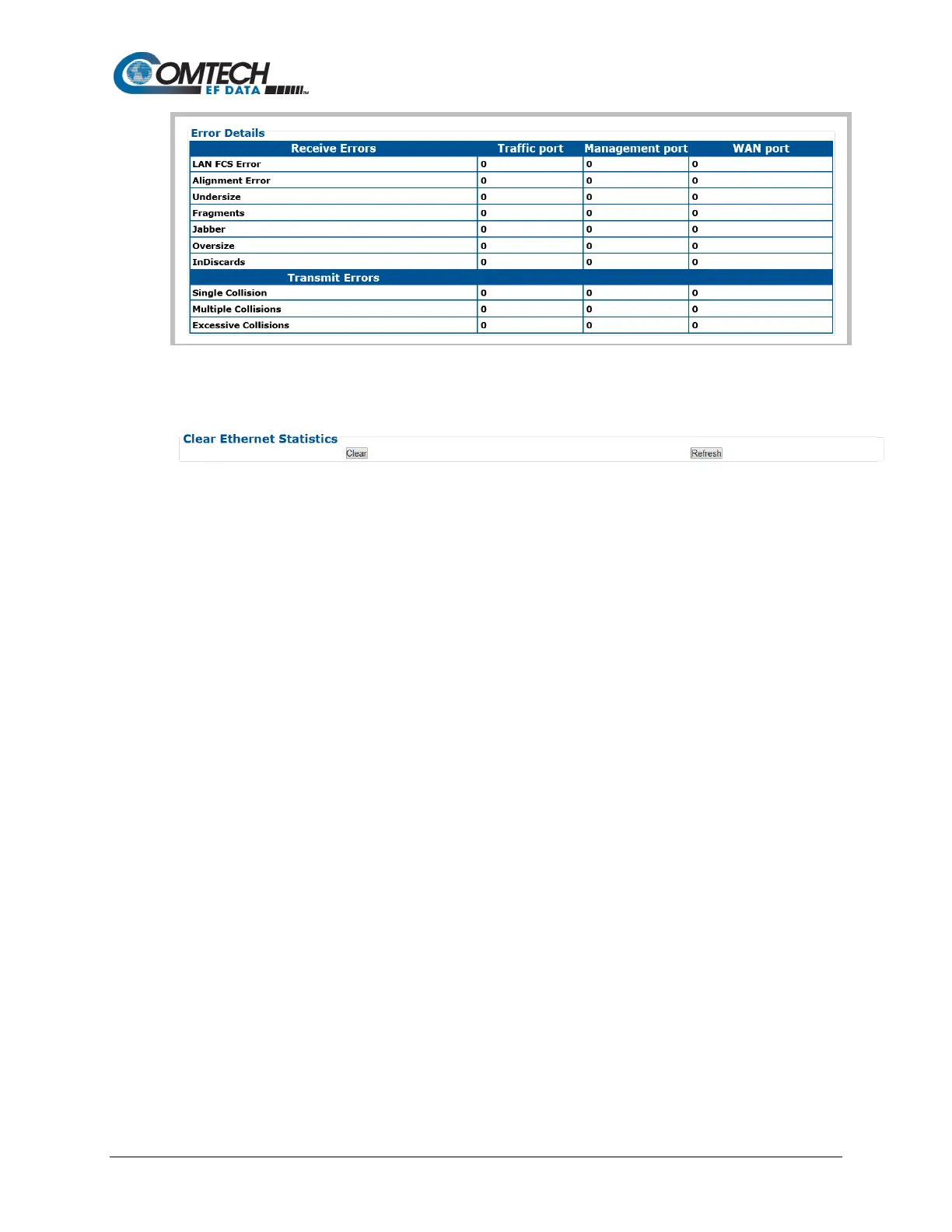

Figure 7-39. Status | Traffic Statistics | Ethernet Page (lower section)

Clear Ethernet Statistics

Click [Clear] to erase all existing information and reset the statistics compilation buffer.

Otherwise, click [Refresh] to update the page with the latest polled data.
