Optional Packet Processor - Serial/Telnet CLI Operation 9–69 MN-CDM570A
9.3.10.2.1 Operations and Maintenance > Statistics Menu> IP Statistics
Open the nested Statistics for IP Routing/EasyConnect page from the Statistics page. This page
displays counts of the number of packets routed in the Packet Processor.

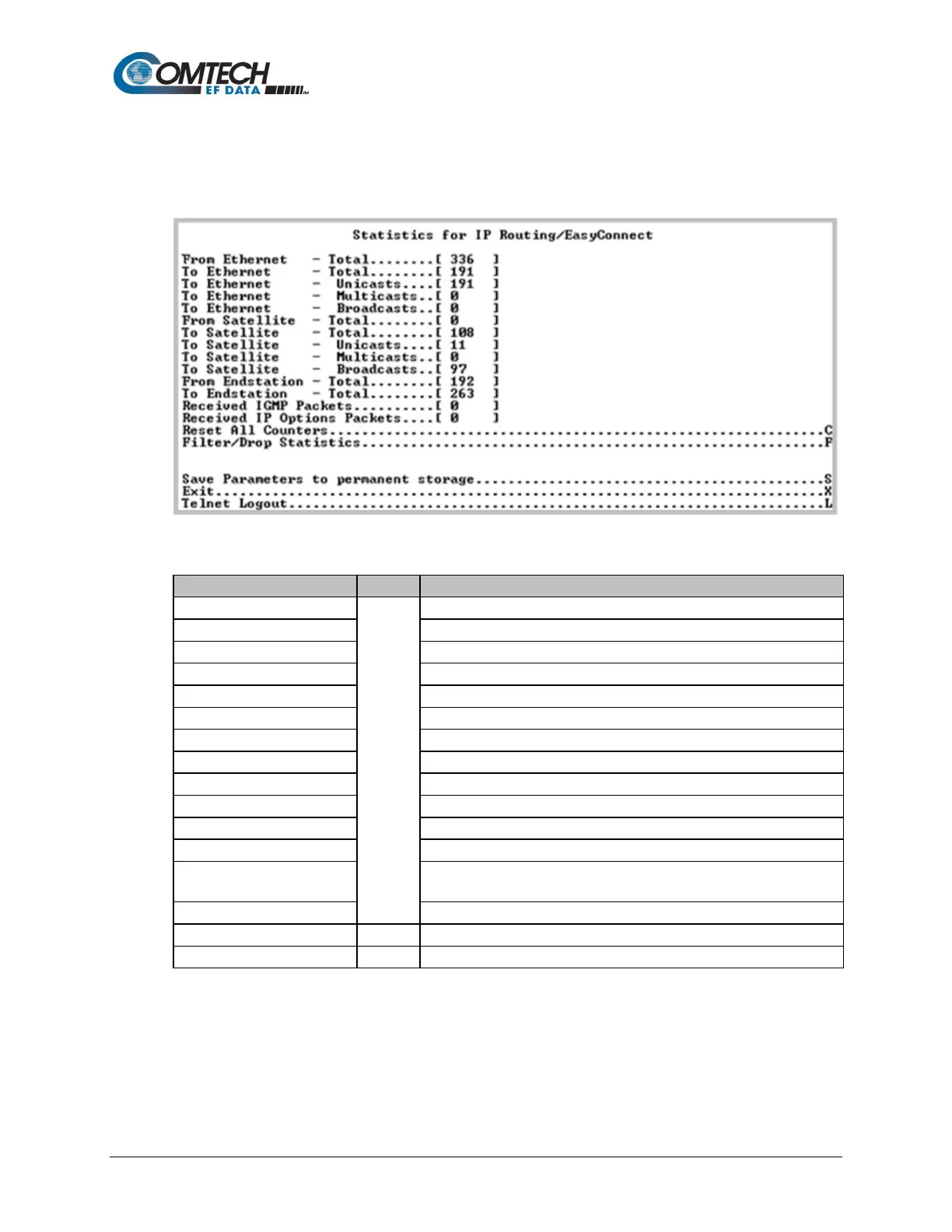

Figure 9-53. IP Routing Statistics
Selection
Hot Key
Description
From Ethernet – Total
[RO]
Ethernet Statistics Page, Rx Good Frames
To Ethernet – Total
Ethernet Statistics Page, Tx Good Frames
To Ethernet – Unicasts
Unicast packets to LAN
To Ethernet – Multicasts
Multicast packets to LAN
To Ethernet – Broadcasts
Broadcast packets to LAN
From Satellite – Total
WAN Statistics Page, Rx HDLC Packet Count
To Satellite – Total
WAN Statistics Page, Tx HDLC Packet Count
To Satellite – Unicasts
Unicast packets to WAN
To Satellite – Multicasts
Multicast packets to WAN
To Satellite – Broadcasts
Broadcast packets to WAN
From Endstation – Total
Packets sent from Packet Processor
To Endstation – Total
Packets directed to Packet Processor
Received IGMP Packets
Internet Group Management Packets received (used for management of
Multicast traffic).
Received IP Options Packets
Number of IP Options packets received.
Reset All Counters
C
Clears and resets all WAN, Ethernet and IP Routing statistics.
Filter/Drop Statistics
F
Displays the Filter Statistics page.
