ODU (Transceiver, BUC, LNB) Operation 10–37 MN-CDM570A
10.3 BUC and LNB M&C via the CDM/R-570AL (L-Band) Satellite Modem
10.3.1 BUC and LNB M&C via the CDM/R-570AL Front Panel
Chapter 6. FRONT PANEL OPERATION
The ODU menu branch is accessible from the CDM/R-570AL front panel menu
only when the presence of an ODU is detected.

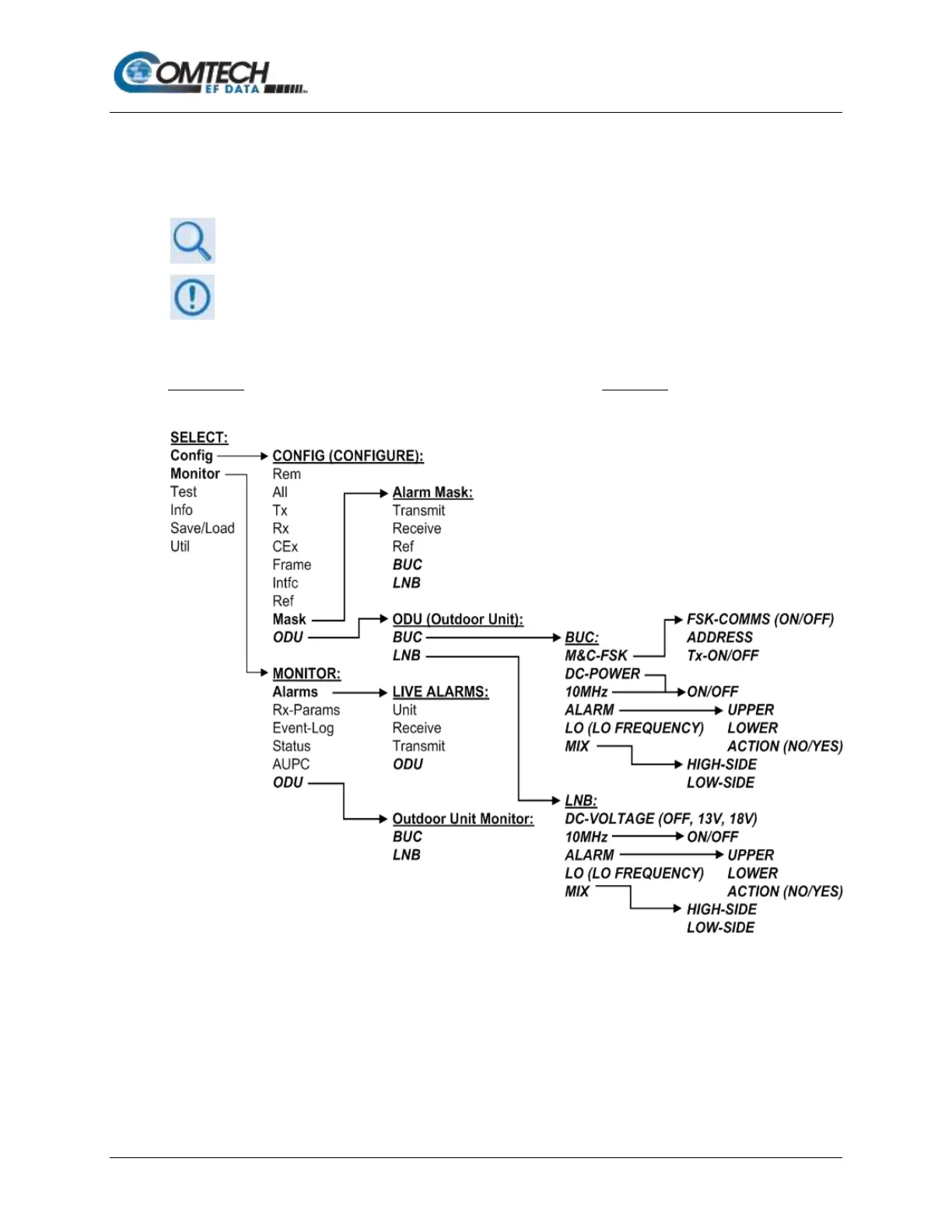

Figure 10-13 identifies the CDM/R-570AL front panel menu hierarchies allocated to the
configuration, monitor and control of a BUC or LNB. More specifically, menu branches that
incorporate ODU operations are shown in bold; menu branches dedicated to ODU operations is
additionally italicized.
Figure 10-13. CDM/R-570AL Menu Tree – ODU Operation
