CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
ODU (Transceiver, BUC, LNB) Operation 10–31 MN-CDM570A
ODU Selection
If redundant ODUs are used, the CSAT-5060 ‘ODU | Status’ page can toggle between the Online
and Offline units. Use the drop-down list to select CSAT #1 or CSAT #2, and then click [Select
ODU].
The page displays the current active unit in the right-hand side of the ODU Selection page
section.
10.2.2.1.3.2 ODU | Status (KST-2000A/B)

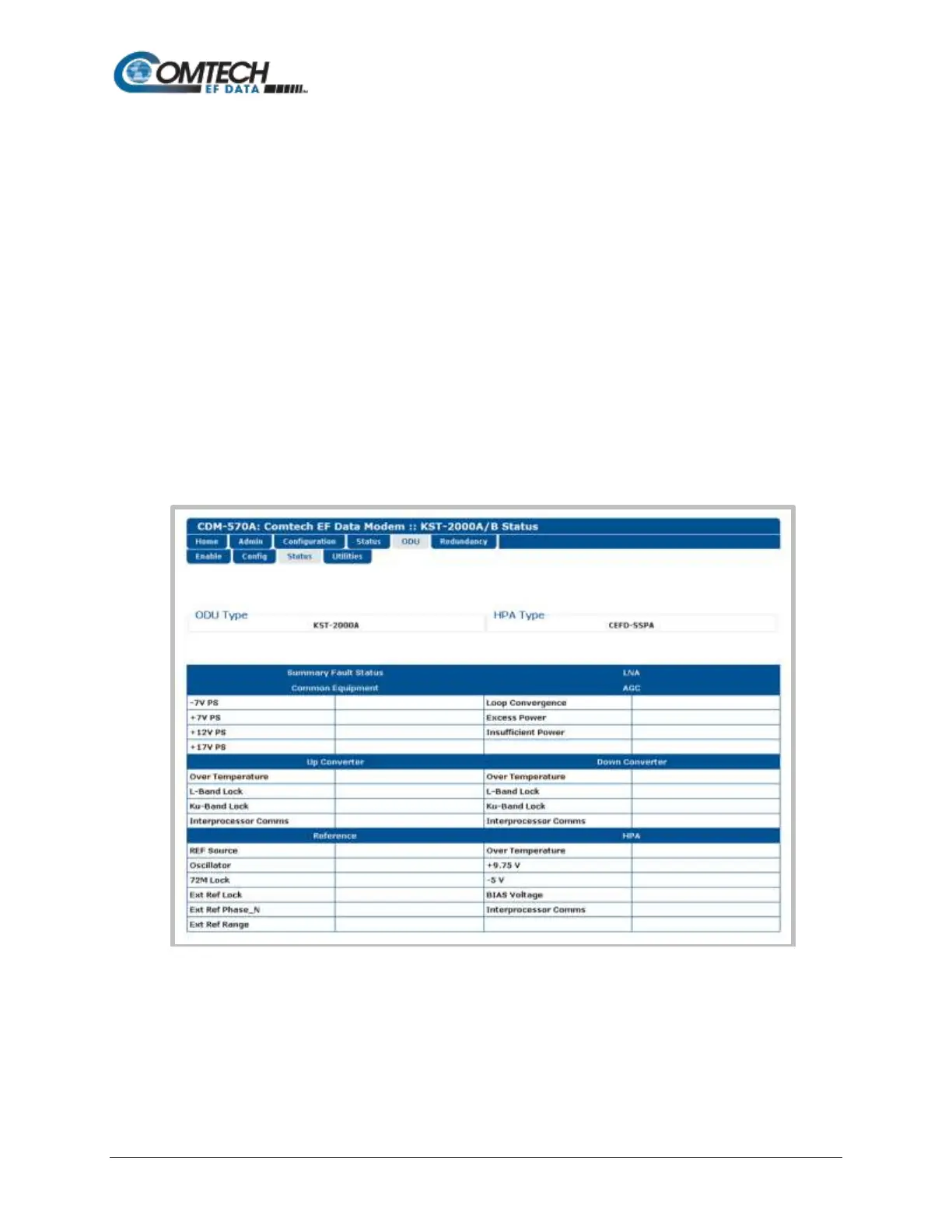

Figure 10-10 shows the ‘ODU | Status’ page as it appears with the KST-2000A/B configured as
the ODU. The message bar at top identifies the ODU Type and HPA Type (in this example,
KST-2000A and CEFD-SSPA, respectively).
Use this page to review read-only status information that summarizes the fault status of the
KST-2000A/B configuration:
 Common Equipment
 AGC
 Up Converter
 Reference
 HPA
 Down Converter
Figure 10-10. ODU | Status Page (KST-2000A/B)
