CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
Rear Panel Connectors and Pinouts 3–8 MN-CDM570A

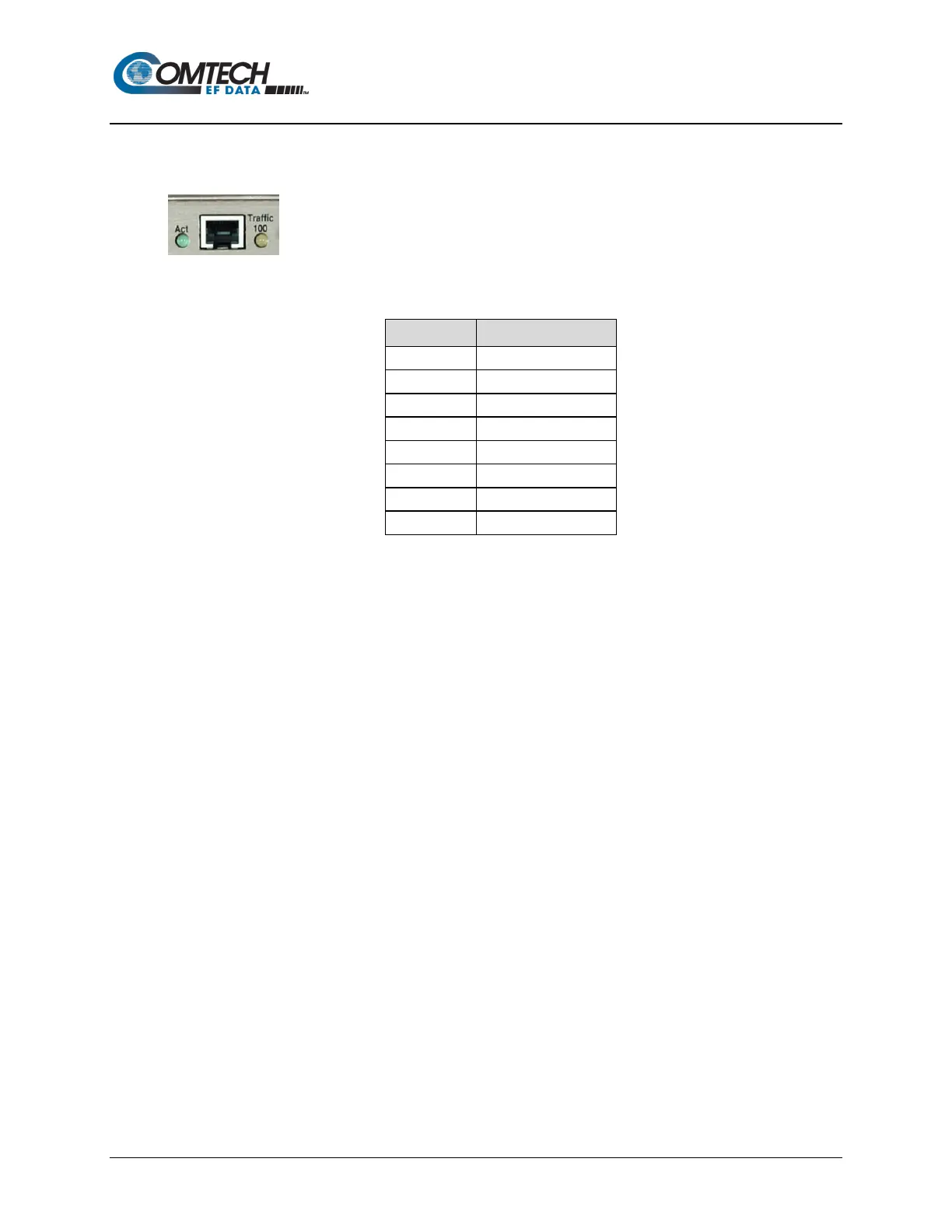

3.2.2.2 10/100 Ethernet | Traffic 100 Port, RJ-45 (w/Optional Packet
Processor only)
This 8-pin RJ-45 modular port is present only if the optional High-Performance
Packet Processor is installed. Use a CAT5 cable to connect this port to an
Ethernet hub, router, switch, PC, etc. for Ethernet data traffic, M&C of base
modem and Packet Processor functions via Telnet/HTTP/ SNMP, and to
update the Packet Processor firmware.
Table 3-3. Typical Ethernet Port Pin Assignments
Pin #
Function
1
Tx+
2
Tx-
3
Rx+
4
N/C
5
N/C
6
Rx-
7
N/C
8
N/C
