Dedicated Management Port Feature Q–5 MN-CDM570A
Q.3.1 Managed Switch Mode – Local ONLY Mode

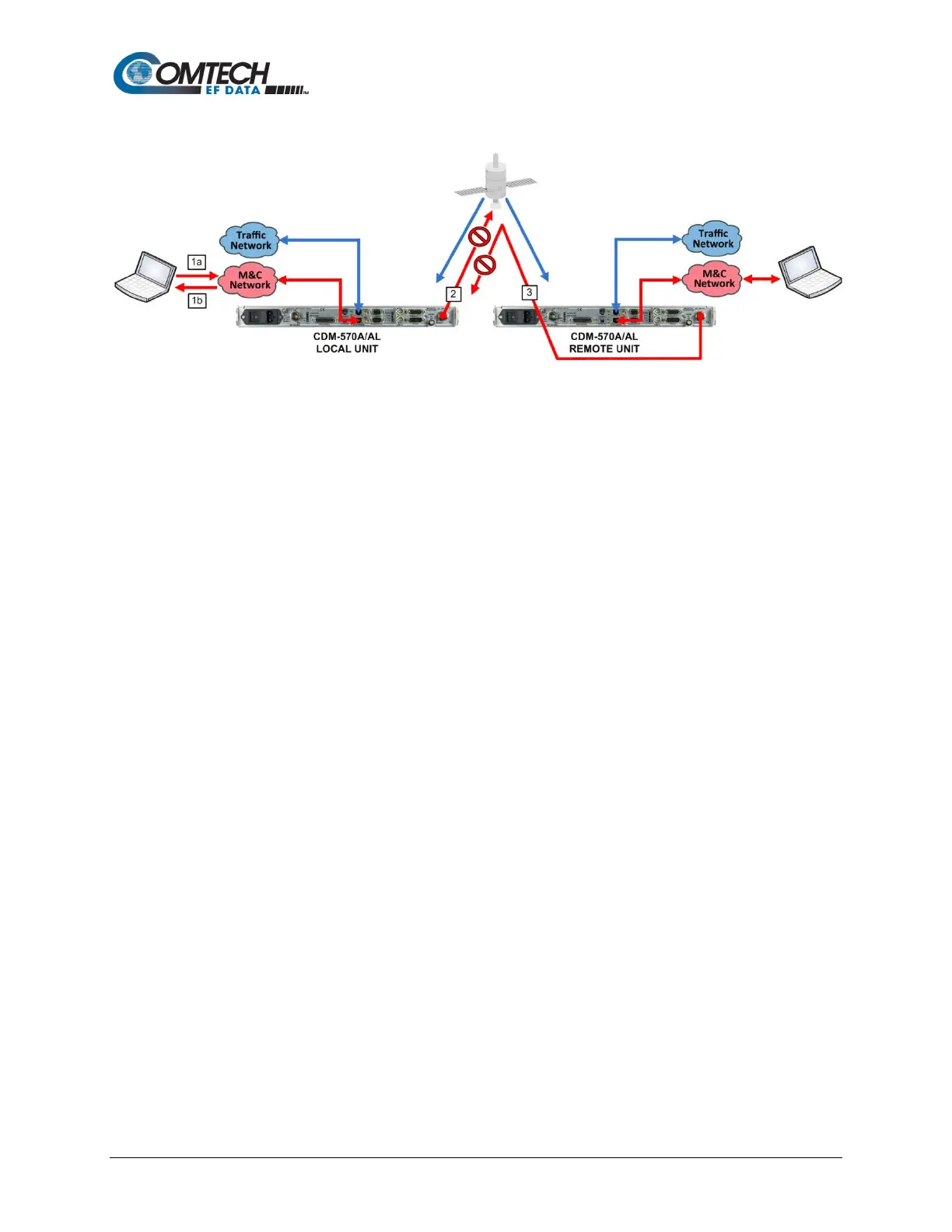

Figure Q-5. CDM-570A/570AL Operation – Local ONLY Mode
Local ONLY Mode limits modem M&C access only through the ‘10/100 Ethernet | M&C 100’
(Dedicated Management) port. It will not allow modem M&C access over the WAN interface (i.e.,
the ‘10/100 Ethernet | Traffic 100’ port).
As shown in Figure Q-5, Local ONLY Mode:
• Allows local modem M&C access only through the local modem’s ‘10/100 Ethernet |
M&C 100’ (Dedicated Management) port:
o 1a. Dedicated Management permits User PC M&C access to the local modem
‘10/100 Ethernet | M&C 100’ port.
o 1b. The local modem accepts M&C communication from the User PC and responds
accordingly.
• Does not allow M&C access to the local modem through the ‘10/100 Ethernet | Traffic
100’ port.
• Does not allow M&C access to the distant-end modem over the WAN:
o 2. Packets transmitted via Dedicated Management Port to the distant-end modem will
be dropped by the local modem.
• Does not allow M&C access to the local modem from the distant-end modem, whether or
not either modem is in Dedicated Management mode:
o 3. Packets received, by the local modem (intended for local modem M&C access),
from the distant-end modem will be dropped.
