CDM-570A/570AL Satellite Modem with Optional Packet Processor

Revision 5

DoubleTalk Carrier-in-Carrier Option G–6 MN-CDM570A

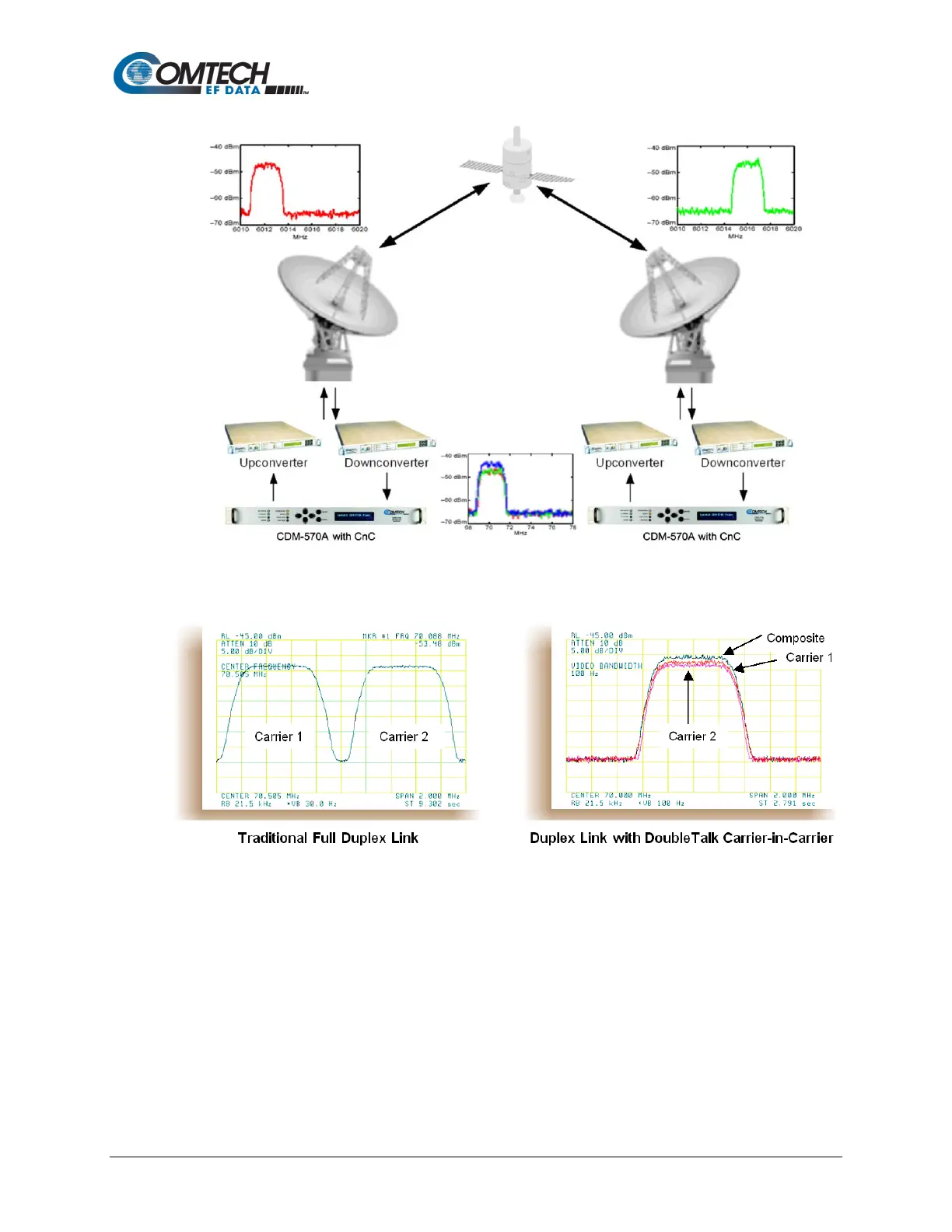

Figure G-3. Same Link Using CDM-570A with DoubleTalk

Carrier-in-Carrier

Figure G-4. Duplex Link Optimization

The CDM-570A/AL CnC module operates on the near-zero signal before the demodulator, and is

waveform agnostic. This means that no prior knowledge of the underlying modulation, FEC, or

any other waveform specific parameter is required in order to perform the signal suppression

operation. The only caveat to this is that the waveform must be sufficiently random.
