CDM-570A/570A Satellite Modem with Optional Packet Processor

Revision 5

Dedicated Management Port Feature Q–3 MN-CDM570A

a. If you are in Managed Switch Mode, press ‘2’ to enable Dedicated Management Port

in Local ONLY Mode, or ‘3’ to enable Dedicated Management Port in Local &

Remote Mode.

b. If you are in Router Mode, press ‘2’ to enable Dedicated Management Port operation.

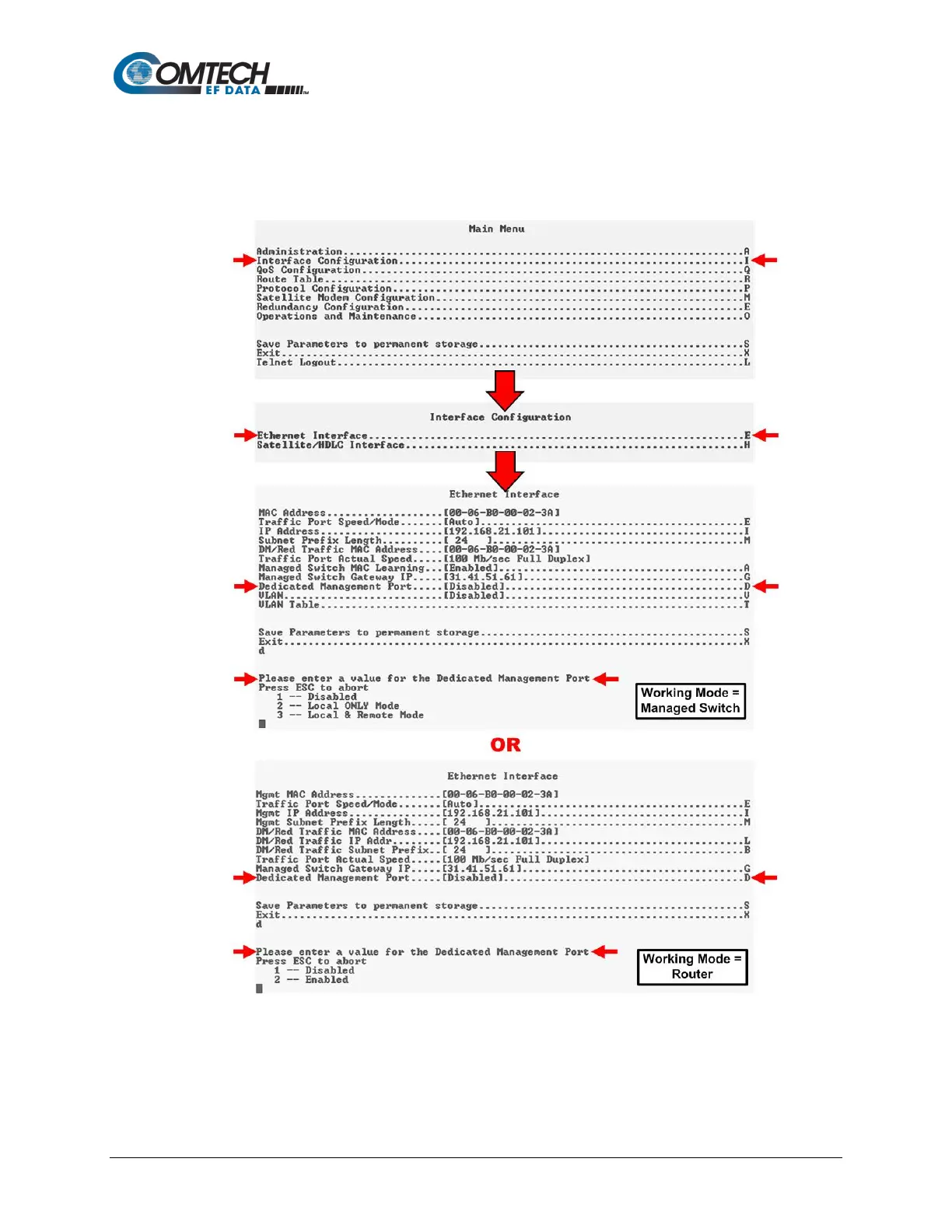

Figure Q-3. CDM-570A/570AL Dedicated Management Port Configuration
