Comtech EF Data CDM-760 - Configure Hyperterminal for Telnet Remote Control Operation

Ethernet Interface Operation Revision 4
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
7–5
7.3.1.1 Configure HyperTerminal for Telnet Remote Control Operation

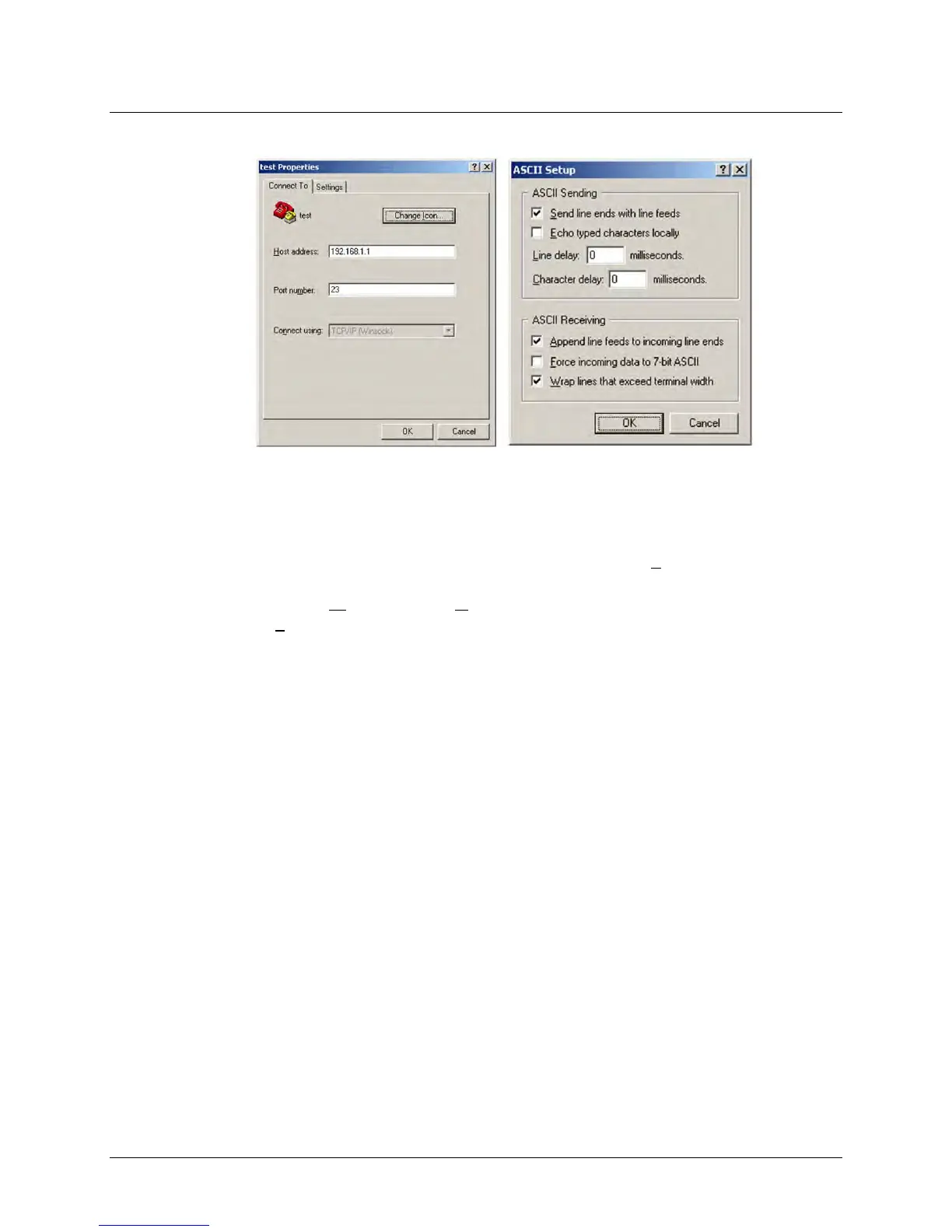

Figure 7-3. Configure HyperTerminal
See Figure 7-3. Do these steps:
1. Make sure to define the Connect To Telnet connection properties correctly (File 
Properties) (
Figure 7-3, left):
a. Enter the CDM-760’s Traffic/Management IP Address as the “Host address” (e.g.,
192.168.1.1).
b. Enter TCP Port 23 as the “Port number”.
c. Set “Connect using” to TCP/IP (Winsock) instead of COM1 or COM2.
d. Click [OK] to save your settings.
2. For ASCII Setup (File  Properties  Settings  ASCII Setup) (Figure 7-3, right):
a. Check the “Send line ends with line feeds” option in the ‘ASCII Sending’ section.
b. Check the “Append line feeds to incoming line ends” option in the ‘ASCII Receiving’
section.
c. Click [OK] to save your settings.
