7.4.4.3.5.1.1 Configuration | WAN | QoS Page – Max/Priority, Min/Max

Modes

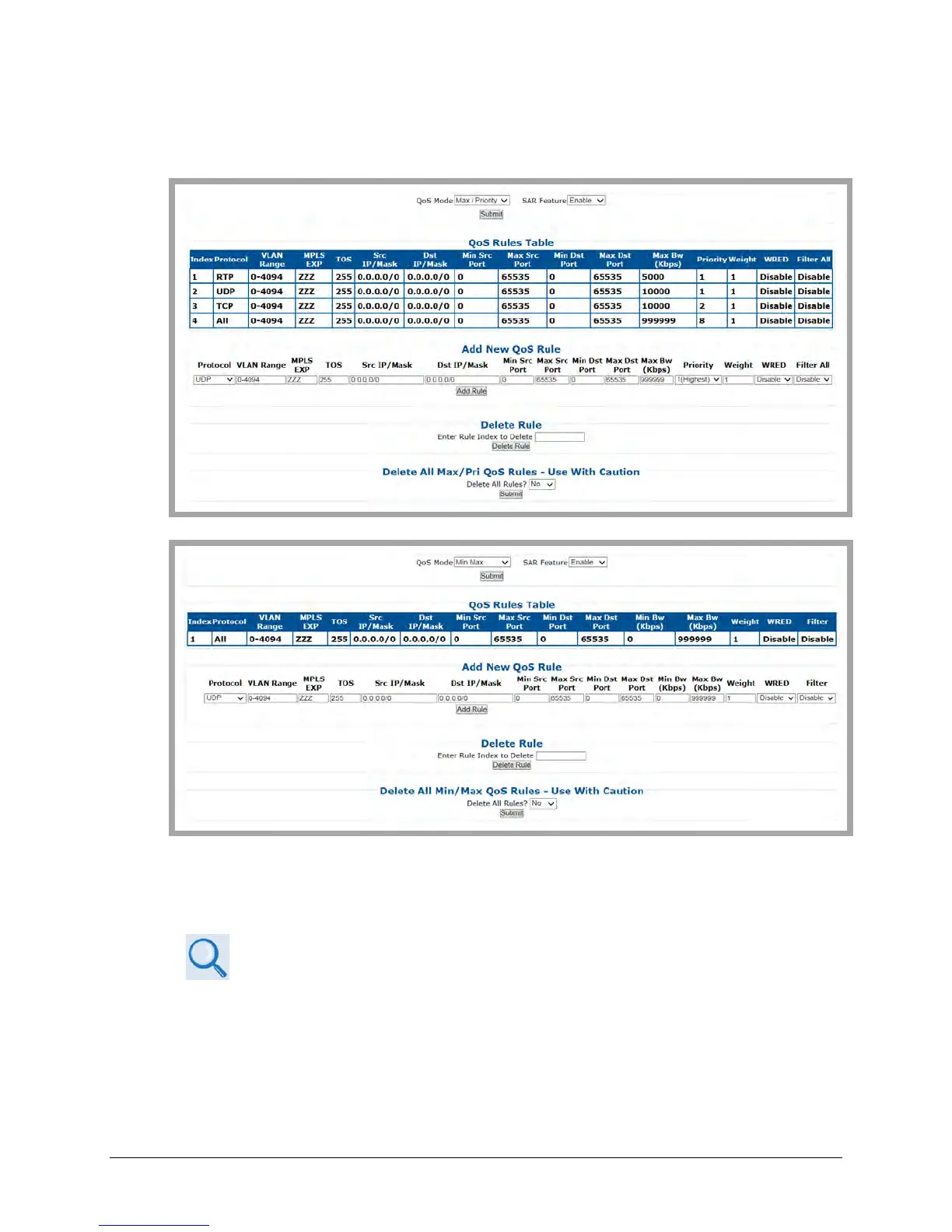

(TOP) QoS Mode = Max/Priority (Banner and Menu Bar not shown)

(BOTTOM) QoS Mode = Min/Max (Banner and Menu Bar not shown)

Figure 7-18. Configuration | WAN | QoS Page (Max/Priority, Min/Max Modes)

See Sect. 7.4.4.3.5.1 for information about the QoS Mode and SAR functions.
