Ethernet Interface Operation Revision 4
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
7–49
7.4.4.4 Status Pages
The Status pages provide you with status, event logging, and operational statistics windows.
Click the Status navigation tab, and then select the Status, Logs, Info, Firmware, ACM, Traffic
Statistics, BB Statistics, or Performance tab to continue.
7.4.4.4.1 Status | Status
Use this read-only page to review and monitor information pertaining to:
• Alarms Status – Click a hyperlink to view a popup window containing detailed information
about the most recent logged Unit, Tx, or Rx fault/alarm.
• Rx Parameters
• ACM Status
• CnC (Carrier-in-Carrier) information (including Fractional CnC Counters)
• Demo Mode and Fractional CnC Timers
• General Operating Status (including Redundancy connection and Unit Temperature)

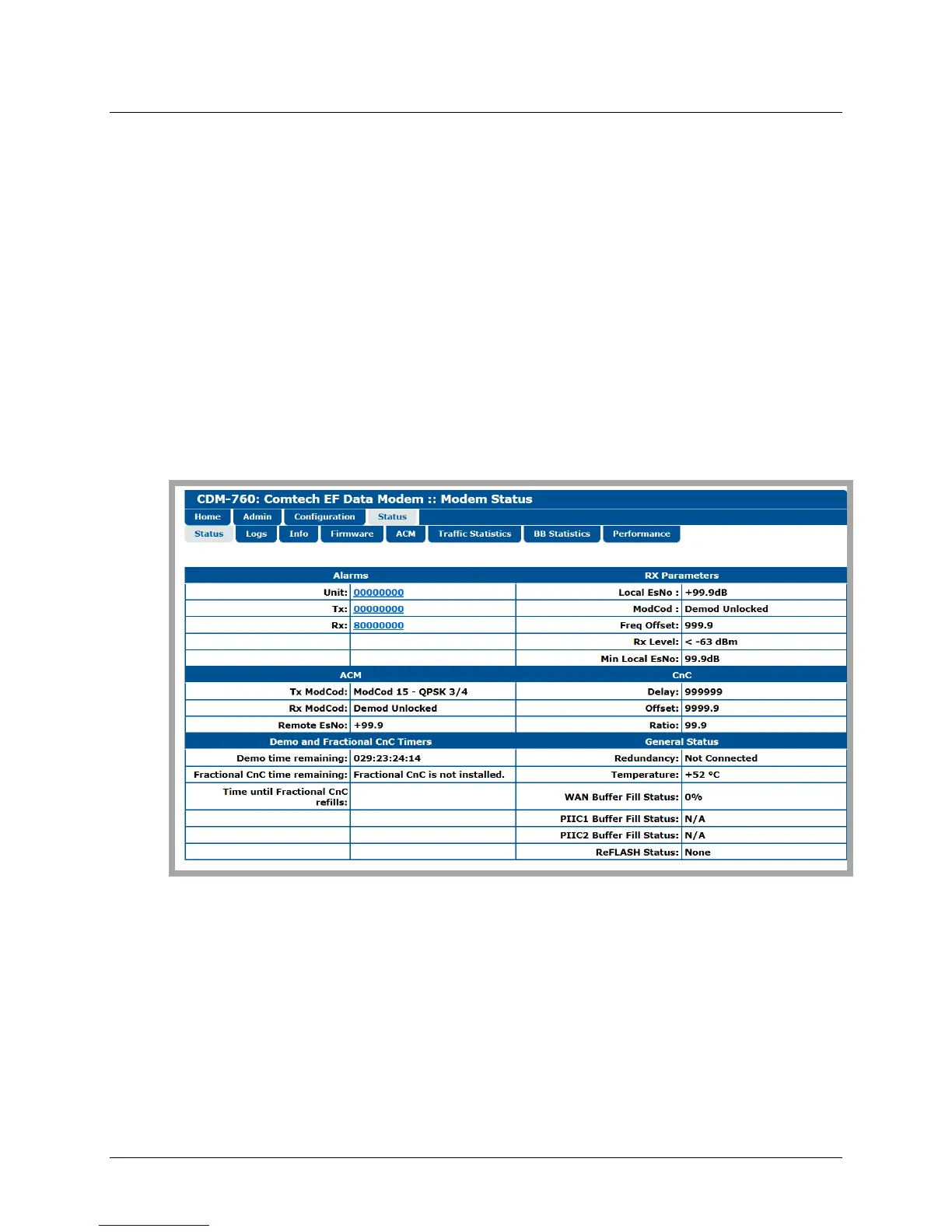

Figure 7-28. Status | Status Page
