Ethernet Interface Operation Revision 4
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
7–15
7.4.4.2.2 Admin | SNMP
The Administrator must use this page to manage the CDM-760 SNMP (Simple Network
Management Protocol) settings.

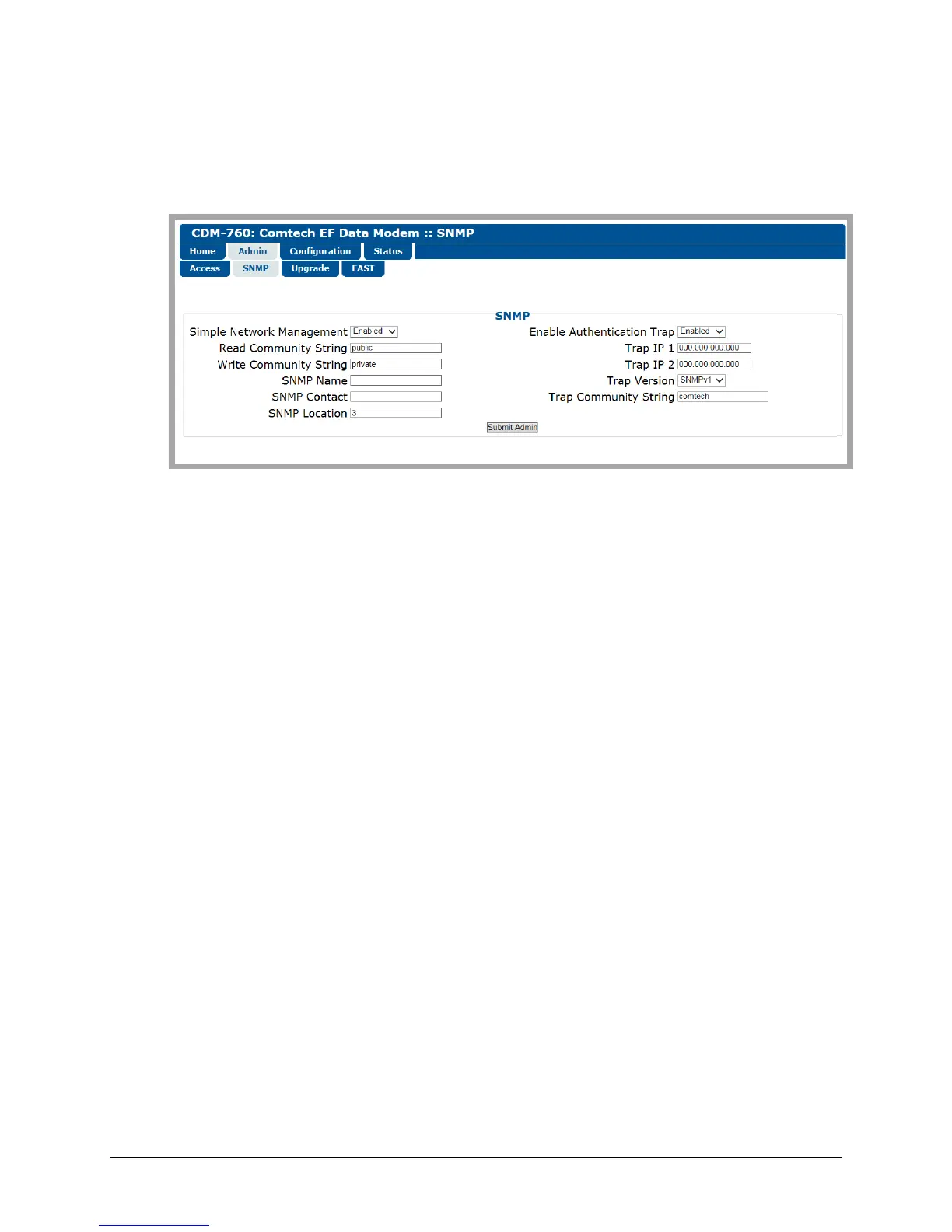

Figure 7-8. Admin | SNMP Page
SNMP
• Use the Simple Network Management drop-down list to select Enabled or Disabled.
• Enter a Read Community string. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Read Community string is public.
• Enter a Write Community string. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Write Community string is private.
• Enter an SNMP Contact, Name, and Location. Each string can be any combination of
characters and a length of 0 to 20 characters.
• Use the Enable Authentication Trap drop-down list to select Enabled or Disabled.
• Enter the Trap IP 1 and Trap IP 2 addresses, in the form XXX.XXX.XXX.XXX, for the computer
that is to receive the traps generated by the CDM-760.
• Use the Trap Version drop-down list to select SNMPv1 or SNMPv2.
• Enter a Trap Community String. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Write Community string is comtech.
Click [Submit Admin] to save.
