7.4.4.4.6.3 Status | Traffic Statistics | Packet Flows

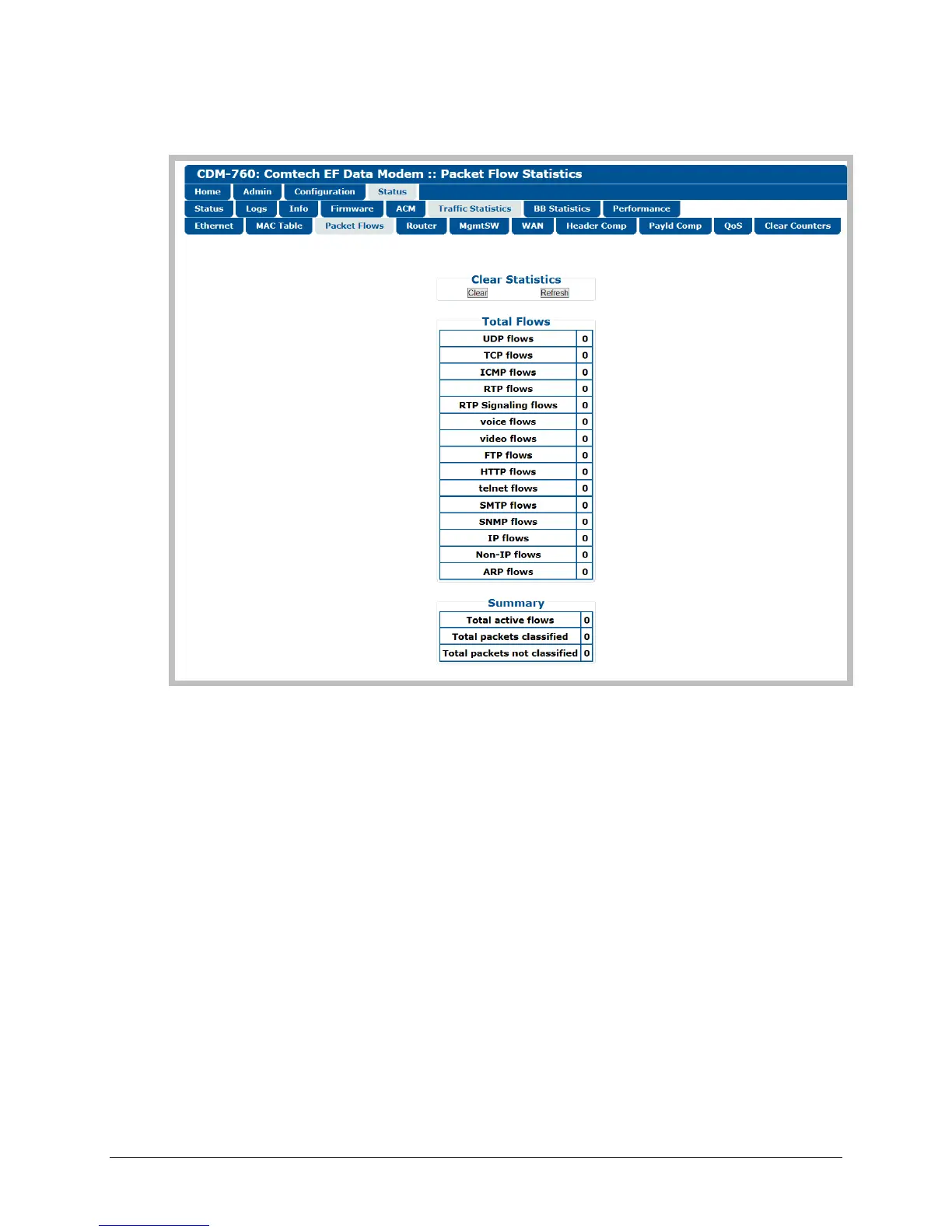

Figure 7-37. Status | Traffic Statistics | Packet Flows Page
Clear Statistics
• Click [Clear] to clear/reset the Packet Flows statistics buffers.
• Click [Refresh] to update the page with the latest available statistics.
Total Flows
This section displays the type and number of active flows the Packet Processor is currently
processing.
Summary
This section displays the total number of active flows and classified packets processed by the
Packet Processor to date.
Flows that cannot be classified are counted as “packets not classified.” Although “not classified”
they will still transmit over WAN with the default QoS queue.
