7.4.4.3.9 Configuration | LNB (Low Noise Block Down Converter)
This page is operational only when an optional LOW-NOISE BLOCK DOWN
CONVERTER is installed.
Use this page to configure Low-Noise Block Down Converter parameters. Set the desired LNB
configurations. Click [Submit LNB Controls] to save.

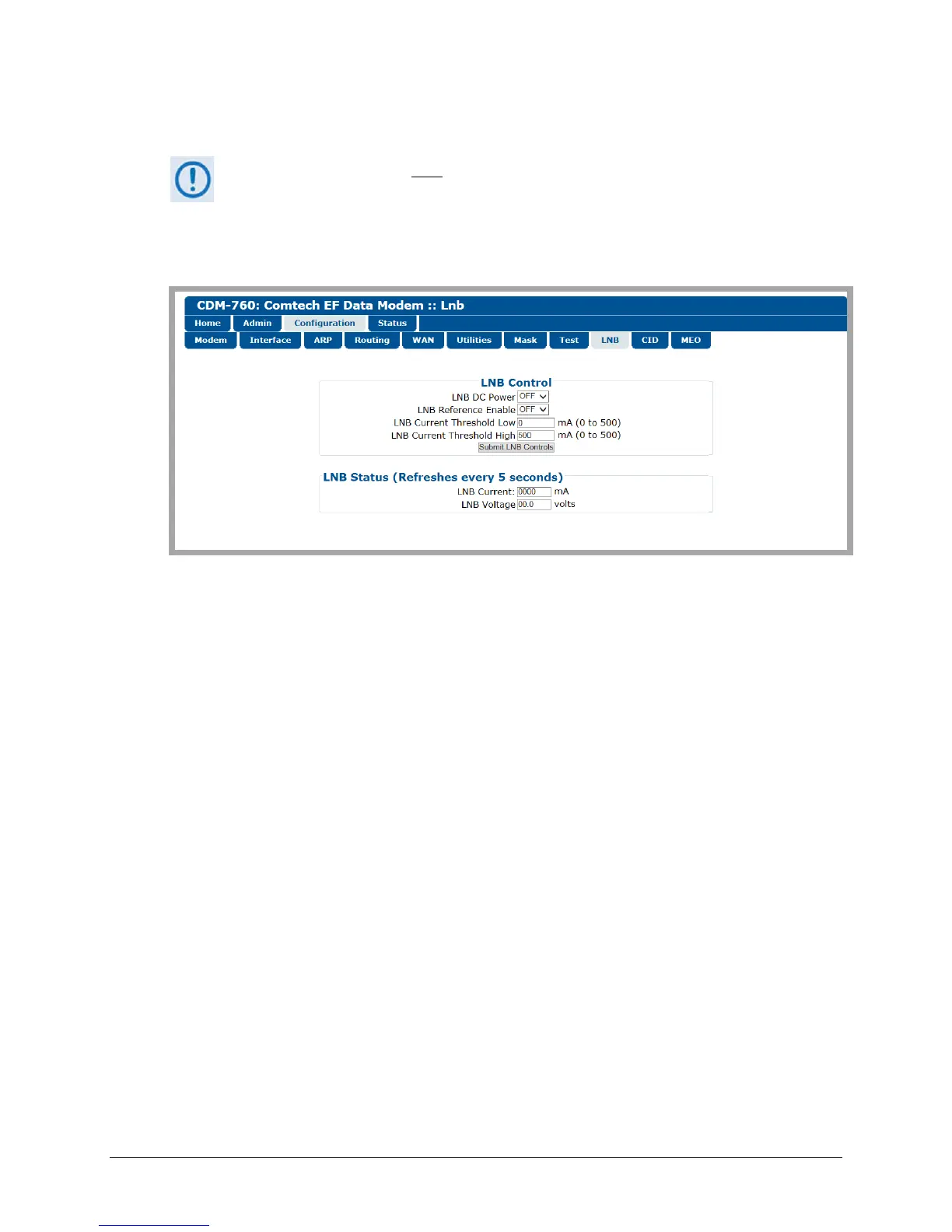

Figure 7-25. Configuration | LNB Page
LNB Control
• Use the LNB DC Power drop-down list to select OFF, 13V, 18V, or 24V.
• Use the LNB Reference Enable drop-down list to select ON or OFF.
• Enter LNB Current Threshold Low and LNB Current Threshold High values from 0 to 500
mA.
